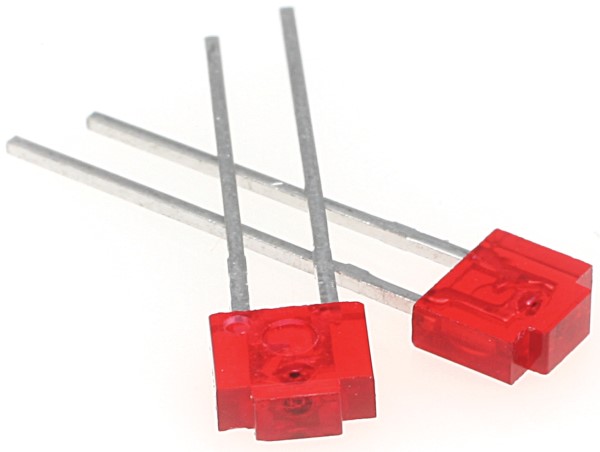

Infrared LED, 2.54mm, 1Element, 935nm
Infrared Emitter 935nm Rectangular Top Mount 2-Pin
Product Highlights
End-emitting plastic package
135 ° nominal beam angle
935 nm wavelength
Low profile for design flexibility
Mechanically and spectrally matched to SDP8407 phototransistor
得捷:
EMITTER IR 935NM 60MA RADIAL
艾睿:
LED IrLED 935nm 2-Pin
Verical:
Infrared Emitter 935nm Rectangular Top Mount 2-Pin
MASTER:
Infrared Emitter 935nm Rectangular Top Mount 2-Pin
Powell:
Sensors, Infrared Sensors, Emitter
Online Components:
Infrared Emitter 935nm Rectangular Top Mount 2-Pin
Electro Sonic:
Infrared Emitter 935nm Rectangular Top Mount 2-Pin
Win Source:
EMITTER IR 935NM 60MA RADIAL / Infrared IR Emitter 935nm 1.5V 60mA 135° Radial
正向电压 1.5 V
波长 935 nm
视角 135°
峰值波长 935 nm
耗散功率 100 mW
测试电流 20 mA
正向电流 60 mA
击穿电压 3 V
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 Radial
高度 4.2 mm
封装 Radial
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
