具有三态输出单总线缓冲器门 SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V. It has 1 channels per chip.
电源电压DC 5.00 V, 5.50 V max
输出接口数 1
通道数 1
针脚数 5
位数 1
传送延迟时间 4.00 ns
逻辑门个数 1
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5

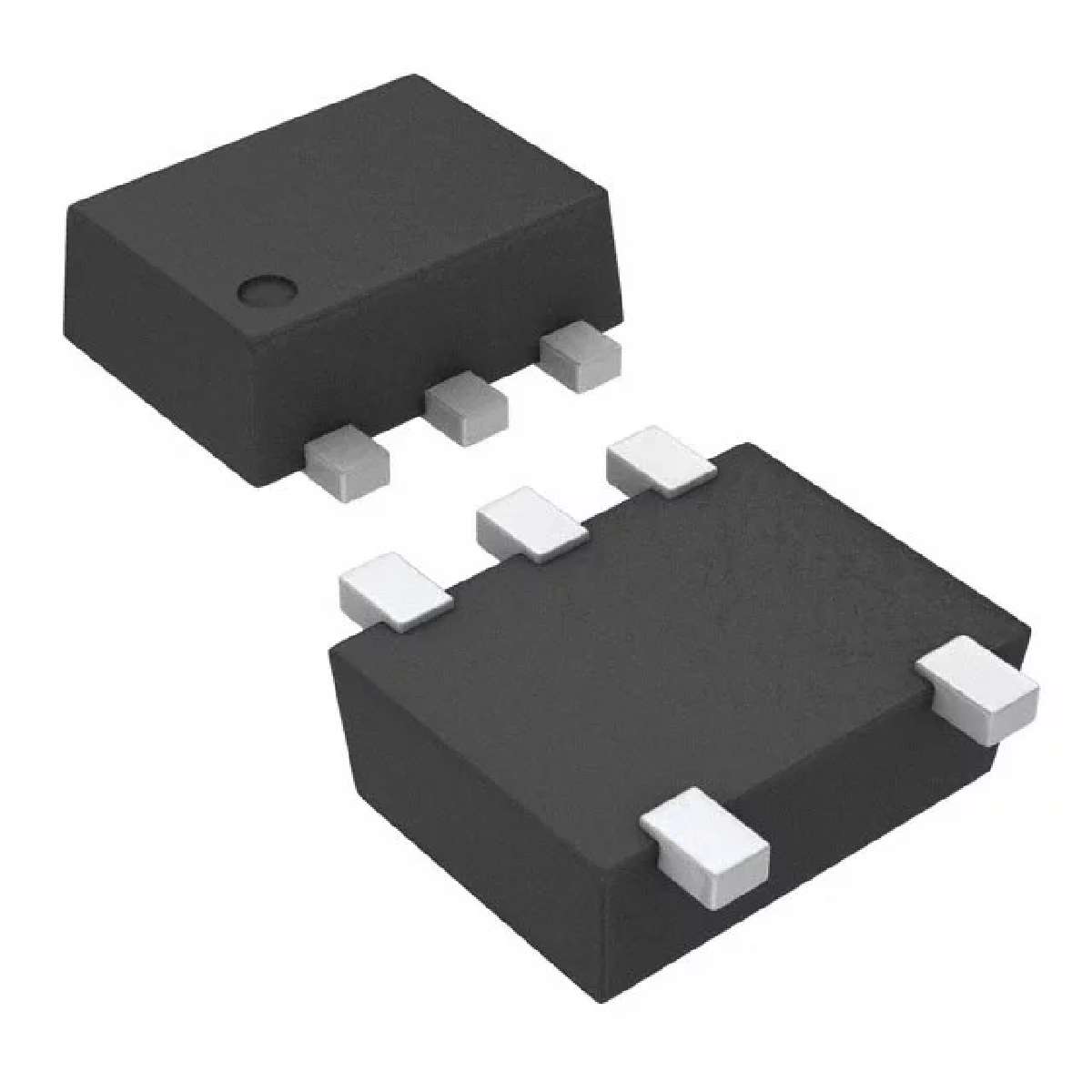

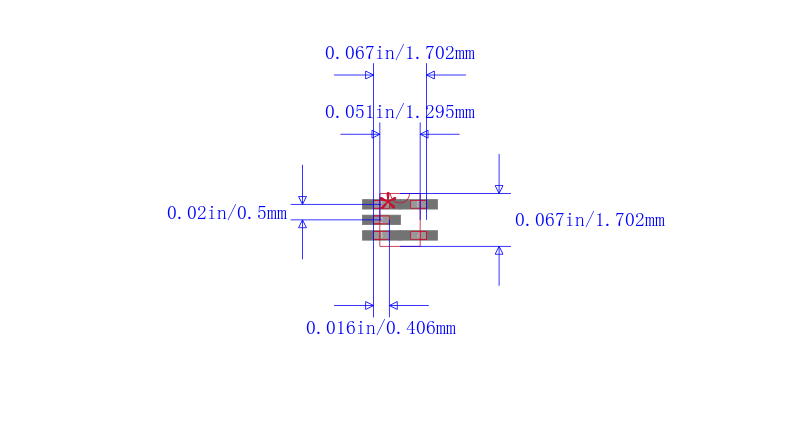

封装 SOT-553-5
高度 0.55 mm
封装 SOT-553-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G126DRLR TI 德州仪器 | 当前型号 | 当前型号 |
74LVC1G126DRLRG4 德州仪器 | 类似代替 | SN74LVC1G126DRLR和74LVC1G126DRLRG4的区别 |
NL17SZ126XV5T2G 安森美 | 功能相似 | SN74LVC1G126DRLR和NL17SZ126XV5T2G的区别 |
