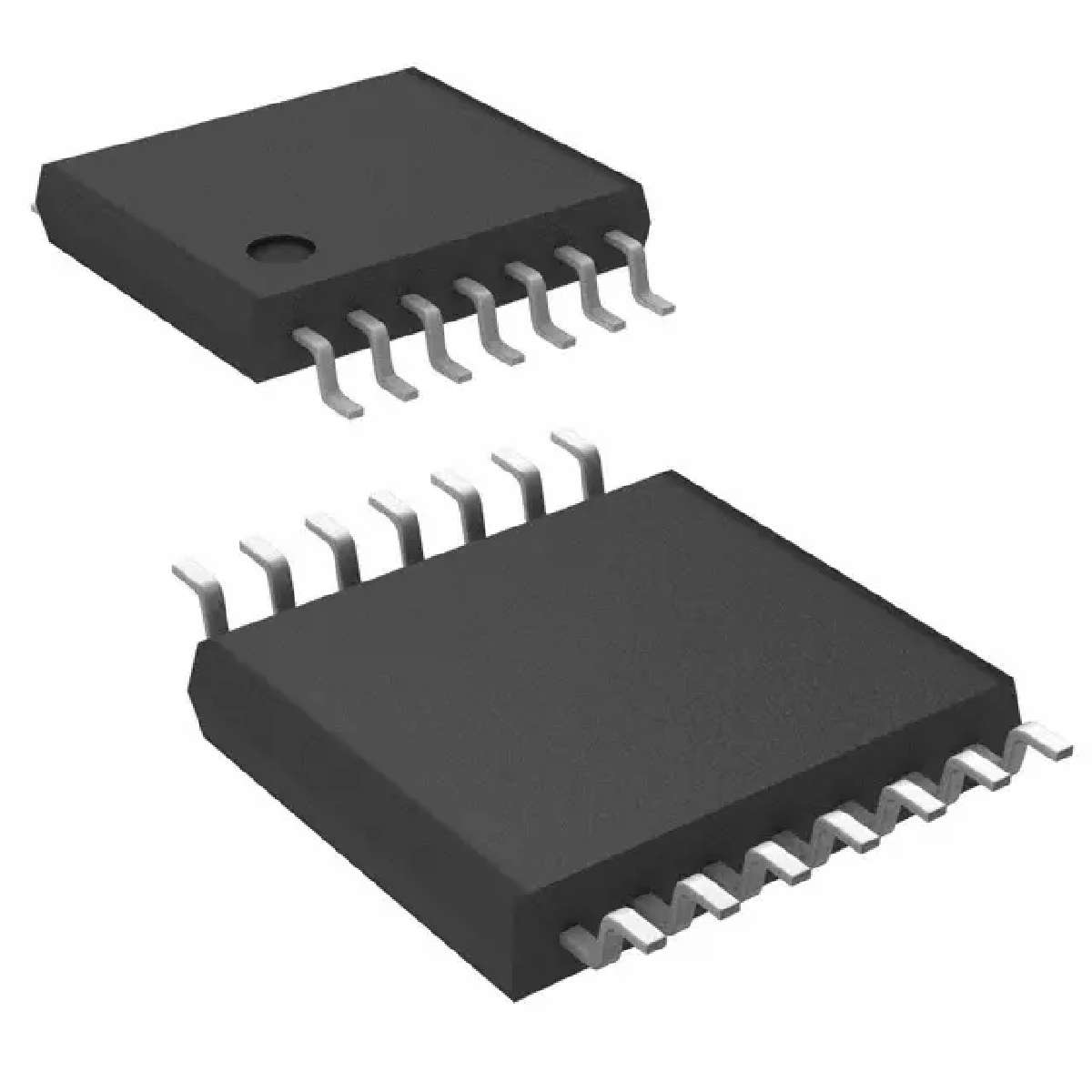

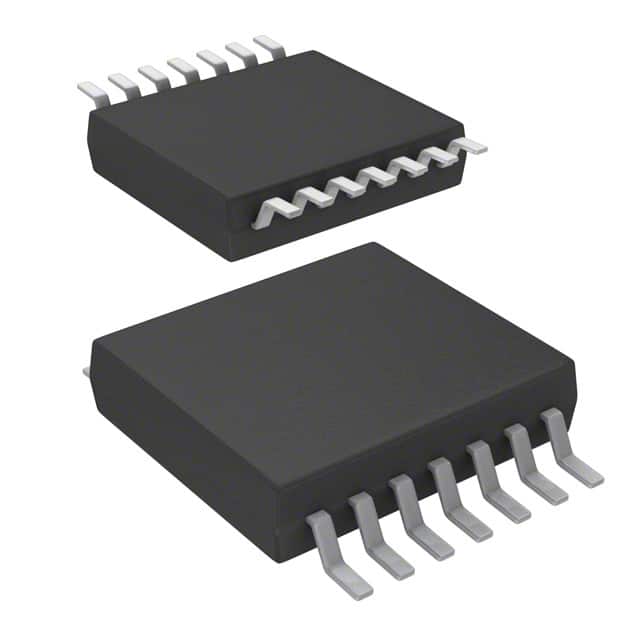

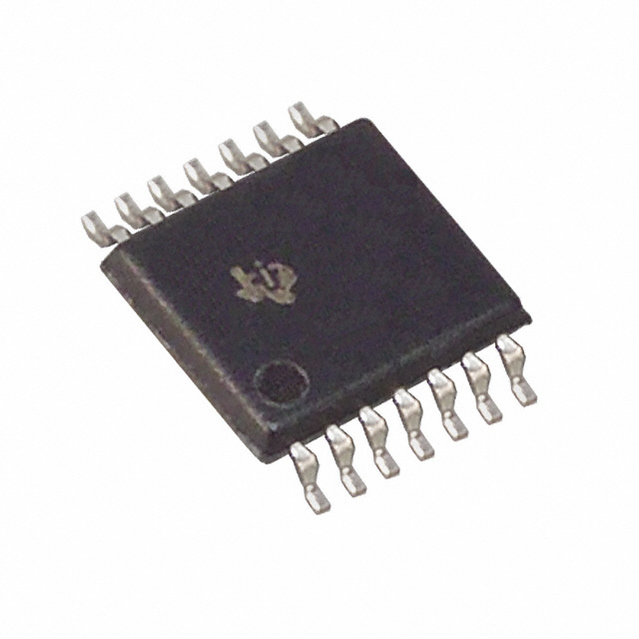

SN74LV07APWRG4概述

HEX缓冲器/带漏极开路输出驱动程序 HEX BUFFERS/DRIVERS WITH OPEN-DRAIN OUTPUTS

description/ordering information

These hex buffers/drivers are designed for 2-V to 5.5-V VCCoperation.

The ’LV07A devices perform the Boolean function Y = A in positive logic.

The open-drain outputs require pullup resistors to perform correctly and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

2-V to 5.5-V VCCOperation

Typical VOLPOutput Ground Bounce  <0.8 V at VCC = 3.3 V, TA= 25°C

Typical VOHVOutput VOHUndershoot  >2.3 V at VCC = 3.3 V, TA= 25°C

Outputs Are Disabled During Power Up and Power Down With Inputs Tied to VCC

Support Mixed-Mode Voltage Operation on All Ports

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model A114-A

− 200-V Machine Model A115-A

− 1000-V Charged-Device Model C101

SN74LV07APWRG4中文资料参数规格
技术参数

电源电压DC 2.00V ~ 5.50V

输出接口数 6

通道数 6

位数 6

传送延迟时间 8.50 ns

电压波节 5.00 V, 3.30 V, 2.50 V

逻辑门个数 6

输出电流驱动 16.0 mA

输入数 6

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 2V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 14

封装 TSSOP-14

外形尺寸

封装 TSSOP-14

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

SN74LV07APWRG4引脚图与封装图

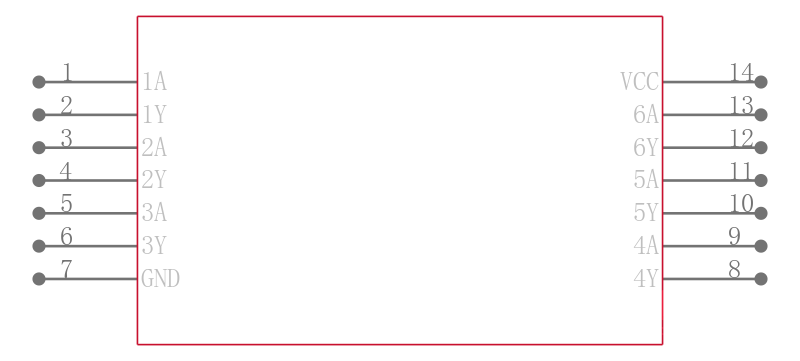

SN74LV07APWRG4引脚图

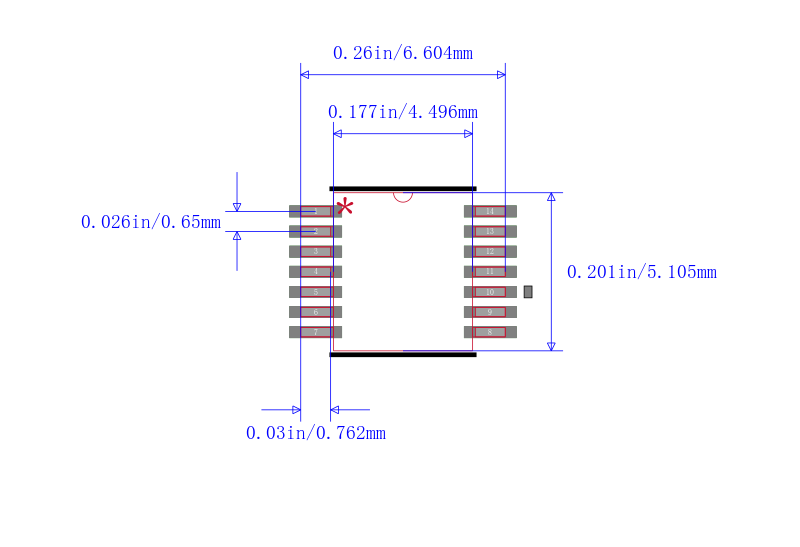

SN74LV07APWRG4封装图

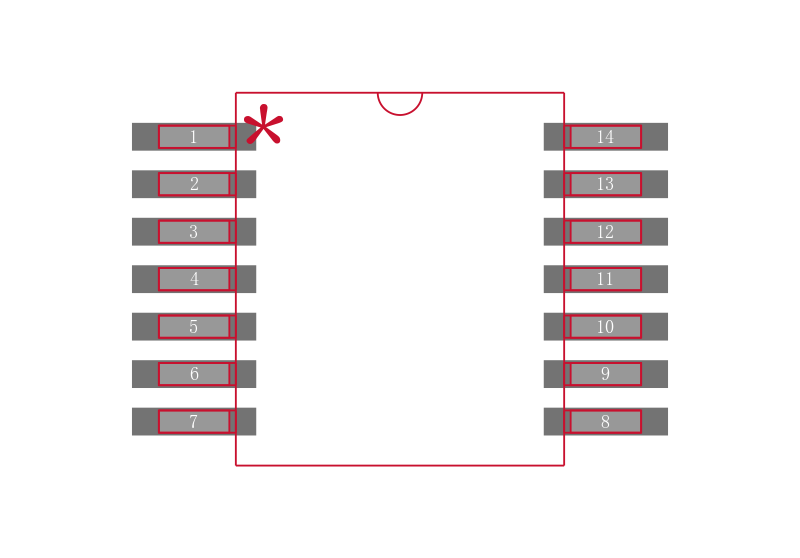

SN74LV07APWRG4封装焊盘图
在线购买SN74LV07APWRG4
型号: SN74LV07APWRG4
制造商: TI 德州仪器
描述:HEX缓冲器/带漏极开路输出驱动程序 HEX BUFFERS/DRIVERS WITH OPEN-DRAIN OUTPUTS
替代型号SN74LV07APWRG4
型号/品牌 代替类型 替代型号对比

SN74LV07APWRG4

TI 德州仪器

当前型号

当前型号

SN74LV07APWT

德州仪器

完全替代

SN74LV07APWRG4和SN74LV07APWT的区别

SN74LV07APWG4

德州仪器

完全替代

SN74LV07APWRG4和SN74LV07APWG4的区别

SN74LV07APWRE4

德州仪器

完全替代

SN74LV07APWRG4和SN74LV07APWRE4的区别
