具有三态输出单总线缓冲器门 SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT
Leading the input to the transmission line this buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has 1 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC -500 mV to 6.50 V
输出接口数 1
通道数 1
位数 1
传送延迟时间 4.00 ns
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6

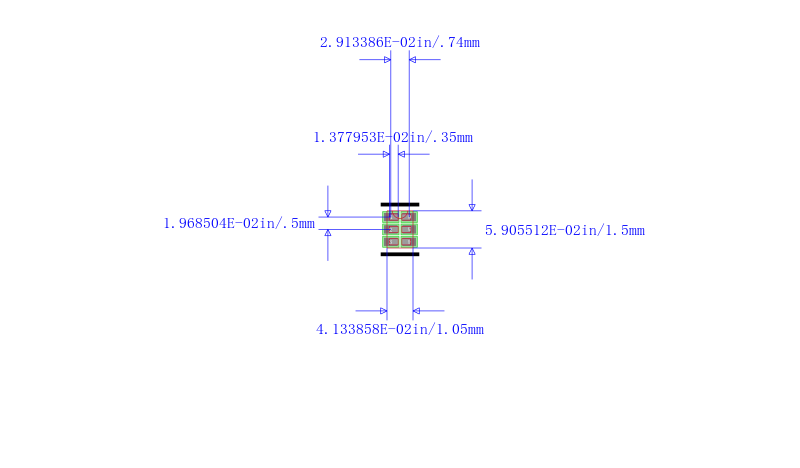

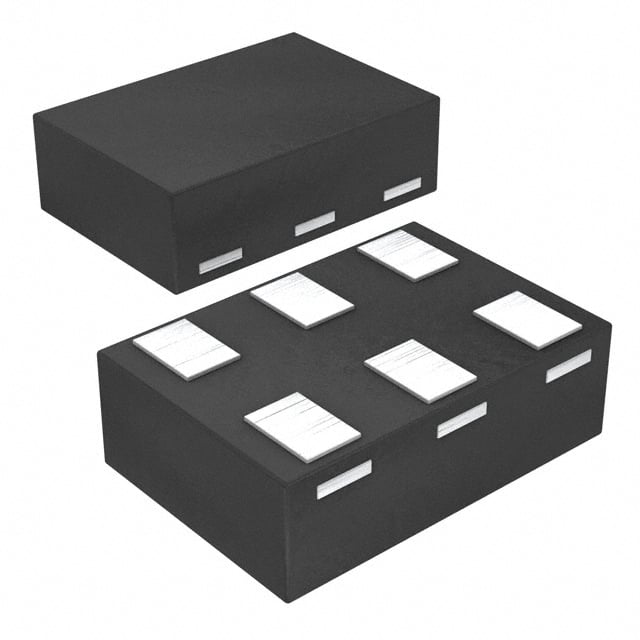

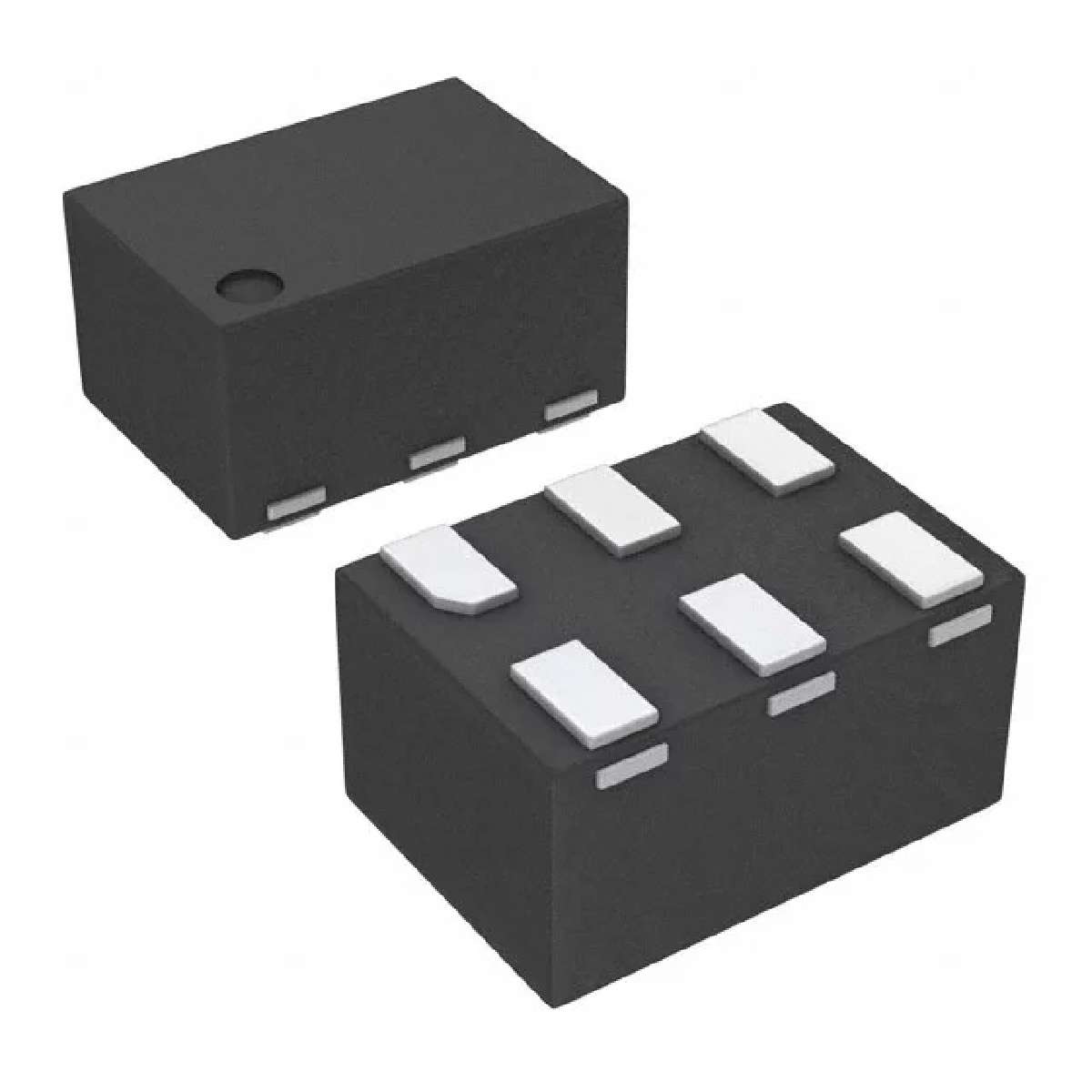

封装 SON-6
封装 SON-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC1G125DRYR TI 德州仪器 | 当前型号 | 当前型号 |
74LVC1G125DRYRG4 德州仪器 | 完全替代 | SN74LVC1G125DRYR和74LVC1G125DRYRG4的区别 |
NC7SZ126FHX 飞兆/仙童 | 类似代替 | SN74LVC1G125DRYR和NC7SZ126FHX的区别 |
SN74LVC1G125DCK 德州仪器 | 类似代替 | SN74LVC1G125DRYR和SN74LVC1G125DCK的区别 |
