低功耗双施密特触发缓冲器 LOW-POWER DUAL SCHMITT-TRIGGER BUFFER
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. This line driver has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 2 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
电源电压DC 3.60V max
输出接口数 2
通道数 2
针脚数 6
位数 2
传送延迟时间 4.30 ns
逻辑门个数 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 6

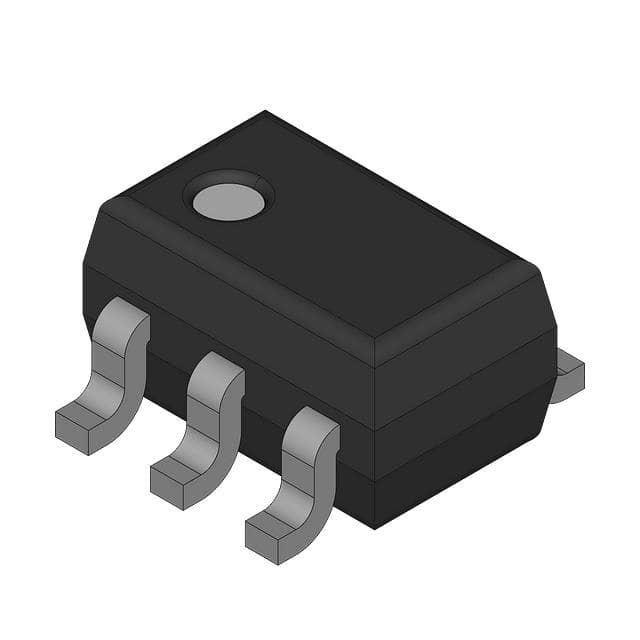

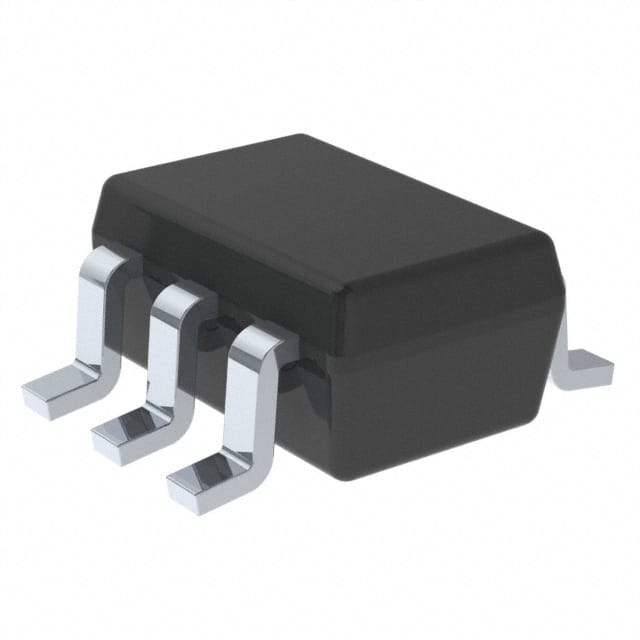

封装 SC-70-6
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AUP2G17DCKR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP2G17YFPR 德州仪器 | 完全替代 | SN74AUP2G17DCKR和SN74AUP2G17YFPR的区别 |
SN74AUP2G17DRYR 德州仪器 | 完全替代 | SN74AUP2G17DCKR和SN74AUP2G17DRYR的区别 |
SN74AUP2G17DSFR 德州仪器 | 功能相似 | SN74AUP2G17DCKR和SN74AUP2G17DSFR的区别 |
