翻两番总线缓冲器门 QUADRUPLE BUS BUFFER GATE
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of 0 °C and a maximum of 70 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 4 channels per chip.
电源电压DC 4.50V ~ 5.50V
输出接口数 4
电路数 4
通道数 4
位数 4
传送延迟时间 8.00 ns
电压波节 5.00 V
静态电流 28.0 mA
输出电流驱动 -234 µA
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount

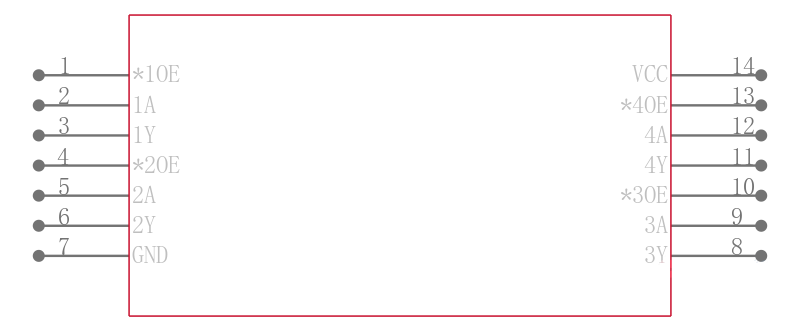

引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74F125DR TI 德州仪器 | 当前型号 | 当前型号 |
SN74F125D 德州仪器 | 完全替代 | SN74F125DR和SN74F125D的区别 |
SN74F125DRG4 德州仪器 | 完全替代 | SN74F125DR和SN74F125DRG4的区别 |
SN74F125DRE4 德州仪器 | 完全替代 | SN74F125DR和SN74F125DRE4的区别 |
