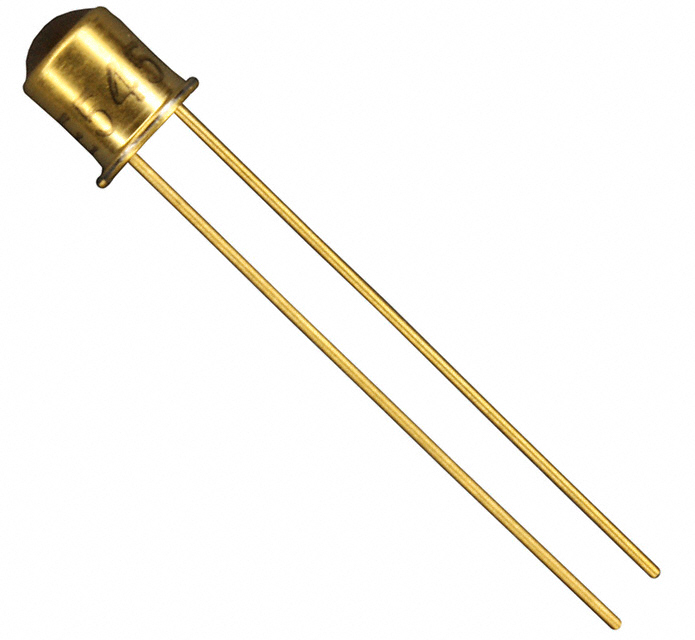

SE5450-013图片7
SE5450-013图片8
SE5450-013图片9
SE5450-013图片10
SE5450-013图片11
SE5450-013图片12
SE5450-013概述

HONEYWELL  SE5450-013  红外发射器, 20 °, TO-46, 100 mA, 1.7 V, 700 ns, 700 ns

红外(IR) 发射器 935nm 1.7V 100mA 1mW/cm² @ 100mA 20° TO-46-2,金属罐


得捷:
EMITTER IR 935NM 100MA TO-46


e络盟:
红外发射器, 935 nm, 20 °, TO-46, 700 ns, 700 ns


艾睿:
LED IrLED 935nm 2-Pin TO-46


Chip1Stop:
LED IrLED 935nm 2-Pin TO-46


Verical:
Infrared Emitter 935nm Circular Top Mount 2-Pin TO-46


Newark:
# HONEYWELL  SE5450-013  Infrared Emitter, Metal Can, 20 °, TO-46, 100 mA, 1.7 V, 700 ns, 700 ns


MASTER:
Infrared Emitter 935nm Circular Top Mount 2-Pin TO-46


Powell:
Sensors, Infrared Sensors, Emitter


Online Components:
Infrared Emitter 935nm Circular Top Mount 2-Pin TO-46


Electro Sonic:
Infrared Emitter 935nm Circular Top Mount 2-Pin TO-46


Win Source:
EMITTER IR 935NM 100MA TO-46 / Infrared IR Emitter 935nm 1.7V 100mA 1mW/cm² @ 100mA 20° TO-46-2 Metal Can


SE5450-013中文资料参数规格
技术参数

正向电压 1.7 V

波长 935 nm

视角 20°

峰值波长 935 nm

耗散功率 150 mW

上升时间 700 ns

测试电流 100 mA

正向电流 100 mA

击穿电压 3 V

正向电压Max 1.7 V

正向电流Max 100 mA

下降时间 700 ns

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 150 mW

封装参数

安装方式 Through Hole

引脚数 2

封装 TO-46-2

外形尺寸

高度 6.27 mm

封装 TO-46-2

物理参数

工作温度 -55℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Bulk

制造应用 工业, 传感与仪器

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8541402000
