汽车类具有三态输出的八路缓冲器/驱动器 20-TSSOP -40 to 125
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 8 channels per chip.
电源电压DC 1.65V ~ 3.60V
输出接口数 8
通道数 8
位数 8
传送延迟时间 5.90 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
耗散功率 500 mW
逻辑门个数 8
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount

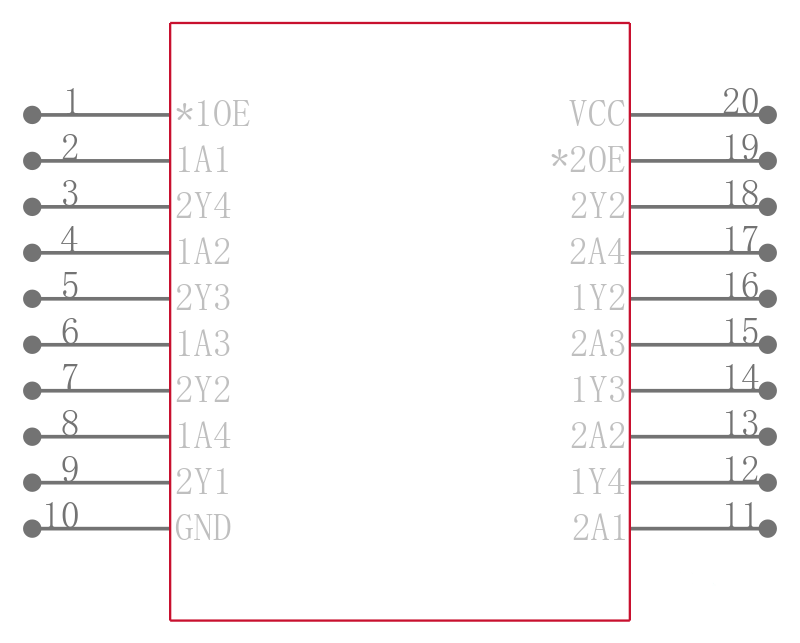

引脚数 20

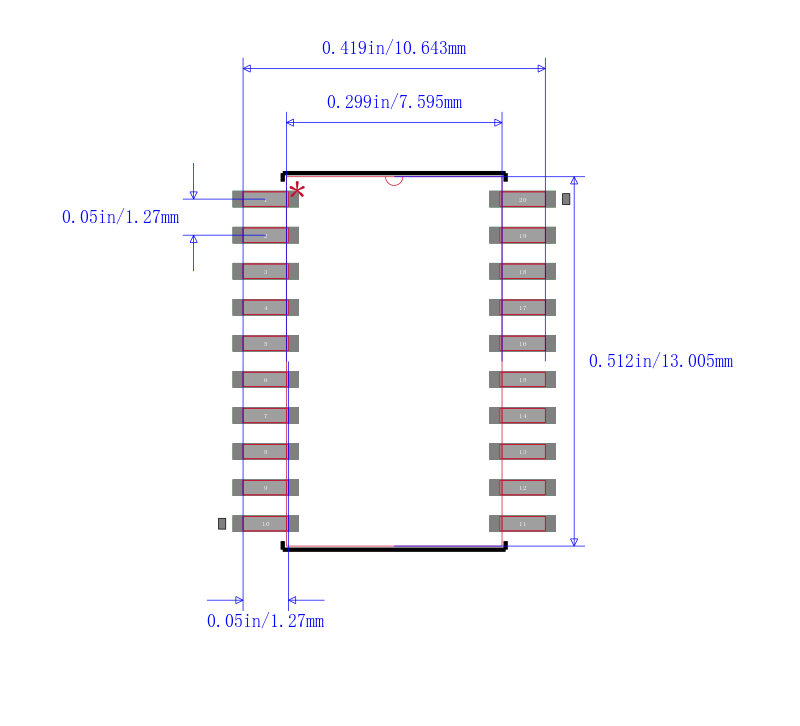

封装 TSSOP-20
封装 TSSOP-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC244AQPWRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
CLVC244AQPWRG4Q1 德州仪器 | 完全替代 | SN74LVC244AQPWRQ1和CLVC244AQPWRG4Q1的区别 |
SN74LVC244APWR 德州仪器 | 类似代替 | SN74LVC244AQPWRQ1和SN74LVC244APWR的区别 |
SN74LVC244APW 德州仪器 | 类似代替 | SN74LVC244AQPWRQ1和SN74LVC244APW的区别 |
