3.3 V ABT八路缓冲器/驱动器， 3态输出 3.3 V ABT OCTAL BUFFERS / DRIVERS WITH 3 STATE OUTPUTS
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.
电源电压DC 2.70V ~ 3.60V
输出接口数 8
通道数 8
针脚数 20
位数 8
传送延迟时间 3.50 ns
电压波节 3.30 V, 2.70 V
静态电流 5.00 mA
静态电流 5 mA
逻辑门个数 8
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 20

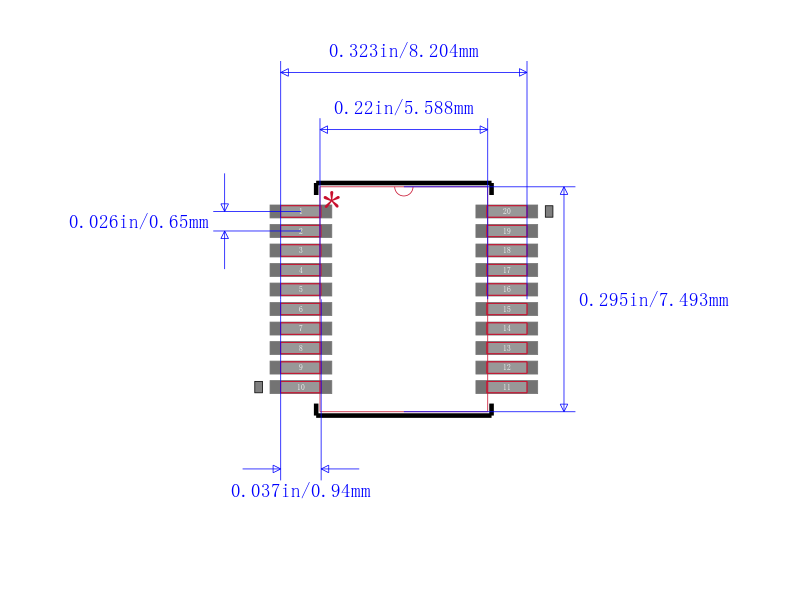

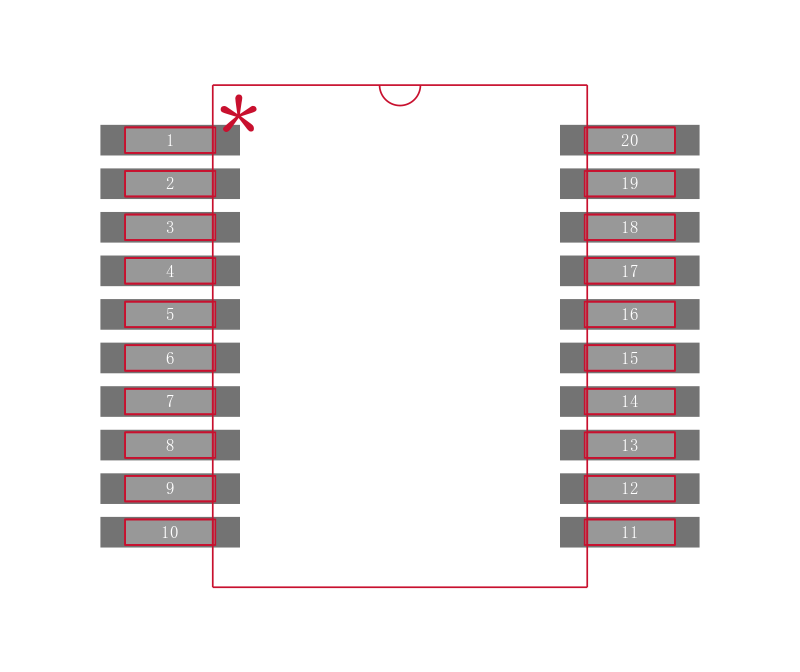

封装 SSOP-20
长度 7.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVTH244ADBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVTH244APW 德州仪器 | 完全替代 | SN74LVTH244ADBR和SN74LVTH244APW的区别 |
SN74LVTH244ADB 德州仪器 | 完全替代 | SN74LVTH244ADBR和SN74LVTH244ADB的区别 |
SN74LVTH244ADBRG4 德州仪器 | 完全替代 | SN74LVTH244ADBR和SN74LVTH244ADBRG4的区别 |
