SN74ACT244PWR

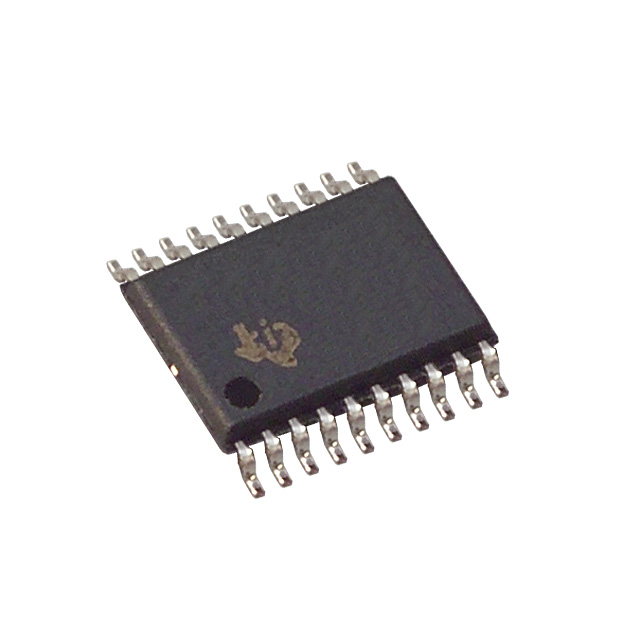

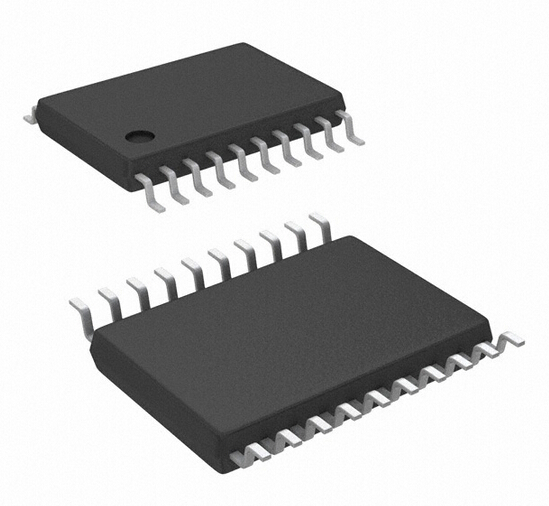

TEXAS INSTRUMENTS  SN74ACT244PWR.  芯片, 缓冲器 非反相, TSSOP-20, 整卷

The is an octal Buffer/Driver designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. The SN74ACT244 device is organized as two 4-bit buffers/drivers with separate output-enable OE\ inputs. When OE\ is low, the device passes non-inverted data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver.

.

Inputs accept voltages to 5.5V

.

9.5ns at 5V Propagation delay tpd

.

Inputs are TTL compatible

.

Green product and no Sb/Br
