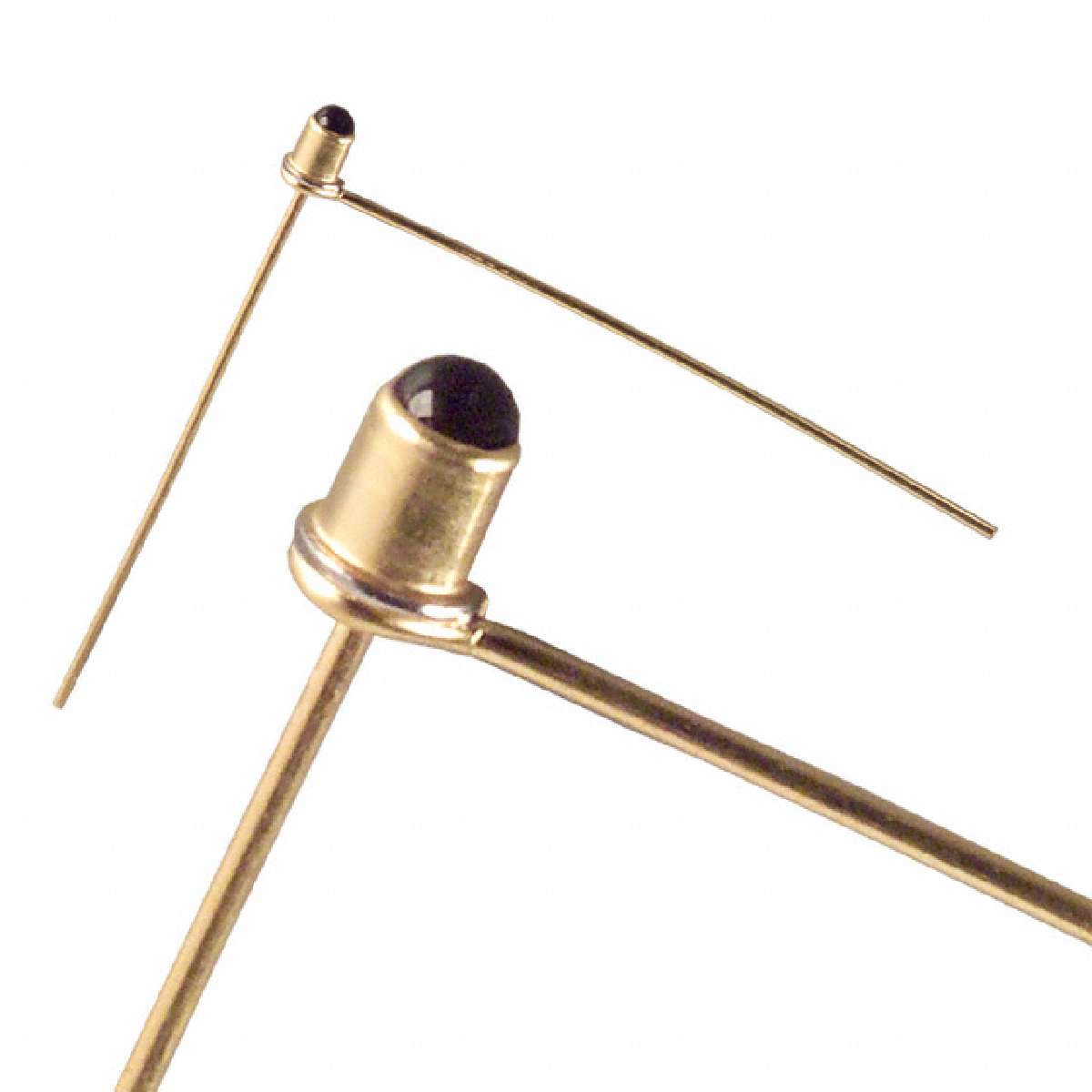

红外发射源 1.8V 20mA Infrared Diode
红外(IR) 发射器 880nm 1.8V 50mA 1.65mW/cm² @ 20mA 24° 同轴,金属罐
得捷:
EMITTER IR 880NM 50MA COAXIAL
贸泽:
红外发射源 1.8V 20mA Infrared Diode
艾睿:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can
Allied Electronics:
Diode, Infrared Emitter; Metal Can Coaxial; 880 nm; 1.8 V; 20 mA; -55 degC; 75
Chip1Stop:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can
Verical:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can
Newark:
# HONEYWELL SE1470-004L Infrared Emitter, Metal Can, 24 °, Metal Can, 20 mA, 1.8 V, 700 ns, 700 ns
儒卓力:
**IR EMITTER 880NM, METALL CAN **
MASTER:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can
Powell:
Sensors, Infrared Sensors, Emitter
Online Components:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can
Electro Sonic:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can
额定功率 75 mW
上升/下降时间 0.7 µs
正向电压 1.8 V
波长 880 nm
视角 24°
峰值波长 880 nm
耗散功率 75 mW
上升时间 700 ns
测试电流 20 mA
正向电流 20 mA
击穿电压 3 V
正向电压Max 1.8 V
正向电流Max 50 mA
下降时间 0.7 µs
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 75 mW
安装方式 Through Hole
引脚数 2
封装 TO-99
长度 2.41 mm
宽度 2.41 mm
高度 3.1 mm
封装 TO-99
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
