八路缓冲器并用3态输出线路驱动器 OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
The is an octal Buffer/Line Driver designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and non-inverting outputs, symmetrical, active-low output-control G\ inputs and complementary output-control G and G\\ inputs. This device features high fan-out, improved fan-in and 400mV noise margin. The SN74LS device can be used to drive terminated lines down to 133R.
电源电压DC 4.75V ~ 5.25V
输出接口数 8
通道数 8
针脚数 20
位数 8
传送延迟时间 18.0 ns
电压波节 5.00 V
静态电流 27 mA
输出电流驱动 -625 µA
输入数 8
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V

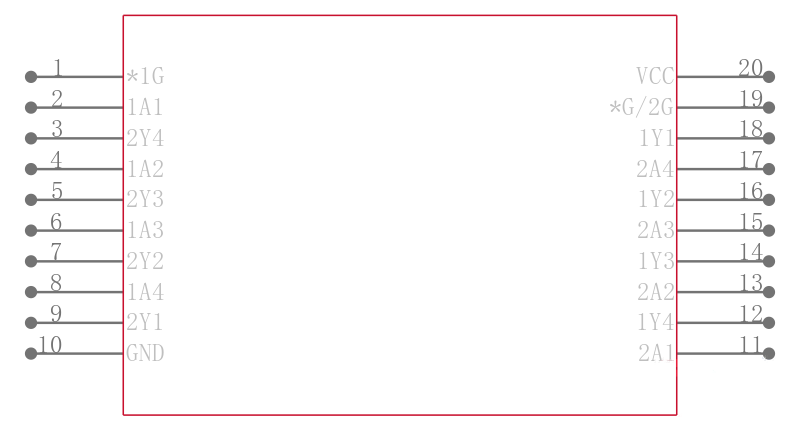

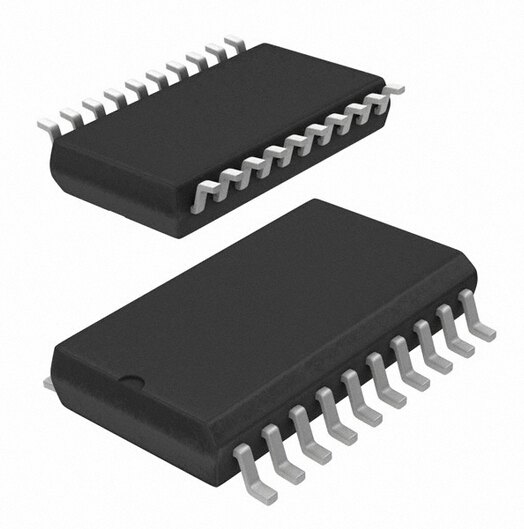

安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LS244DWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS244NSRG4 德州仪器 | 完全替代 | SN74LS244DWR和SN74LS244NSRG4的区别 |
SN74LS244NS 德州仪器 | 完全替代 | SN74LS244DWR和SN74LS244NS的区别 |
SN74LS244DWE4 德州仪器 | 完全替代 | SN74LS244DWR和SN74LS244DWE4的区别 |
