缓冲器和线路驱动器 Mil Enhance 3.3V ABT Quad Bus Buffers
Leading the input to the transmission line this buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has 4 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.
电源电压DC 2.70V ~ 3.60V
输出接口数 4
通道数 4
位数 4
传送延迟时间 3.90 ns
电压波节 3.30 V, 2.70 V
静态电流 4.5 mA
逻辑门个数 4
输出电流驱动 -500 µA
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 14

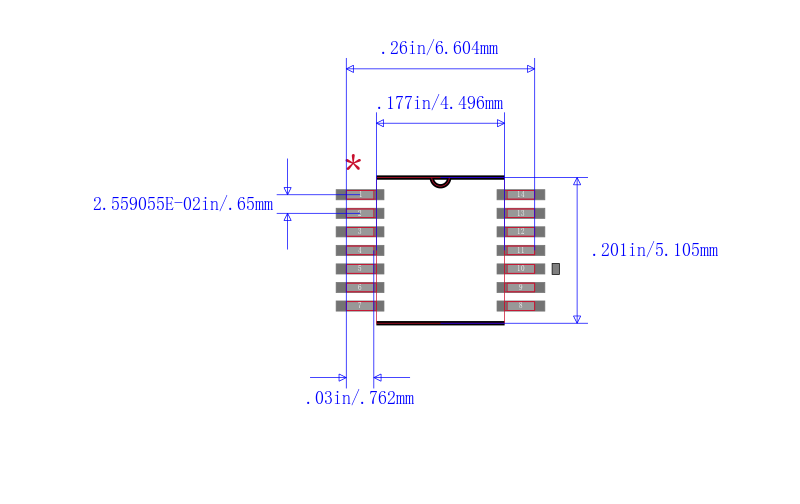

封装 TSSOP-14
长度 5.1 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVTH125IPWREP TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVTH125PWR 德州仪器 | 完全替代 | SN74LVTH125IPWREP和SN74LVTH125PWR的区别 |
SN74LVTH125PW 德州仪器 | 完全替代 | SN74LVTH125IPWREP和SN74LVTH125PW的区别 |
SN74LVTH125PWG4 德州仪器 | 完全替代 | SN74LVTH125IPWREP和SN74LVTH125PWG4的区别 |
