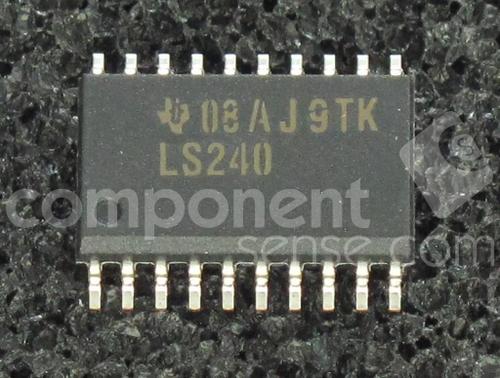

八路缓冲器并用3态输出线路驱动器 OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of 0 °C to 70 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. It has 8 channels per chip.
电源电压DC 4.75V ~ 5.25V
输出接口数 8
电路数 2
通道数 8
位数 8
传送延迟时间 18.0 ns
电压波节 5.00 V
静态电流 26 mA
输出电流驱动 -625 µA
输入数 8
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 4.75 V
电源电压Min 5.25 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
宽度 7.52 mm
封装 SOIC-20
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS240DWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS240DWG4 德州仪器 | 完全替代 | SN74LS240DWR和SN74LS240DWG4的区别 |
SN74LS240NS 德州仪器 | 完全替代 | SN74LS240DWR和SN74LS240NS的区别 |
SN74LS240NSRG4 德州仪器 | 完全替代 | SN74LS240DWR和SN74LS240NSRG4的区别 |
