SE1470-003L

SE1470-003L图片1
SE1470-003L图片2
SE1470-003L图片3
SE1470-003L图片4
SE1470-003L图片5
SE1470-003L图片6
SE1470-003L图片7
SE1470-003L图片8
SE1470-003L图片9
SE1470-003L图片10

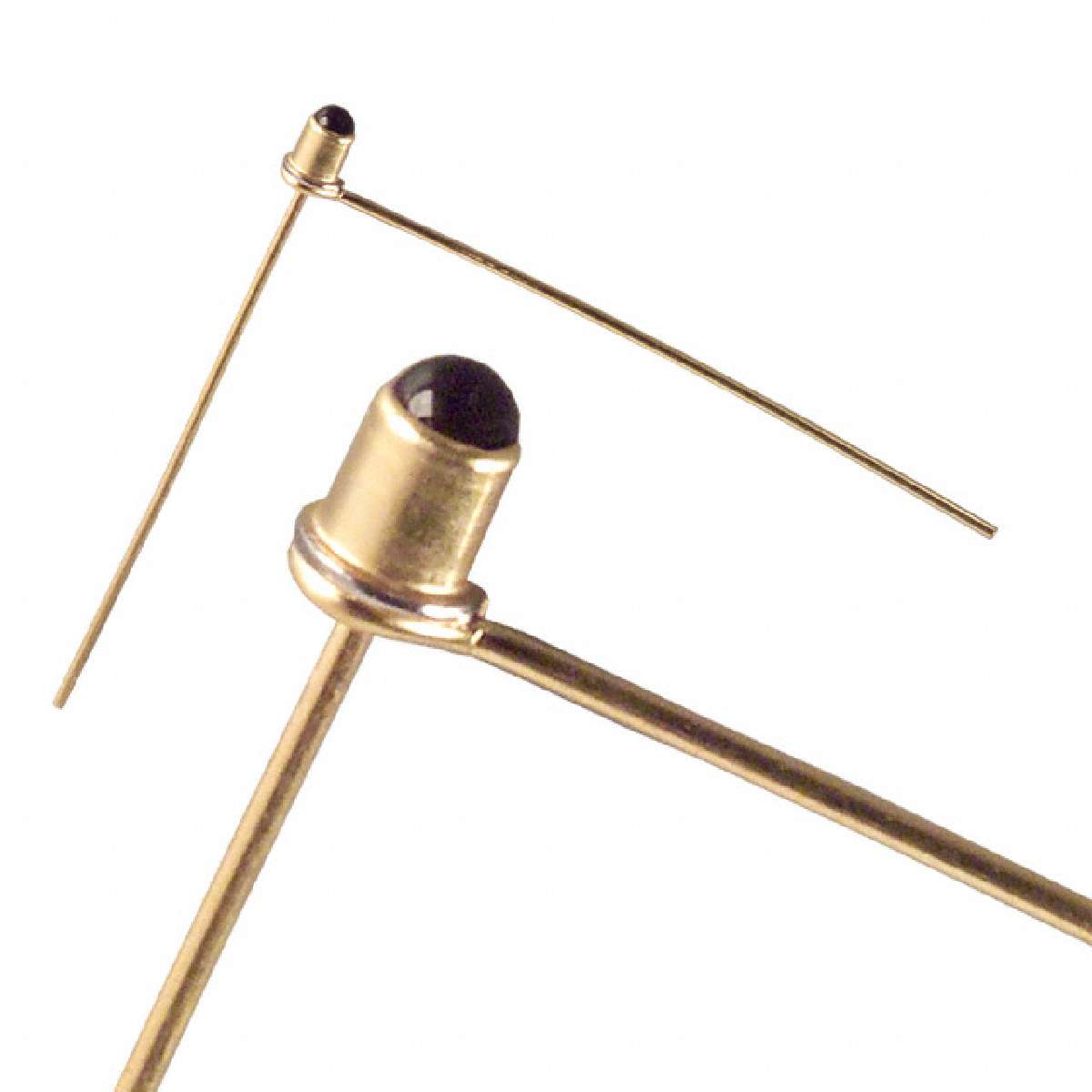

SE1470-003L图片11
SE1470-003L概述

红外发射源 AlGaAs Emiting Diode Mtl Can Coaxial Pkg

红外(IR) 发射器 880nm 1.8V 50mA 1.1mW/cm² @ 20mA 24° 同轴,金属罐


得捷:
EMITTER IR 880NM 50MA COAXIAL


贸泽:
红外发射源 AlGaAs Emiting Diode Mtl Can Coaxial Pkg


艾睿:
LED IrLED 880nm 2-Pin Metal Can


Chip1Stop:
LED IrLED 880nm 2-Pin Metal Can


Verical:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can


Newark:
# HONEYWELL  SE1470-003L  Infrared Emitter, Metal Can, 24 °, Metal Can, 20 mA, 1.8 V, 700 ns, 700 ns


儒卓力:
**IR EMITTER 880NM, METALL CAN **


MASTER:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can


Powell:
Sensors, Infrared Sensors, Emitter


Online Components:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can


Electro Sonic:
Infrared Emitter 880nm Circular Top Mount 2-Pin Metal Can


Win Source:
EMITTER IR 880NM 50MA COAXIAL / Infrared IR Emitter 880nm 1.8V 50mA 1.1mW/cm² @ 20mA 24° Coaxial, Metal Can


SE1470-003L中文资料参数规格
技术参数

上升/下降时间 0.7 µs

正向电压 1.8 V

波长 880 nm

视角 24°

峰值波长 880 nm

耗散功率 75 mW

上升时间 700 ns

测试电流 20 mA

正向电流 20 mA

击穿电压 3 V

正向电压Max 1.8 V

正向电流Max 50 mA

下降时间 700 ns

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 75 mW

封装参数

安装方式 Through Hole

引脚数 2

封装 TO-99

外形尺寸

长度 2.41 mm

宽度 2.41 mm

高度 3.1 mm

封装 TO-99

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Each

制造应用 Wireless, Sensing & Instrumentation, Automation & Process Control, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

海关信息

ECCN代码 EAR99

HTS代码 8541402000

数据手册

在线购买SE1470-003L
型号: SE1470-003L
描述:红外发射源 AlGaAs Emiting Diode Mtl Can Coaxial Pkg
