74LV 系列,Texas Instruments低电压 CMOS 逻辑 工作电压:2 - 5.5 兼容性:输入 LVTTL/TTL、输出 LVCMOS ### 74LV 系列
74LV 系列,Texas Instruments
低电压 CMOS 逻辑
工作电压:2 - 5.5
兼容性:输入 LVTTL/TTL、输出 LVCMOS
得捷:
IC BUF NON-INVERT 5.5V 20TSSOP
立创商城:

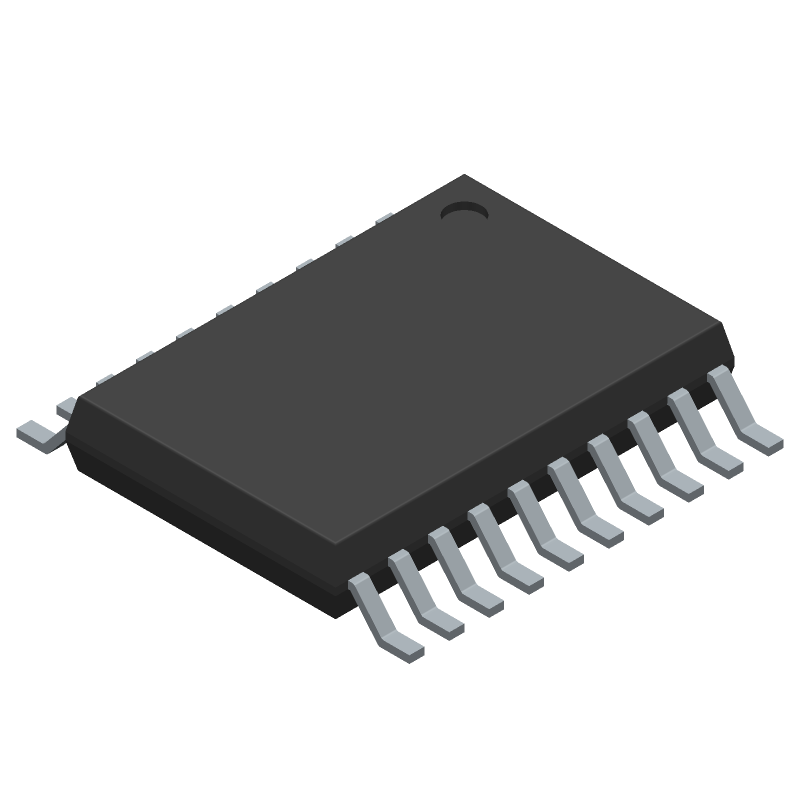

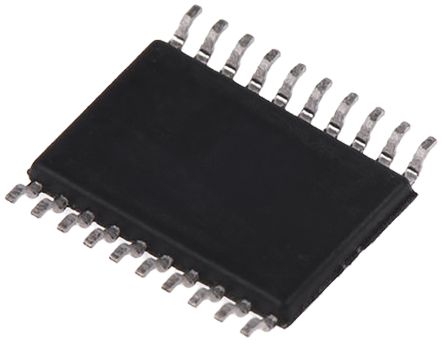

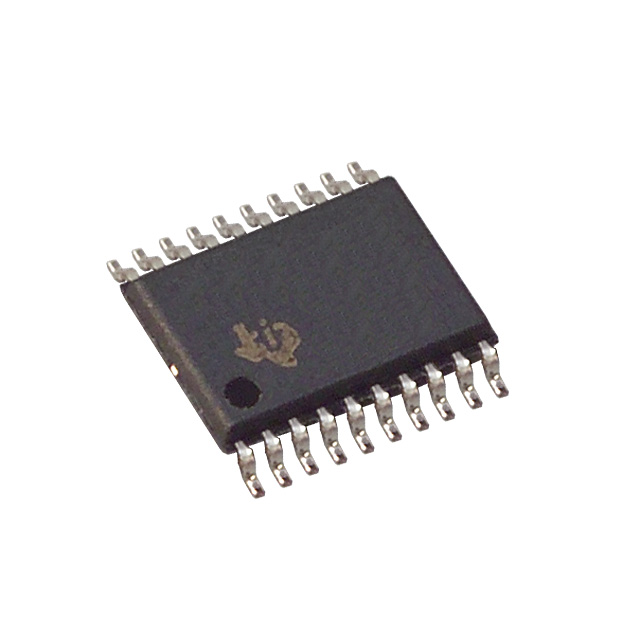

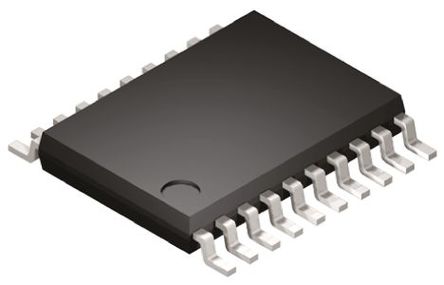

SN74LV541APWR
德州仪器TI:
8-ch, 2-V to 5.5-V buffers with 3-state outputs
欧时:
Texas Instruments SN74LV541APWR LV 系列 8位 三态 非反相 缓冲器,线路驱动器, 20引脚 TSSOP封装
贸泽:
缓冲器和线路驱动器 Tri-State Octal
艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this SN74LV541APWR buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. It has 8 channels per chip.
安富利:
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R
Verical:
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R
Newark:
Buffer / Line Driver, 74LV541, 2 V to 5.5 V, TSSOP-20
DeviceMart:
IC BUFF/DVR TRI-ST 8BIT 20TSSOP
Win Source:
IC BUFF/DVR TRI-ST 8BIT 20TSSOP
电源电压DC 2.00V ~ 5.50V
输出接口数 8
通道数 8
针脚数 20
位数 8
传送延迟时间 8.50 ns
电压波节 5.00 V, 3.30 V, 2.50 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LV541APWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV541APW 德州仪器 | 完全替代 | SN74LV541APWR和SN74LV541APW的区别 |
SN74LV541APWT 德州仪器 | 完全替代 | SN74LV541APWR和SN74LV541APWT的区别 |
SN74LV541APWE4 德州仪器 | 完全替代 | SN74LV541APWR和SN74LV541APWE4的区别 |
