SML-LX2723USBC-TR

SML-LX2723USBC-TR图片1
SML-LX2723USBC-TR图片2
SML-LX2723USBC-TR图片3

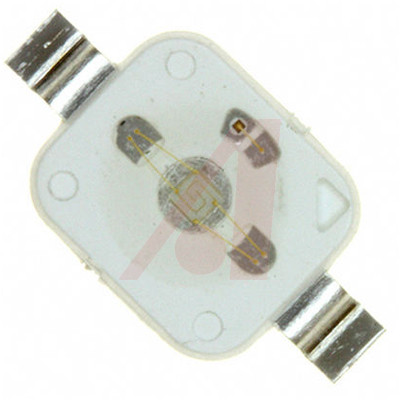

SML-LX2723USBC-TR图片4

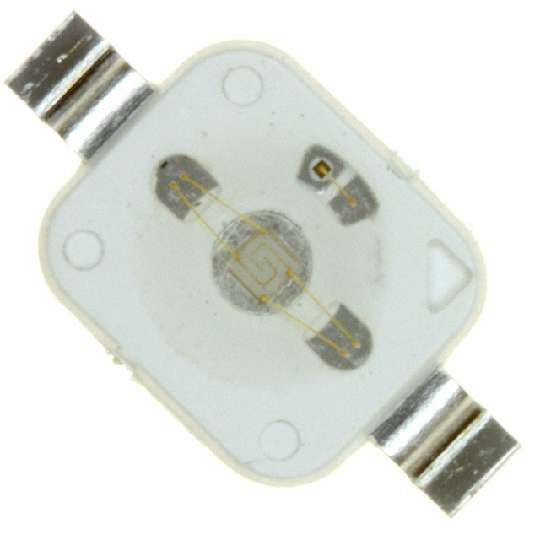

SML-LX2723USBC-TR图片5
SML-LX2723USBC-TR概述

High Power LEDs - Single Color Blue Clear 2.1W 470nm 13lm 350mA

The range of high power s have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of colours and lens finishes.

**Features:**

* High Brightness Chip Technology

* Wide range of colours and lens finishes

* Easy installation

SML-LX2723USBC-TR中文资料参数规格
技术参数

额定功率 1 W

正向电压 3.2 V

波长 470 nm

发光强度 5 mcd

视角 120°

测试电流 350 mA

正向电流 350 mA

工作温度Max 85 ℃

工作温度Min 40 ℃

封装参数

安装方式 Surface Mount

封装 SMD-2

外形尺寸

长度 7 mm

宽度 6 mm

高度 1.6 mm

封装 SMD-2

物理参数

颜色 Blue

其他

产品生命周期 Obsolete

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SML-LX2723USBC-TR
型号: SML-LX2723USBC-TR
制造商: Lumex 鲁美科思
描述:High Power LEDs - Single Color Blue Clear 2.1W 470nm 13lm 350mA
