3.3 -V ABT 16位缓冲器/驱动器，具有三态输出 3.3-V ABT 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 16 channels per chip.
电源电压DC 2.70V ~ 3.60V
输出接口数 16
通道数 16
位数 16
传送延迟时间 4.00 ns
电压波节 3.30 V, 2.70 V
静态电流 5 mA
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 2.7 V
电源电压Min 3.6 V
安装方式 Surface Mount
引脚数 48

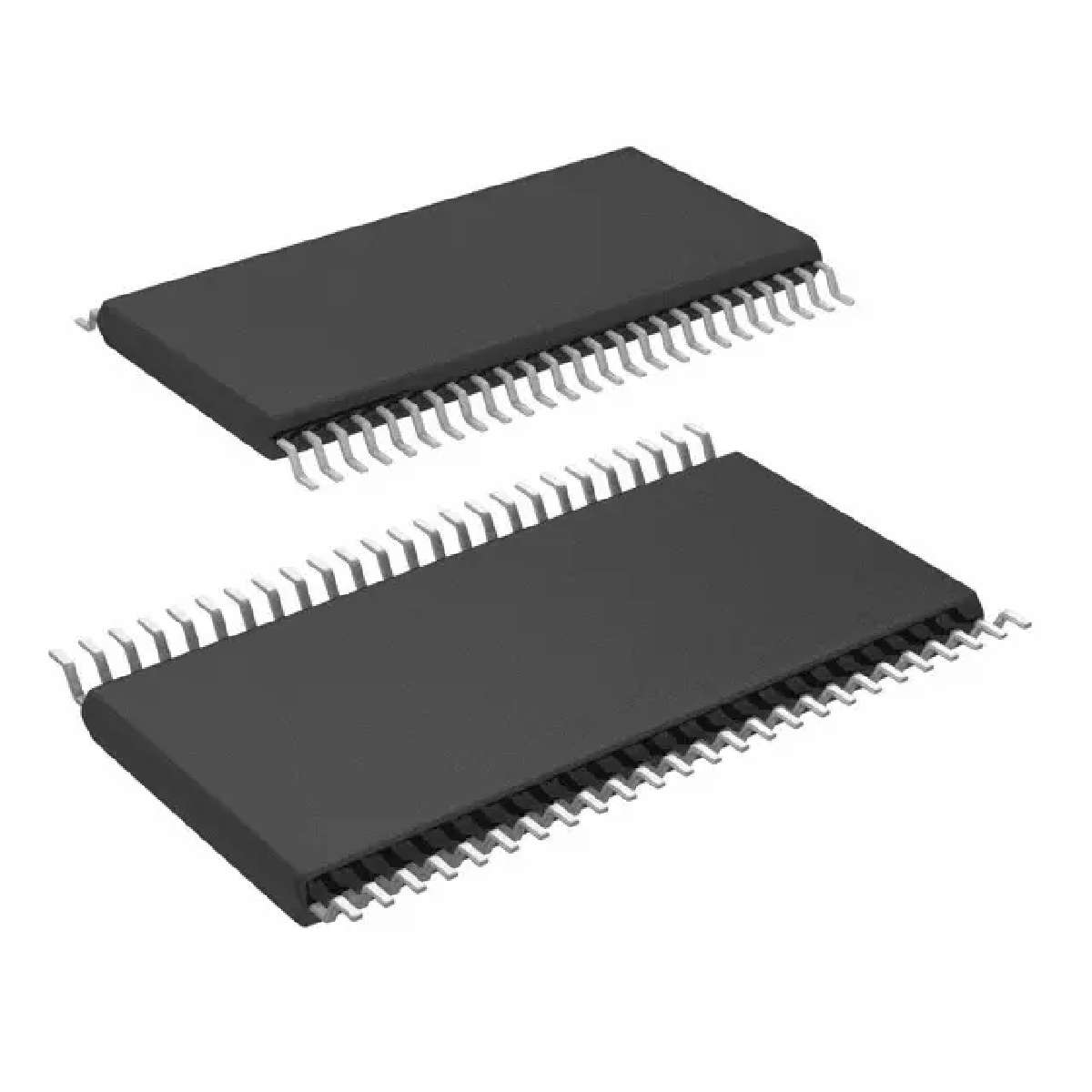

封装 TSSOP-48
长度 12.5 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVT162244ADGGR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVT162244ADGVR 德州仪器 | 完全替代 | SN74LVT162244ADGGR和SN74LVT162244ADGVR的区别 |
SN74LVTH162244DGG 德州仪器 | 完全替代 | SN74LVT162244ADGGR和SN74LVTH162244DGG的区别 |
SN74LVTH162244DGGR 德州仪器 | 类似代替 | SN74LVT162244ADGGR和SN74LVTH162244DGGR的区别 |
