单缓冲器/驱动器,具有漏极开路输出 SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT
Leading the input to the transmission line this buffer and line driver by Texas Instruments will amplify digital and analog signals. With an open drain output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V. It has 1 channels per chip.
电源电压DC 1.65V min
输出接口数 1
通道数 1
位数 1
传送延迟时间 3.50 ns
电压波节 5.00 V
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6

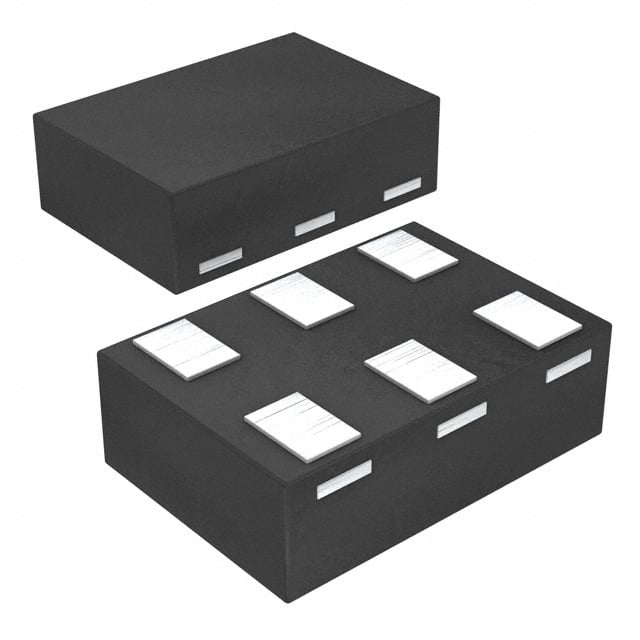

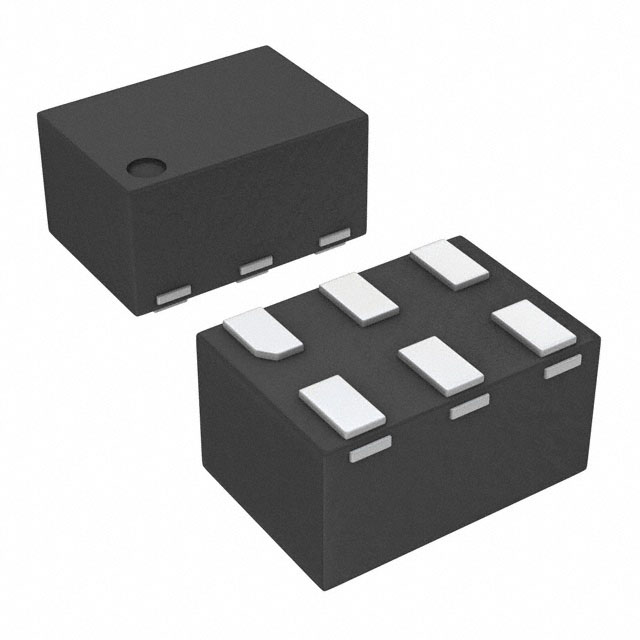

封装 USON-6
长度 1.45 mm
宽度 1 mm
高度 0.5 mm
封装 USON-6
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G07DRYR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G07DRYRG4 德州仪器 | 完全替代 | SN74LVC1G07DRYR和SN74LVC1G07DRYRG4的区别 |
74LVC1G07GF 恩智浦 | 功能相似 | SN74LVC1G07DRYR和74LVC1G07GF的区别 |
