八路缓冲器/驱动器， 3态输出 OCTAL BUFFERS /DRIVERS WITH 3 STATE OUTPUTS
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出接口数 8
通道数 8
位数 8
传送延迟时间 10.0 ns
电压波节 5.00 V, 3.30 V, 2.50 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount

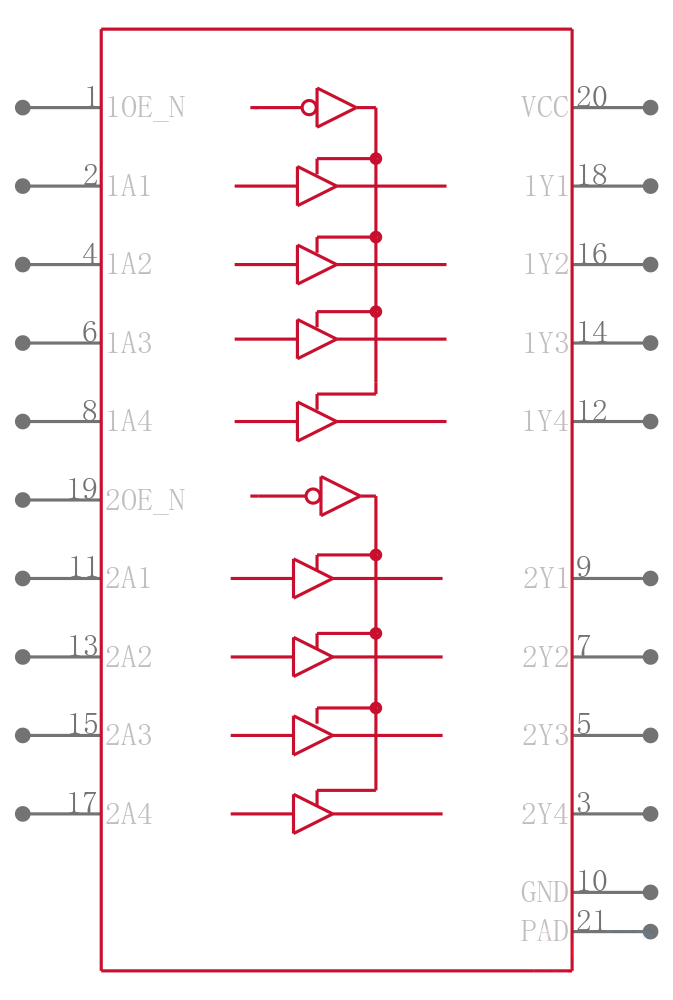

引脚数 20

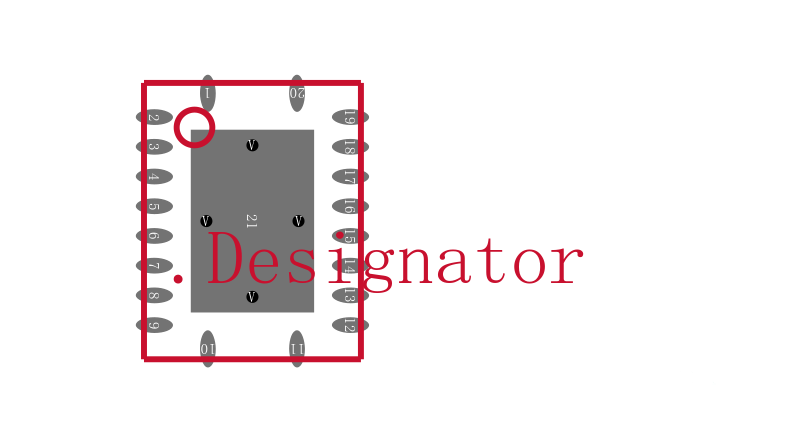

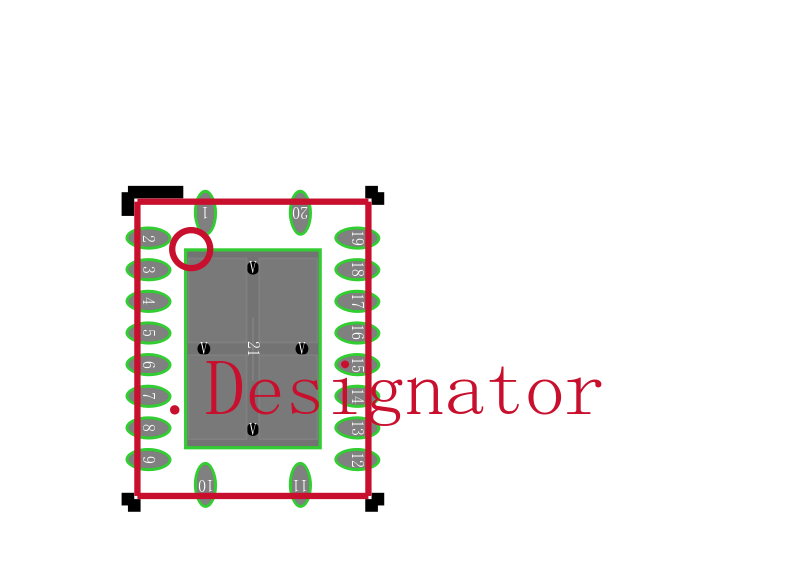

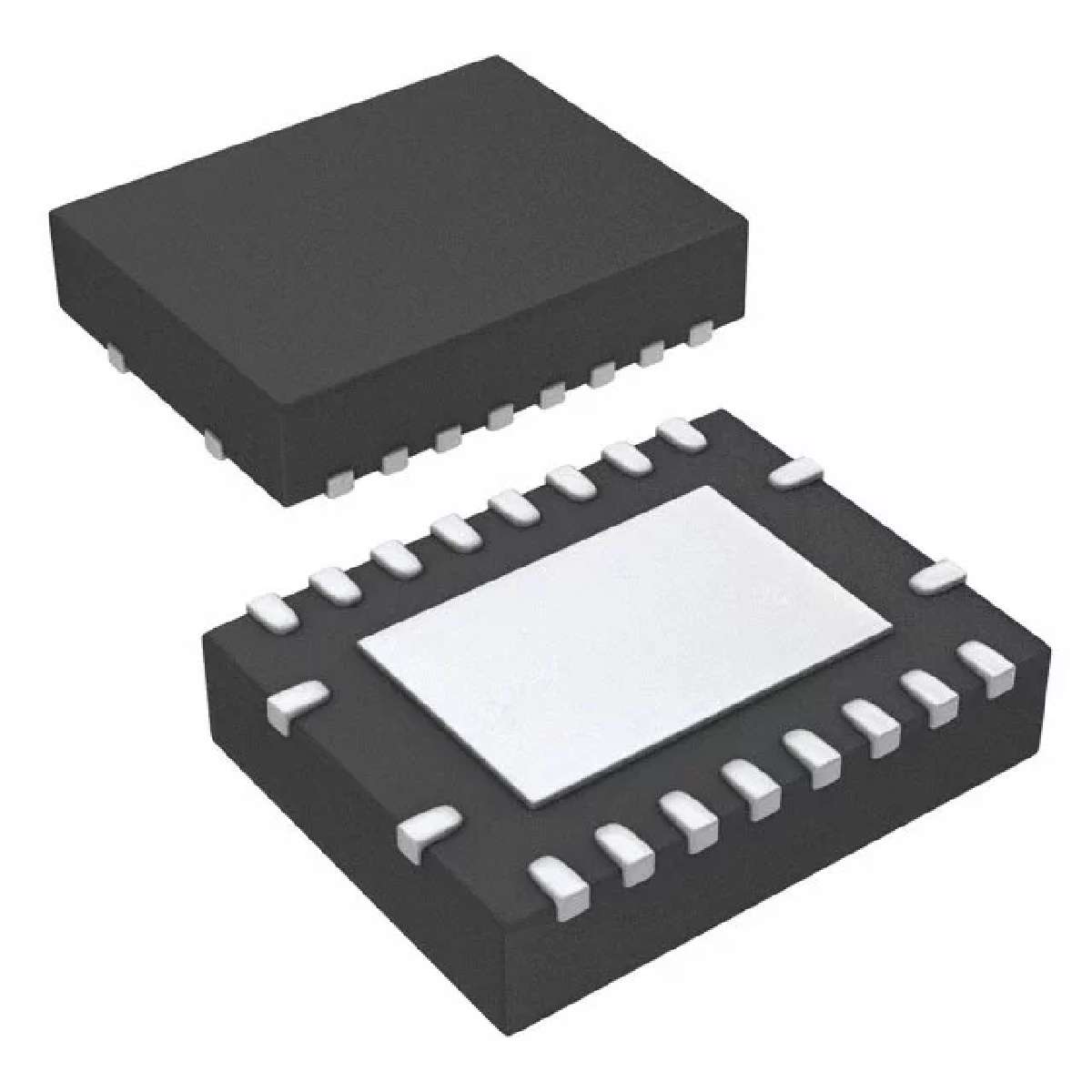

封装 VQFN-20
封装 VQFN-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV244ARGYR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV244ATRGYR 德州仪器 | 类似代替 | SN74LV244ARGYR和SN74LV244ATRGYR的区别 |
SN74LV244ATRGYRG4 德州仪器 | 类似代替 | SN74LV244ARGYR和SN74LV244ATRGYRG4的区别 |
