四路总线缓冲器闸具有三态输出 QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS

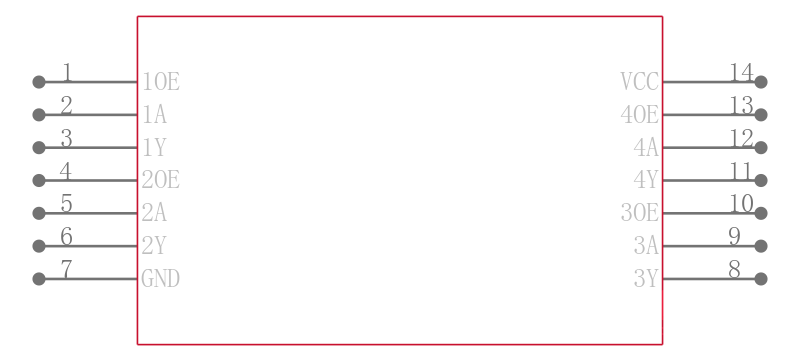

The SN74AHCT126 device is a quadruple bus buffer gate featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable OE input is low. When OE is high, the respective gate passes the data from the A input to its Y output.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
立创商城:
SN74AHCT126QDRG4Q1
德州仪器TI:
Automotive 4-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
得捷:
IC BUF NON-INVERT 5.5V 14SOIC
贸泽:
Buffers & Line Drivers QUAD BUS BUFFER GATE
艾睿:
By driving the input to the transmission line this SN74AHCT126QDRG4Q1 buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 4 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
Win Source:
IC BUF NON-INVERT 5.5V 14SOIC / Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SOIC
电源电压DC 4.50V ~ 5.50V
输出接口数 4
通道数 4
位数 4
传送延迟时间 8.50 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
工作温度Max 125 ℃
工作温度Min 40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHCT126QDRG4Q1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT126D 德州仪器 | 类似代替 | SN74AHCT126QDRG4Q1和SN74AHCT126D的区别 |
SN74AHCT126QDRQ1 德州仪器 | 类似代替 | SN74AHCT126QDRG4Q1和SN74AHCT126QDRQ1的区别 |
SN74AHCT126DR 德州仪器 | 类似代替 | SN74AHCT126QDRG4Q1和SN74AHCT126DR的区别 |
