74AUP3G 系列,Texas Instruments### 74AUP 系列工业标准高级超低功耗 AUP 逻辑系列产品,用于超低功耗、体积小的逻辑解决方案,适用于 1.8 V 和混合 1.8 V / 3.3 V 电路应用。 AUP 逻辑系列提供以下特征:广泛的电压范围:0.8 至 3.6V 施密特触发器输入,用于高抗杂讯度 极低的动态功耗 增强型 ESD 保护 速度/功耗优化
74AUP3G 系列,Texas Instruments
得捷:
IC BUF NON-INVERT 3.6V 8X2SON
立创商城:
SN74AUP3G17DQER
德州仪器TI:
3-ch, 0.8-V to 3.6-V low power buffers with Schmitt-Trigger inputs
欧时:
Texas Instruments AUP 系列 三 单端 非反相 缓冲器 SN74AUP3G17DQER, 8引脚 X2SON封装 Yes
艾睿:
This SN74AUP3G17DQER buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V. It has 3 channels per chip.
Chip1Stop:
Schmitt Trigger Buffer 3-CH Inverting CMOS 8-Pin X2SON T/R
Verical:
Schmitt Trigger Buffer 3-CH Inverting Push-Pull CMOS 8-Pin X2SON T/R
Newark:
# TEXAS INSTRUMENTS SN74AUP3G17DQER Buffer, 74AUP3G17, 0.8 V to 3.6 V, X2SON-8
DeviceMart:
IC BUFFER SCHMIT-TRIG LP 8X2SON
电源电压DC 800mV min
输出接口数 3
电路数 3
通道数 3
位数 3
传送延迟时间 4.30 ns
逻辑门个数 3
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
安装方式 Surface Mount
引脚数 8

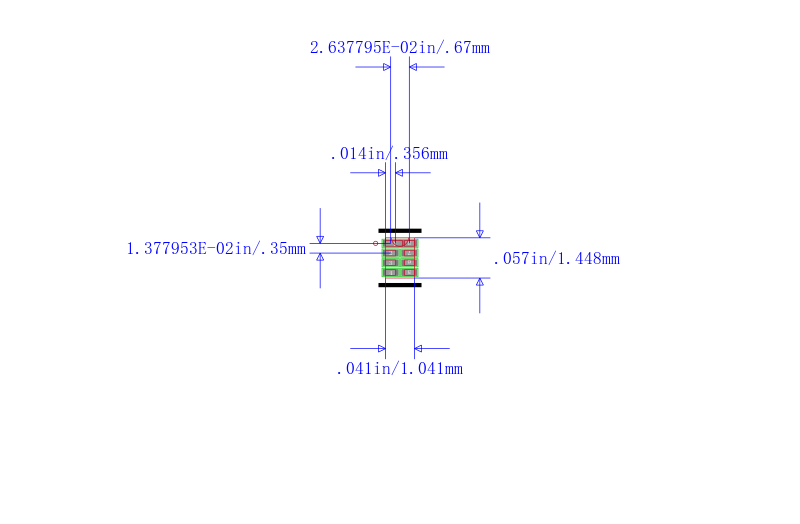

封装 XFDFN-8
长度 1.45 mm
宽度 1.05 mm
高度 0.35 mm
封装 XFDFN-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP3G17DQER TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP3G17DCUR 德州仪器 | 完全替代 | SN74AUP3G17DQER和SN74AUP3G17DCUR的区别 |
SN74AUP3G17RSER 德州仪器 | 完全替代 | SN74AUP3G17DQER和SN74AUP3G17RSER的区别 |
SN74AUP3G04DQER 德州仪器 | 完全替代 | SN74AUP3G17DQER和SN74AUP3G04DQER的区别 |
