低功耗双缓冲器/驱动器,具有三态输出 LOW-POWER DUAL BUFFER/DRIVER WITH 3-STATE OUTPUTS
The AUP family is s premier solution to the industrys low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life see Figure 1. This product also maintains excellent signal integrity see the very low undershoot and overshoot characteristics shown in Figure 2.
The SN74AUP2G241 is designed specifically to improve both the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.
NanoStar™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
电源电压DC 800mV min
输出接口数 2
电路数 2
通道数 2
针脚数 8
位数 2
传送延迟时间 4.30 ns
逻辑门个数 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 8

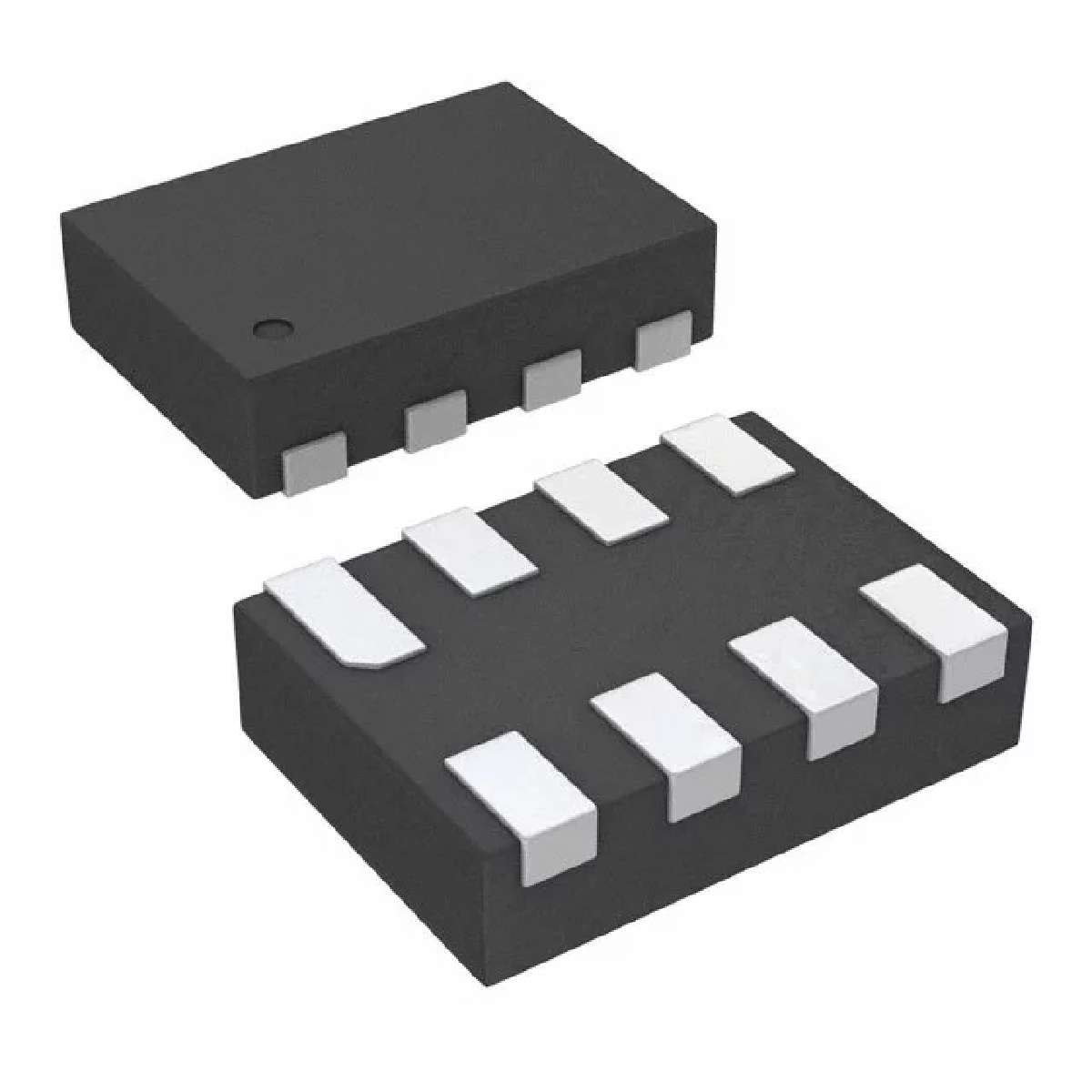

封装 XFDFN-8
封装 XFDFN-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP2G241DQER TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP2G241DCUR 德州仪器 | 完全替代 | SN74AUP2G241DQER和SN74AUP2G241DCUR的区别 |
SN74AUP2G241YFPR 德州仪器 | 完全替代 | SN74AUP2G241DQER和SN74AUP2G241YFPR的区别 |
SN74AUP2G241RSER 德州仪器 | 完全替代 | SN74AUP2G241DQER和SN74AUP2G241RSER的区别 |
