具有三态输出翻两番总线缓冲器GATES QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS
缓冲器,非反向 4 元件 1 位每元件 三态 Output 14-SSOP
立创商城:
SN74AHC126DBR
得捷:
IC BUF NON-INVERT 5.5V 14SSOP
德州仪器TI:
4-ch, 2-V to 5.5-V buffers with 3-state outputs
贸泽:
Buffers & Line Drivers Tri-State Quad Bus
艾睿:
This SN74AHC126DBR buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. It has 4 channels per chip.
安富利:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SSOP T/R
Chip1Stop:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SSOP T/R
Verical:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SSOP T/R
力源芯城:
四总线缓冲器三态输出
电源电压DC 2.00V ~ 5.50V
输出接口数 4
电路数 4
通道数 4
位数 4
传送延迟时间 8.50 ns
电压波节 5.00 V, 3.30 V
输出电流驱动 -1.00 mA
输入数 4
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount

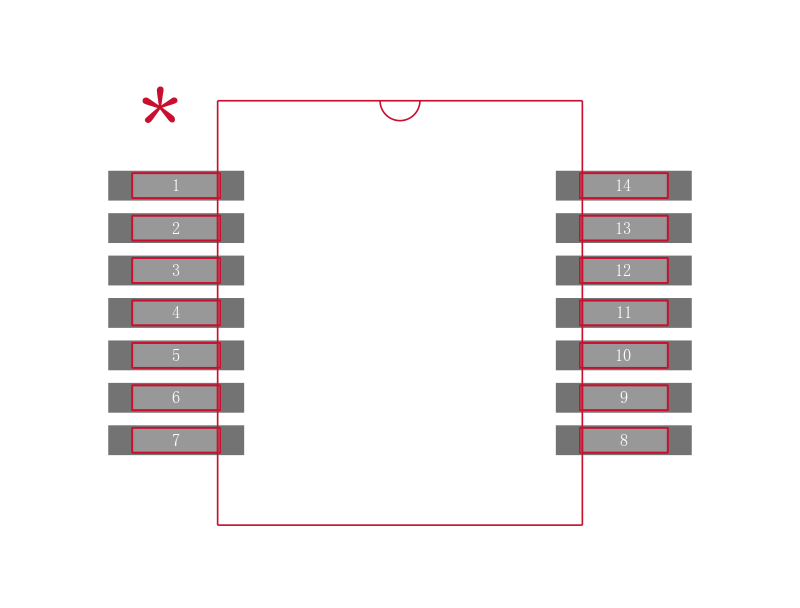

引脚数 14

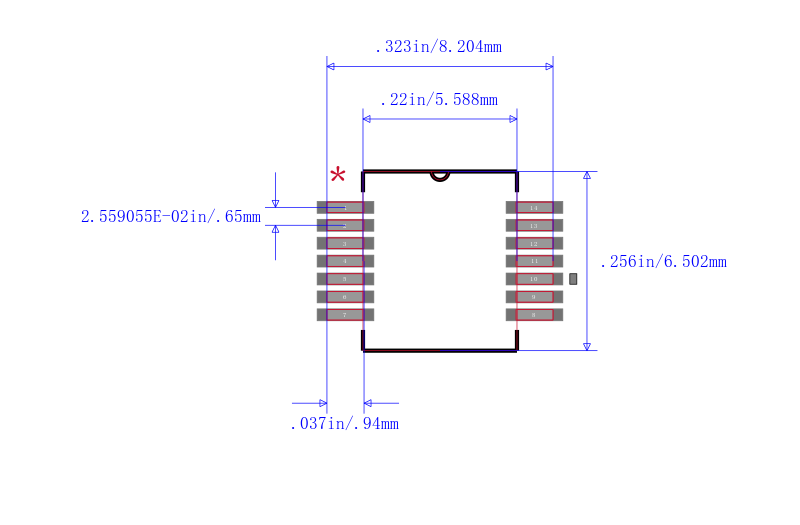

封装 SSOP-14
长度 6.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHC126DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC126DBLE 德州仪器 | 完全替代 | SN74AHC126DBR和SN74AHC126DBLE的区别 |
SN74AHC126DBRG4 德州仪器 | 类似代替 | SN74AHC126DBR和SN74AHC126DBRG4的区别 |
SN74AHC126DBRE4 德州仪器 | 类似代替 | SN74AHC126DBR和SN74AHC126DBRE4的区别 |
