单施密特触发缓冲器 SINGLE SCHMITT-TRIGGER BUFFER
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 1 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V ~ 5.50V
输出接口数 1
通道数 1
针脚数 5
位数 1
传送延迟时间 7.00 ns
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 6.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5

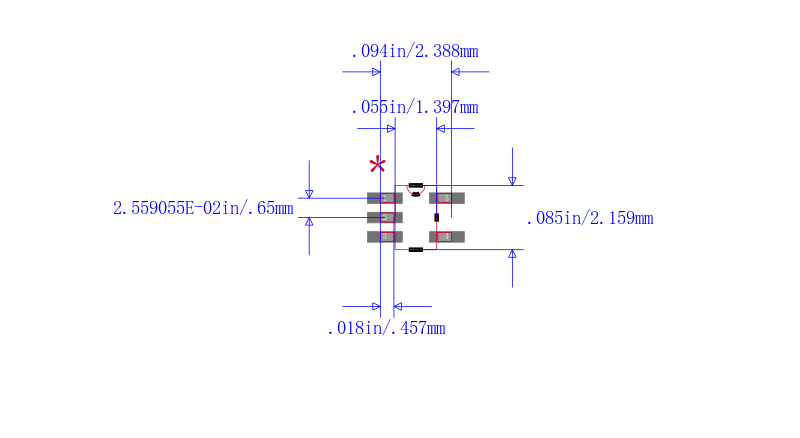

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC1G17QDCKRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G17DBVR 德州仪器 | 类似代替 | SN74LVC1G17QDCKRQ1和SN74LVC1G17DBVR的区别 |
SN74LVC1G17DCKR 德州仪器 | 类似代替 | SN74LVC1G17QDCKRQ1和SN74LVC1G17DCKR的区别 |
SN74LVC1G17DBVT 德州仪器 | 类似代替 | SN74LVC1G17QDCKRQ1和SN74LVC1G17DBVT的区别 |
