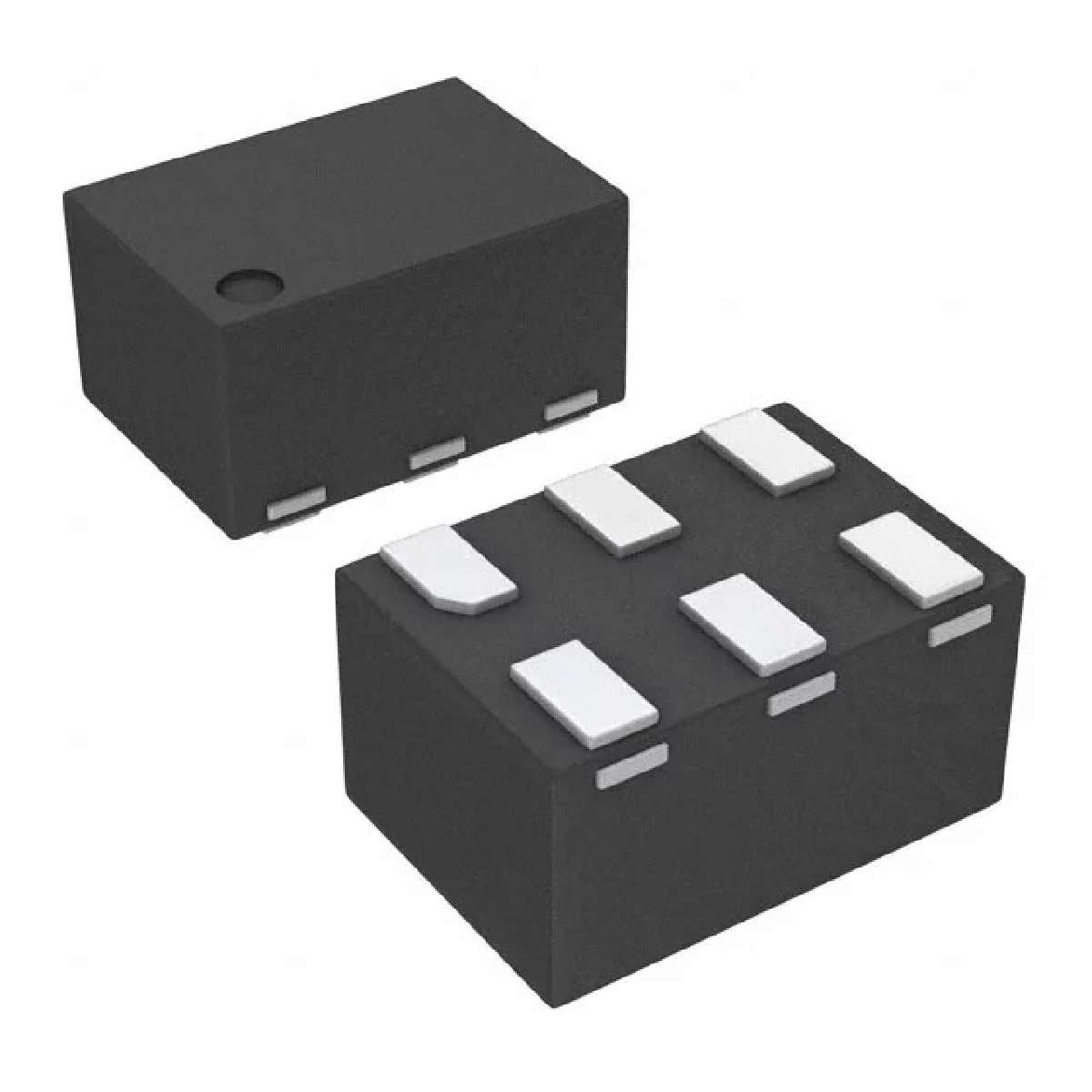

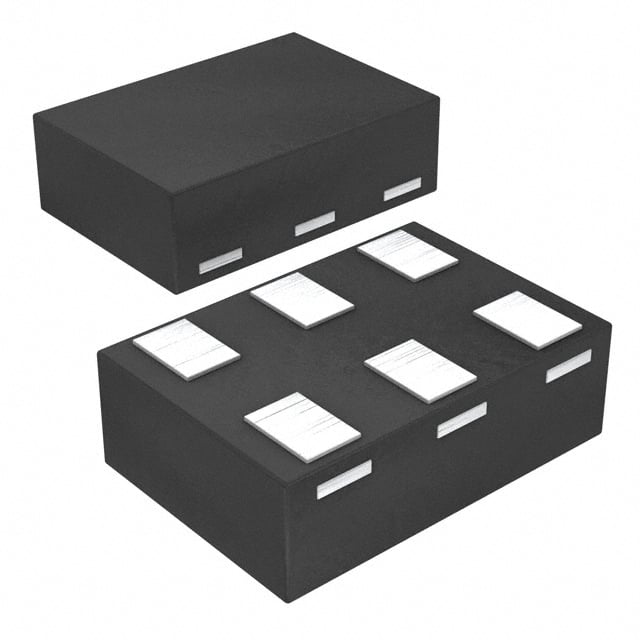

SN74LVC2G07DRYR

缓冲器和线路驱动器 Dual Buffer/Driver

* Dual Open-Drain Buffer Configuration * -24-mA Output Drive at 3.3 V * Support Translation-Up and Down * Available in the Texas Instruments NanoFree™ Package * Supports 5-V VCC Operation * Inputs and Open-Drain Outputs Accept Voltages Up to 5.5 V * Max tpd of 3.7 ns at 3.3 V * Low Power Consumption, 10-µA Max ICC * Typical VOLP Output Ground Bounce CC = 3.3 V, TA = 25°C * Typical VOHV Output VOH Undershoot >2 V at VCC = 3.3 V, TA = 25°C * Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * 2000-V Human-Body Model A114-A * 200-V Machine Model A115-A * 1000-V Charged-Device Model C101
