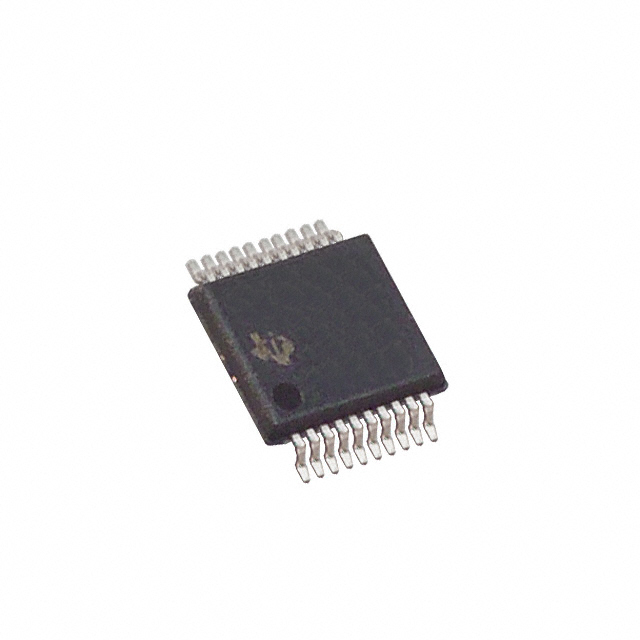

八路缓冲器/驱动器，具有三态输出 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出接口数 8
通道数 8
位数 8
传送延迟时间 10.0 ns
电压波节 5.00 V, 3.30 V, 2.50 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 2 V
电源电压Min 5.5 V
安装方式 Surface Mount
引脚数 20
封装 TVSOP-20
封装 TVSOP-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV244ADGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV244ADGVRE4 德州仪器 | 完全替代 | SN74LV244ADGVR和SN74LV244ADGVRE4的区别 |
74LVX244MTC 飞兆/仙童 | 功能相似 | SN74LV244ADGVR和74LVX244MTC的区别 |
74LVX244MTCX 飞兆/仙童 | 功能相似 | SN74LV244ADGVR和74LVX244MTCX的区别 |
