具有三态输出HEX公交车司机 HEX BUS DRIVERS WITH 3-STATE OUTPUTS
These hex buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The HC365 devices contain six independent buffers/drivers with dual-gated output-enable OE1\ and OE2\\\\ inputs. When OE1\ and OE2\ are both low, the deviceS pass noninverted data from the A inputs to the Y outputs. If either or both output-enable terminals is high, the outputs are in the high-impedance state.
电源电压DC 2.00V ~ 6.00V
输出接口数 6
位数 6
传送延迟时间 20.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

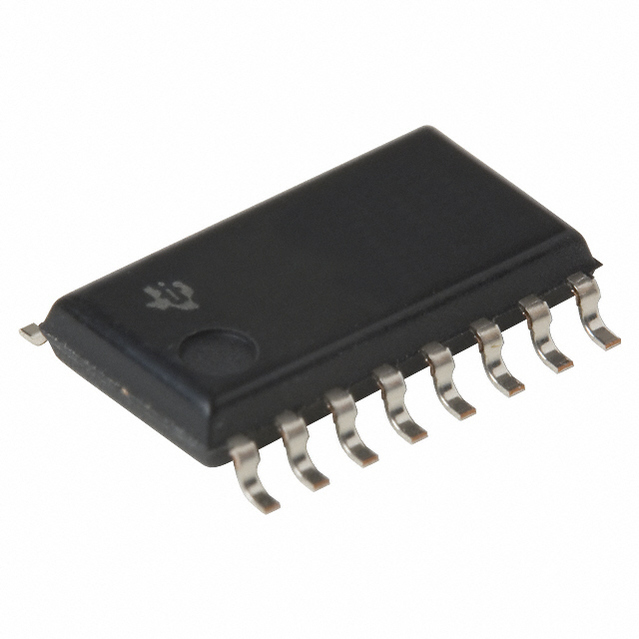

封装 SOP-16
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC365NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC365NSRE4 德州仪器 | 完全替代 | SN74HC365NSR和SN74HC365NSRE4的区别 |
SN74HC365NSRG4 德州仪器 | 完全替代 | SN74HC365NSR和SN74HC365NSRG4的区别 |
