八路缓冲器/驱动器,具有三态输出 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
缓冲器,反向 元件 8 位每元件 三态 Output 20-SO
得捷:
IC BUFFER INVERT 5.5V 20SO
立创商城:
SN74AHCT540NSR
德州仪器TI:
8-ch, 4.5-V to 5.5-V inverters with TTL-compatible CMOS inputs
贸泽:
Buffers & Line Drivers Octal Buffer/Driver With 3-State Outputs
艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this SN74AHCT540NSR buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
Chip1Stop:
Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SOP T/R
Verical:
Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SOP T/R
力源芯城:
八缓冲/驱动,反相输出
电源电压DC 4.50V ~ 5.50V
输出接口数 8
电路数 1
通道数 8
位数 8
传送延迟时间 10.0 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min 40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

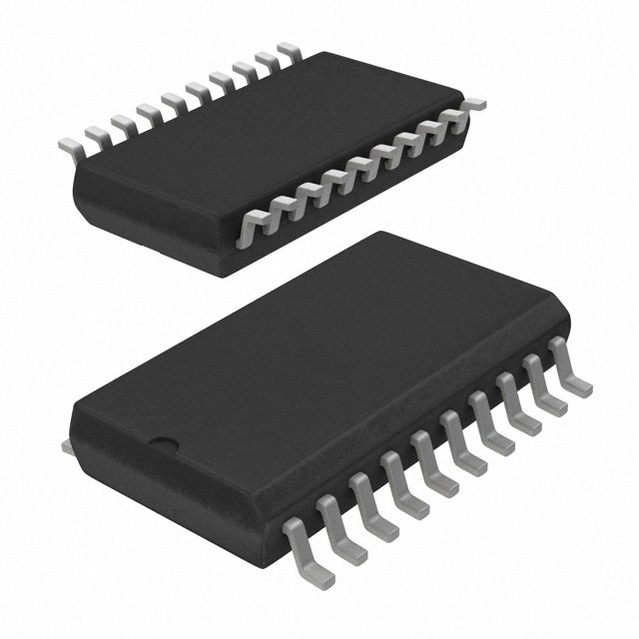

封装 SOP-20
长度 12.6 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHCT540NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT540PWR 德州仪器 | 类似代替 | SN74AHCT540NSR和SN74AHCT540PWR的区别 |
SN74AHCT540PW 德州仪器 | 类似代替 | SN74AHCT540NSR和SN74AHCT540PW的区别 |
SN74AHCT540DGVR 德州仪器 | 类似代替 | SN74AHCT540NSR和SN74AHCT540DGVR的区别 |
