缓冲器和线路驱动器 Tri-State Quad Bus
This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVC126 features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable OE input is low.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
得捷:
IC BUFFER NON-INVERT 3.6V 14SOP
立创商城:
SN74ALVC126NSR
德州仪器TI:
4-ch, 1.65-V to 3.6-V buffers with 3-state outputs
贸泽:
缓冲器和线路驱动器 Tri-State Quad Bus
艾睿:
This SN74ALVC126NSR buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 4 channels per chip.
安富利:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOP T/R
Chip1Stop:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOP T/R
Verical:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOP T/R
Win Source:
IC BUFFER NON-INVERT 3.6V 14SOP / Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SO
电源电压DC 1.65V ~ 3.60V
输出接口数 4
电路数 4
通道数 4
位数 4
传送延迟时间 3.10 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount

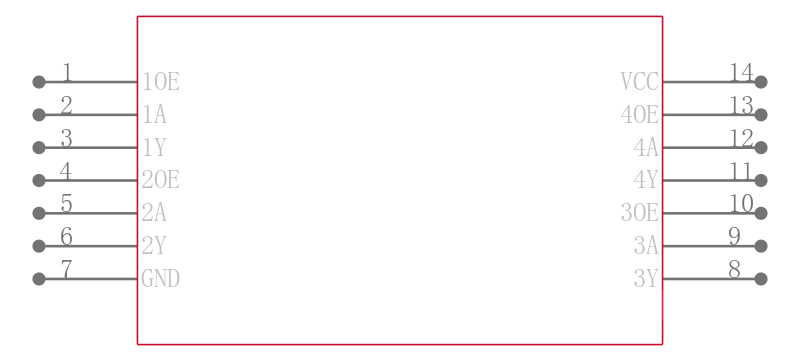

引脚数 14

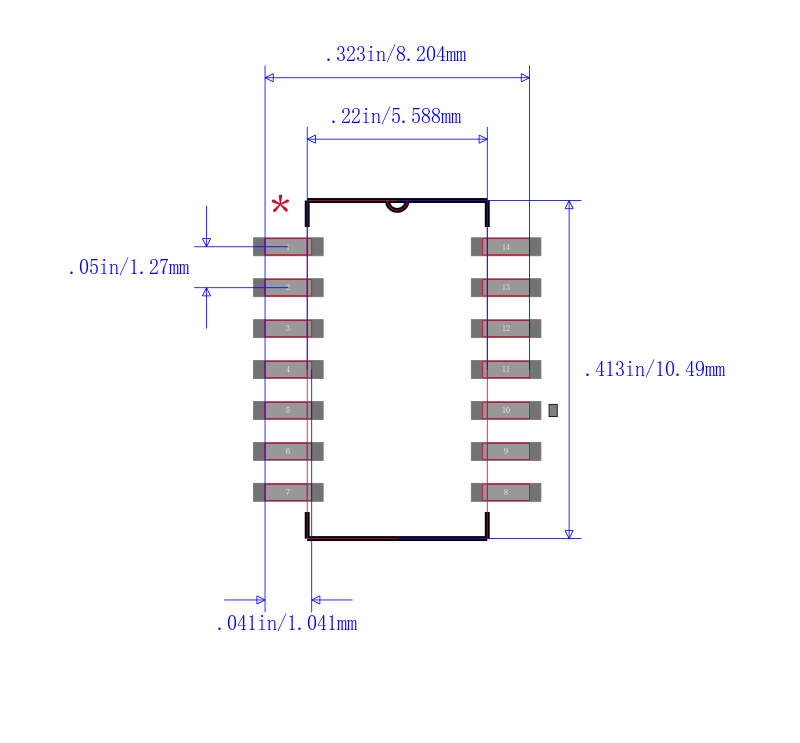

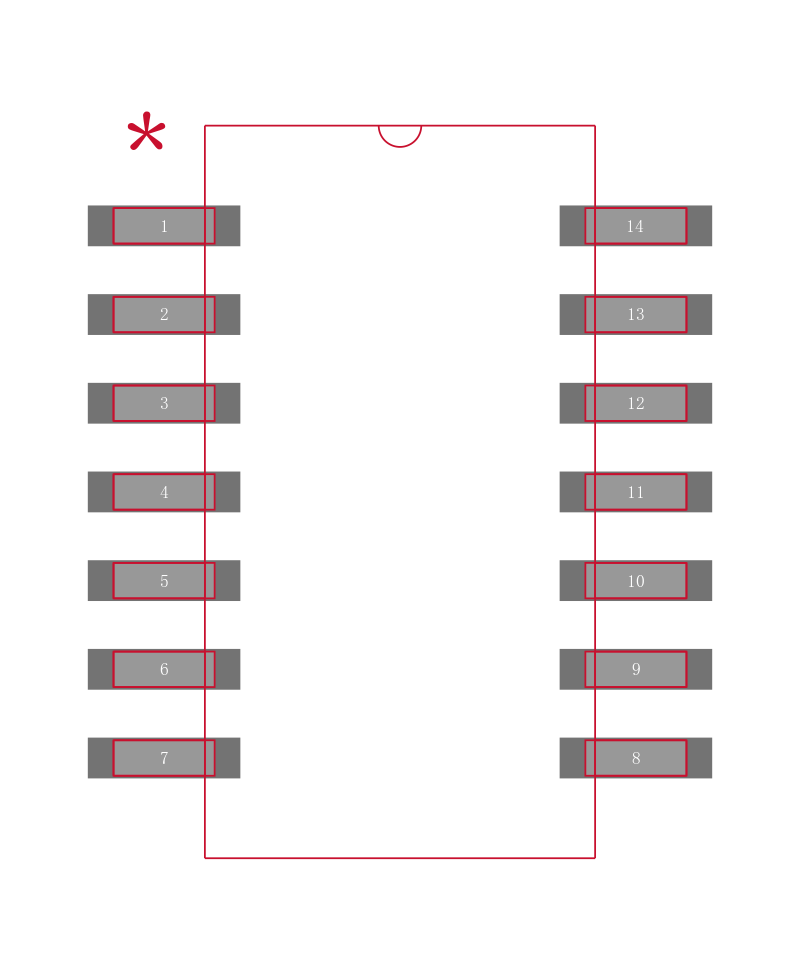

封装 SOP-14
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALVC126NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALVC126NSRG4 德州仪器 | 完全替代 | SN74ALVC126NSR和SN74ALVC126NSRG4的区别 |
SN74ALVC126NSRE4 德州仪器 | 完全替代 | SN74ALVC126NSR和SN74ALVC126NSRE4的区别 |
