SN74LVTZ244DBR

具有三态输出的 3.3V ABT 八路缓冲器/驱动器 20-SSOP -40 to 85

These octal buffers/drivers are designed specifically for low-voltage 3.3-V VCC operation with the capability to provide a TTL interface to a 5-V system environment.

These devices are organized as two 4-bit line drivers with separate output-enable inputs. When is low, the device passes data from the A inputs to the Y outputs. When is high, the outputs are in the high-impedance state.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

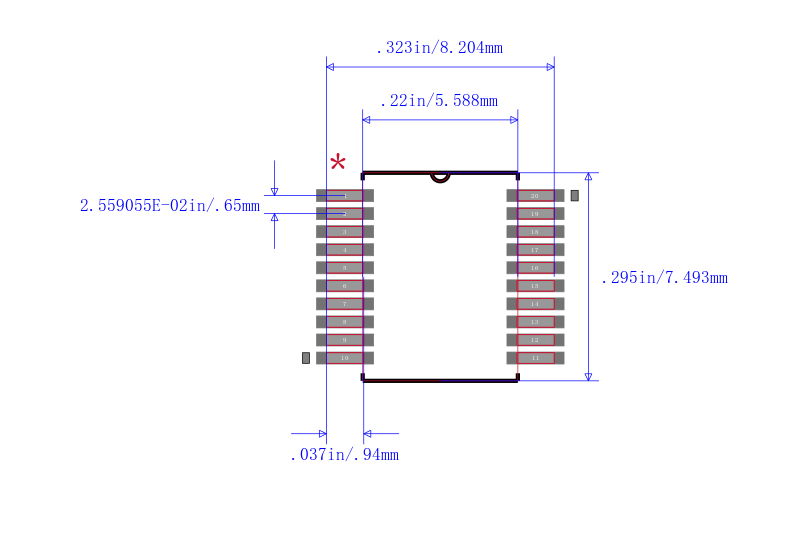

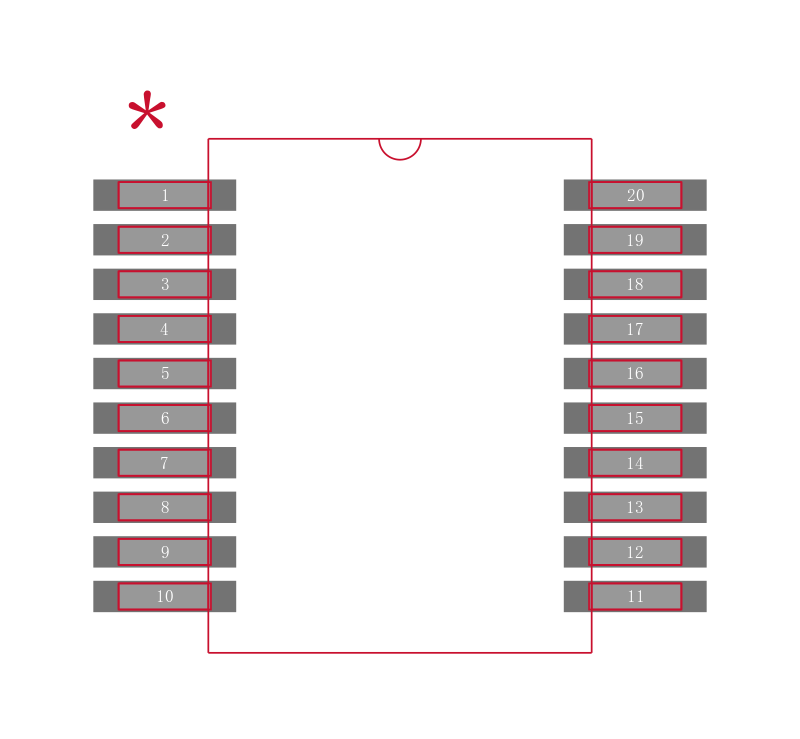

The SN74LVTZ244 is available in "s shrink small-outline package DB, which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area.

The SN54LVTZ244 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74LVTZ244 is characterized for operation from -40°C to 85°C.
