八路缓冲器/驱动器,具有三态输出 OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS
缓冲器,非反向 2 元件 4 位每元件 三态 Output 20-TSSOP
得捷:
IC BUF NON-INVERT 5.5V 20TSSOP
立创商城:
SN74ACT244IPWRG4Q1
德州仪器TI:
Automotive 8-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
贸泽:
Buffers & Line Drivers Auto Cat Octal Bfr Drvrs
艾睿:
Leading the input to the transmission line this SN74ACT244IPWRG4Q1 buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
安富利:
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R
Chip1Stop:
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive 20-Pin TSSOP T/R
Verical:
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive 20-Pin TSSOP T/R
Win Source:
IC BUFF/DVR 3-ST DUAL 20TSSOP
电源电压DC 4.50V ~ 5.50V
输出接口数 8
通道数 8
位数 8
传送延迟时间 9.00 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

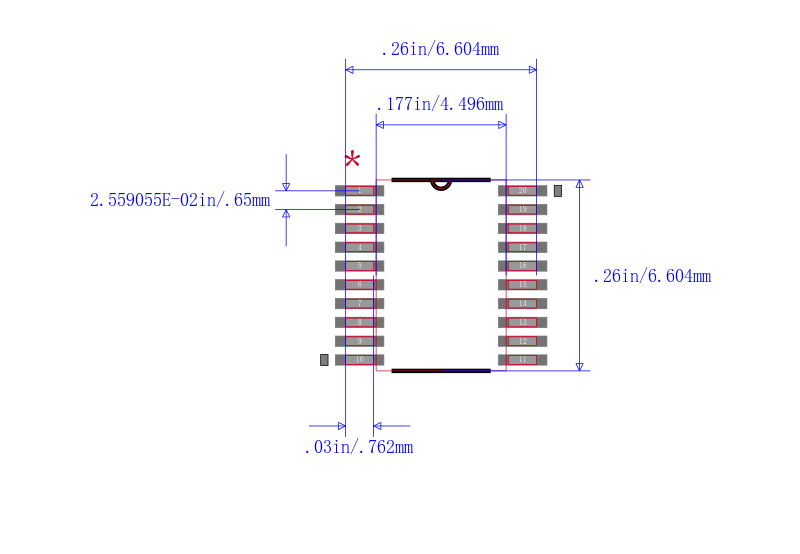

封装 TSSOP-20
长度 6.6 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ACT244IPWRG4Q1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT244IPWRQ1 德州仪器 | 完全替代 | SN74ACT244IPWRG4Q1和SN74ACT244IPWRQ1的区别 |
SN74ACT244PWLE 德州仪器 | 完全替代 | SN74ACT244IPWRG4Q1和SN74ACT244PWLE的区别 |
SN74ACT244PWR 德州仪器 | 类似代替 | SN74ACT244IPWRG4Q1和SN74ACT244PWR的区别 |
