TEXAS INSTRUMENTS SN74LVTH244APWR 缓冲器/驱动器
The is an octal Buffer/Line Driver designed specifically for low-voltage 3.3V VCC operation, but with the capability to provide a TTL interface to a 5V system environment. It is organized as two 4-bit line drivers with separate output-enable OE\ inputs. When OE\ is low, the devices pass data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. It is fully specified for hot-insertion applications using IOFF and power-up 3-state. The IOFF circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
电源电压DC 2.70V ~ 3.60V
输出接口数 8
电路数 8
通道数 8
针脚数 20
位数 8
传送延迟时间 3.50 ns
电压波节 3.30 V, 2.70 V
静态电流 5.00 mA
静态电流 5 mA
逻辑门个数 8
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 20

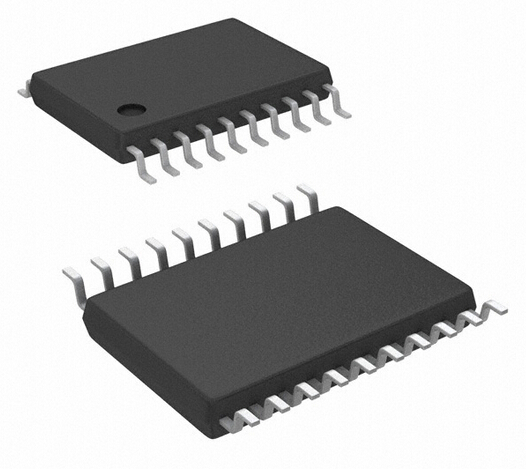

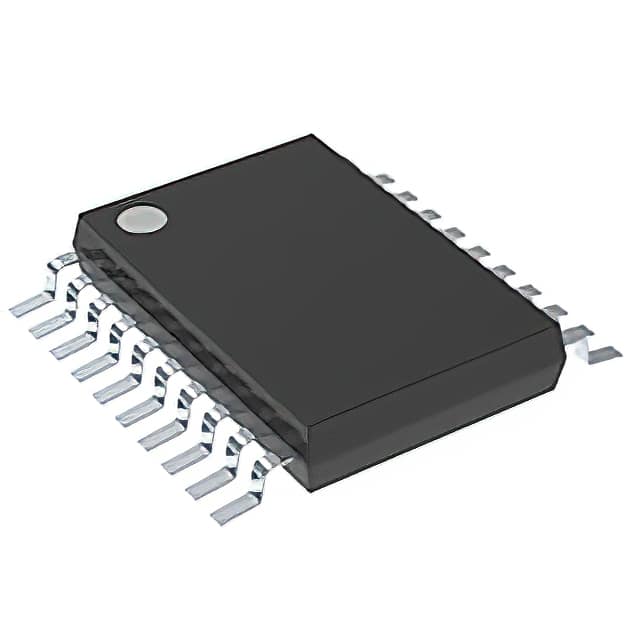

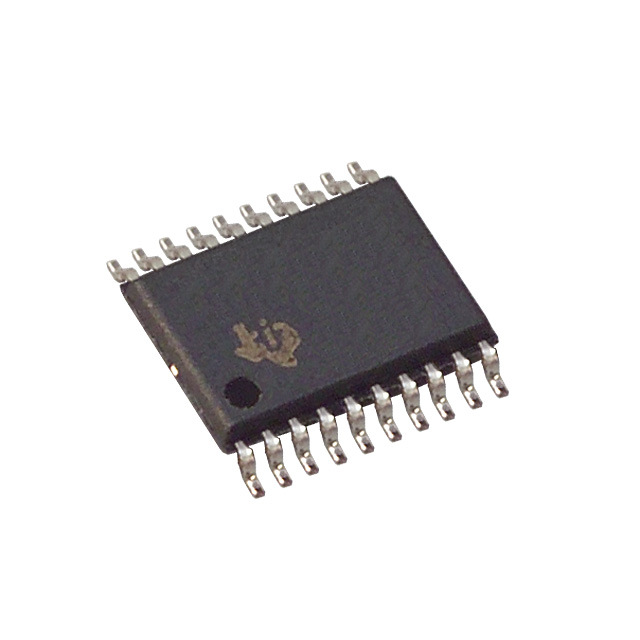

封装 TSSOP-20
长度 6.6 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVTH244APWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVTH244APW 德州仪器 | 完全替代 | SN74LVTH244APWR和SN74LVTH244APW的区别 |
SN74LVTH244ANSR 德州仪器 | 完全替代 | SN74LVTH244APWR和SN74LVTH244ANSR的区别 |
SN74LVTH244APWG4 德州仪器 | 完全替代 | SN74LVTH244APWR和SN74LVTH244APWG4的区别 |
