八路缓冲器/驱动器，具有三态输出 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
Leading the input to the transmission line this buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of 0 °C to 70 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
通道数 8
位数 8
传送延迟时间 6.50 ns
电压波节 5.00 V
输出电流驱动 -234 µA
输入数 8
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

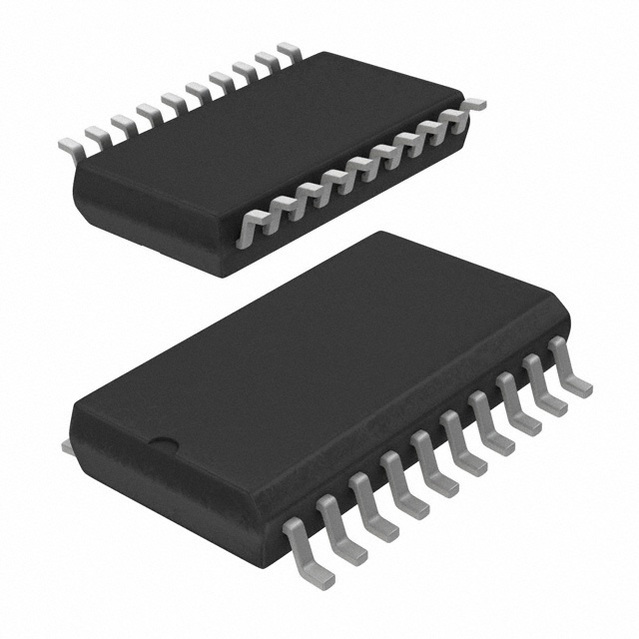

封装 SOP-20
长度 12.6 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-20
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74F244NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74F244DW 德州仪器 | 完全替代 | SN74F244NSR和SN74F244DW的区别 |
SN74F244DWR 德州仪器 | 完全替代 | SN74F244NSR和SN74F244DWR的区别 |
SN74F244NSRE4 德州仪器 | 完全替代 | SN74F244NSR和SN74F244NSRE4的区别 |
