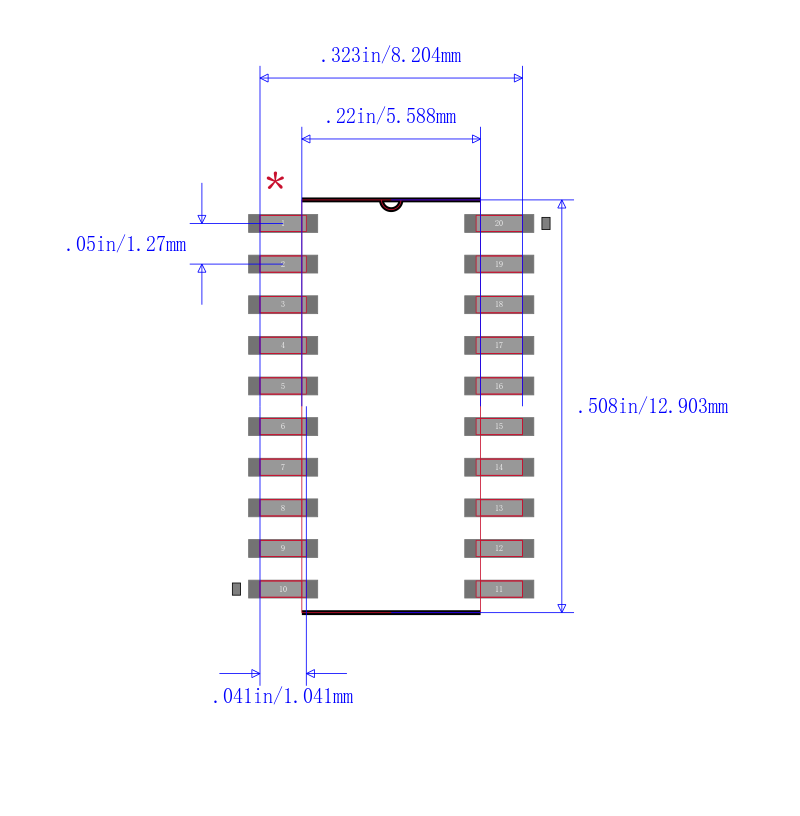

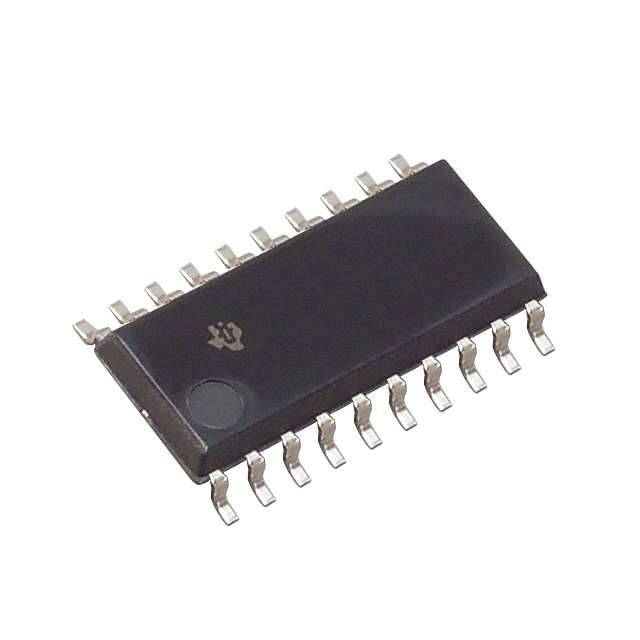

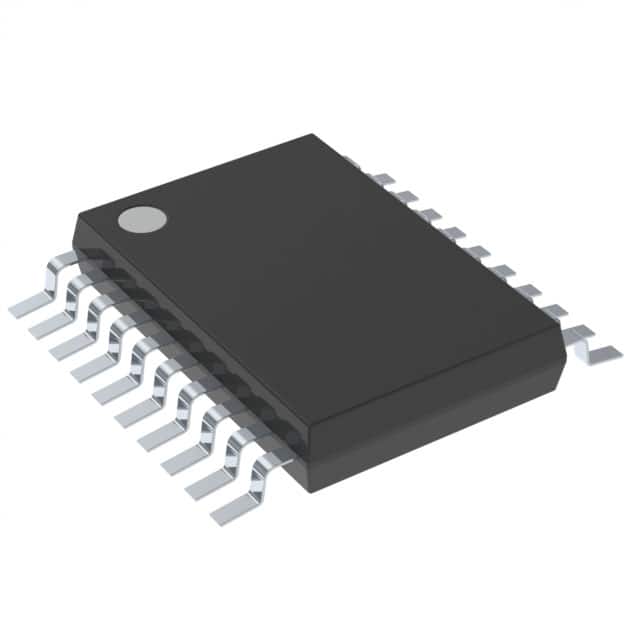

具有三态输出的八路缓冲器和线路/MOS 驱动器 20-SO -40 to 85
These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Together with the "ABT2241 and "ABT2244A, these devices provide combinations of inverting and noninverting outputs, symmetrical active-low output-enable OE\\\\ inputs, and complementary OE and OE\ inputs. These devices feature high fan-out and improved fan-in.
These devices are organized as two 4-bit line drivers with separate OE\ inputs. When OE\ is low, the devices pass inverted data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state.
The outputs, which are designed to sink up to 12 mA, include equivalent 25- series resistors to reduce overshoot and undershoot.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN54ABT2240A is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT2240A is characterized for operation from -40°C to 85°C.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT2240ANSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT2240ADBR 德州仪器 | 完全替代 | SN74ABT2240ANSR和SN74ABT2240ADBR的区别 |
SN74ABT2240ADWR 德州仪器 | 完全替代 | SN74ABT2240ANSR和SN74ABT2240ADWR的区别 |
SN74ABT2240ADW 德州仪器 | 完全替代 | SN74ABT2240ANSR和SN74ABT2240ADW的区别 |
