10位缓冲器/驱动器，具有三态输出 10-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 10 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
电源电压DC 2.00V ~ 3.60V
输出接口数 10
通道数 10
位数 10
传送延迟时间 6.70 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 10
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 2 V
电源电压Min 3.6 V
安装方式 Surface Mount

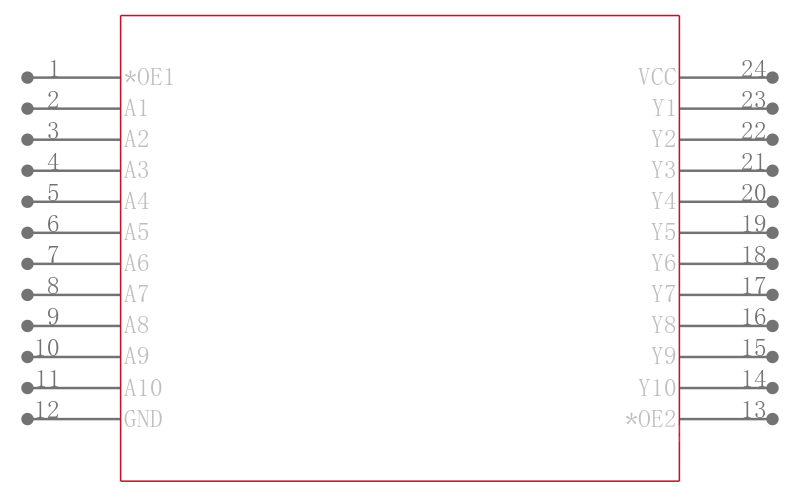

引脚数 24

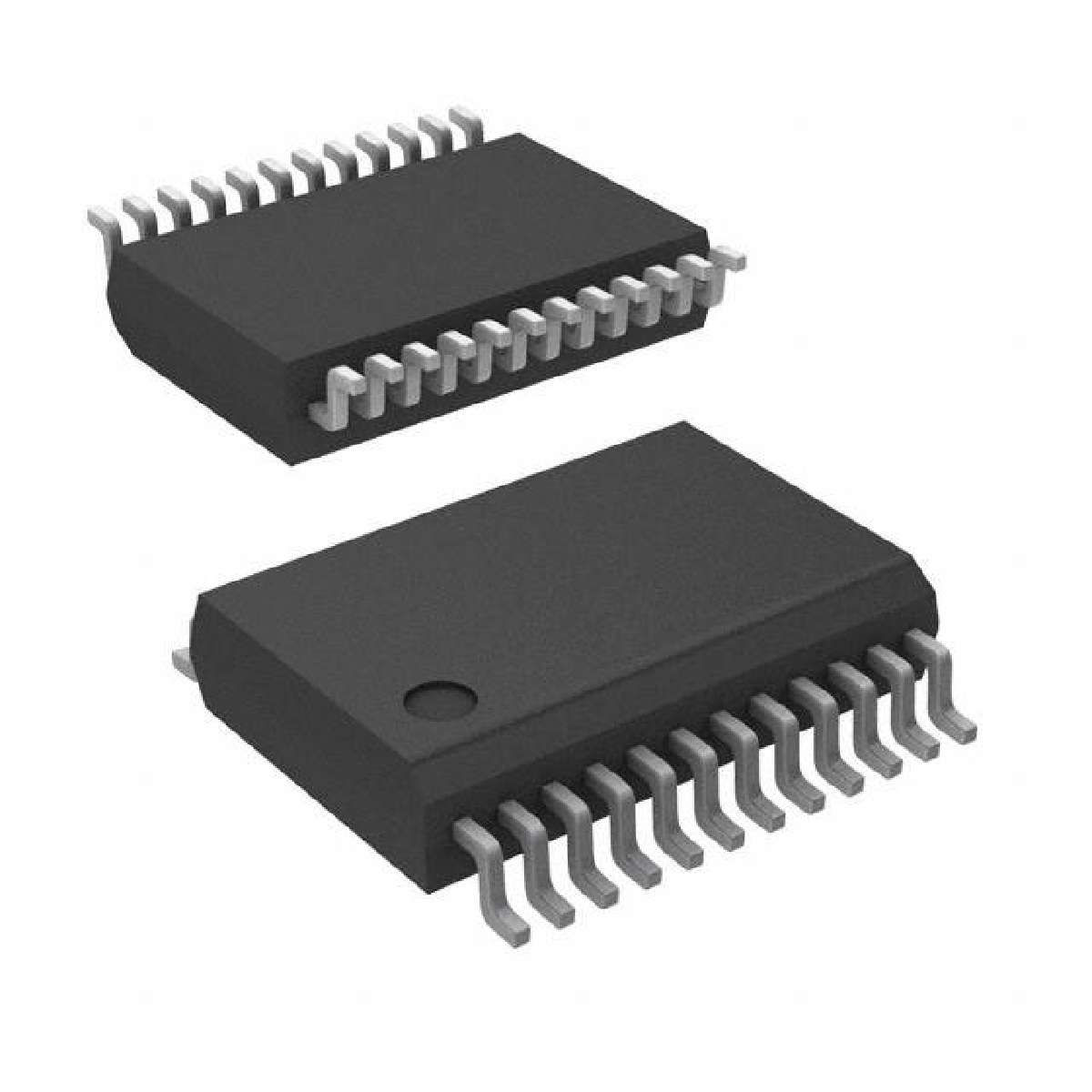

封装 SSOP-24
长度 8.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-24
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC827ADBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC827APWT 德州仪器 | 完全替代 | SN74LVC827ADBR和SN74LVC827APWT的区别 |
SN74LVC827ADGVR 德州仪器 | 完全替代 | SN74LVC827ADBR和SN74LVC827ADGVR的区别 |
SN74LVC827ADBRE4 德州仪器 | 完全替代 | SN74LVC827ADBR和SN74LVC827ADBRE4的区别 |
