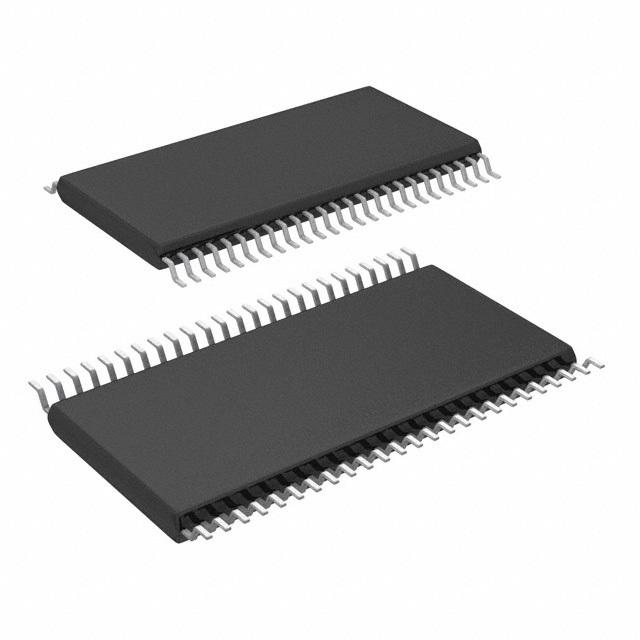

16位缓冲器/驱动器,具有三态输出 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
缓冲器,非反向 4 元件 4 位每元件 三态 Output 48-TSSOP
得捷:
IC BUF NON-INVERT 5.5V 48TSSOP
立创商城:
SN74ABT16244ADGGR
德州仪器TI:
16-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
e络盟:
缓冲器/线路驱动器, 74ABT16244, 4.5V至5.5V, TSSOP-48
艾睿:
By driving the input to the transmission line this SN74ABT16244ADGGR buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 16 channels per chip.
安富利:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin TSSOP T/R
Chip1Stop:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin TSSOP T/R
Verical:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin TSSOP T/R
Newark:
# TEXAS INSTRUMENTS SN74ABT16244ADGGR Buffer / Line Driver, 74ABT16244, 4.5 V to 5.5 V, TSSOP-48
Win Source:
IC BUFF/DVR TRI-ST 16BIT 48TSSOP
电源电压DC 4.50V ~ 5.50V
输出接口数 16
通道数 16
针脚数 48
位数 16
传送延迟时间 4.10 ns
电压波节 5.00 V
输出电流驱动 -500 µA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 48
封装 TSSOP-48
封装 TSSOP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 自动化与过程控制, 信号处理, 时钟与计时
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT16244ADGGR TI 德州仪器 | 当前型号 | 当前型号 |
74FCT162245ATPACT 德州仪器 | 完全替代 | SN74ABT16244ADGGR和74FCT162245ATPACT的区别 |
74FCT162H244ATPACT 德州仪器 | 完全替代 | SN74ABT16244ADGGR和74FCT162H244ATPACT的区别 |
CY74FCT16245TPVC 德州仪器 | 完全替代 | SN74ABT16244ADGGR和CY74FCT16245TPVC的区别 |
