具有三态输出的 16 位缓冲器/驱动器 48-TSSOP -40 to 85
The SN54ABT16540 and SN74ABT16540A are inverting 16-bit buffers/drivers composed of two 8-bit sections with separate output-enable gates. These buffers and bus drivers provide a high-performance bus interface for wide data paths.
The 3-state control gate is a 2-input AND gate with active-low inputs so that if either output-enable or input is high, all corresponding outputs are in the high-impedance state.
To ensure the high-impedance state during power up or power down, should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN54ABT16540 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT16540A is characterized for operation from -40°C to 85°C.
电源电压DC 4.50V ~ 5.50V
输出接口数 16
电路数 2
通道数 16
位数 6
传送延迟时间 4.30 ns
电压波节 5.00 V
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

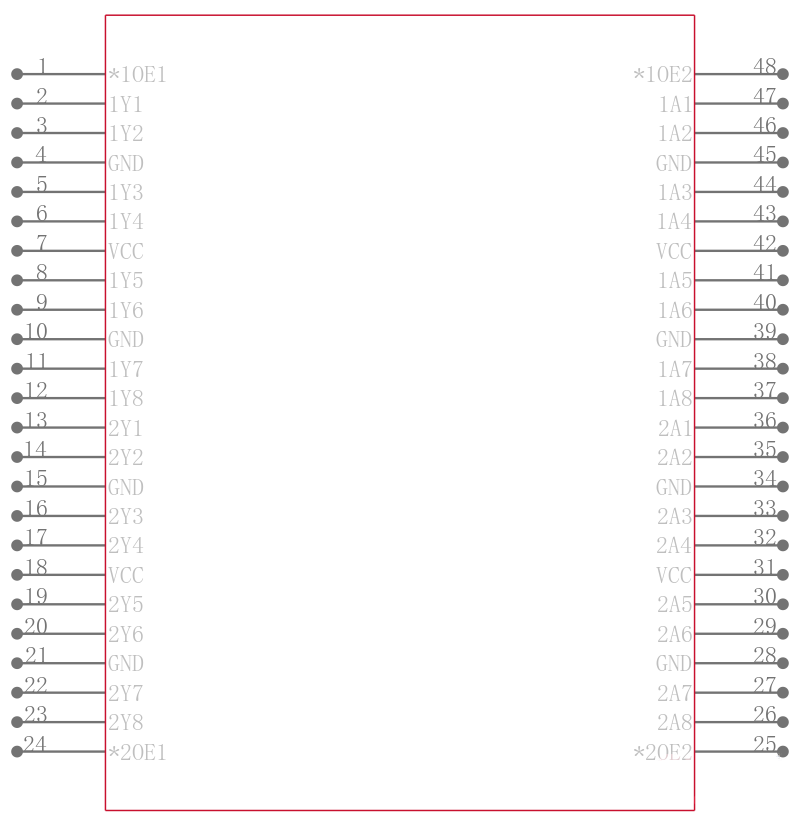

引脚数 48

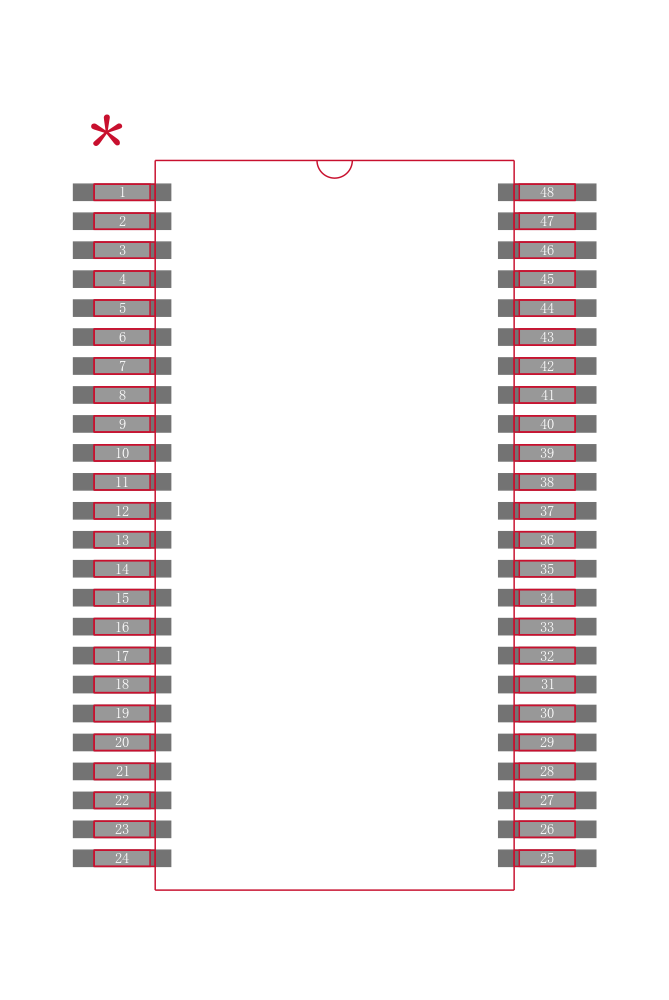

封装 TSSOP-48
封装 TSSOP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT16540ADGGR TI 德州仪器 | 当前型号 | 当前型号 |
74ABT16540ADGGRG4 德州仪器 | 完全替代 | SN74ABT16540ADGGR和74ABT16540ADGGRG4的区别 |
74ABT16540ADGVRE4 德州仪器 | 完全替代 | SN74ABT16540ADGGR和74ABT16540ADGVRE4的区别 |
74ABT16540ADGGRE4 德州仪器 | 完全替代 | SN74ABT16540ADGGR和74ABT16540ADGGRE4的区别 |
