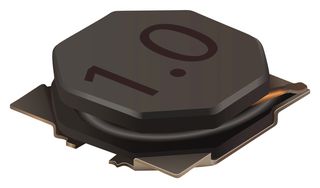

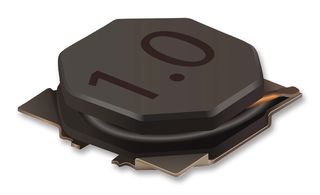

SRN4012 系列半磁性屏蔽式功率电感器SRN4012 系列具有半屏蔽结构和微型尺寸 薄型:1.2 mm 电感范围:0.47 至 22 μH 额定电流:最大 3.2 A 应用:直流/直流转换器、笔记本电脑、数码摄像机、HDD、手机 电视和 LCD 显示屏 ### Bourns 非标准表面安装电感器(扼流圈)
SRN4012 系列半磁性屏蔽式功率器
Bourns SRN4012 系列半屏蔽式功率电感器具有 0.47 至 22uH 的电感范围和高达 3.2 A 的额定电流,工作温度范围为 -40°C 至 +125°C。这些电感器适用于汽车行业且符合 AEC-Q200 标准
### 应用
汽车系统:驾驶员辅助、信息、照明、娱乐
直流 - 直流转换器
电源
电视
智能手机
HDD
### 认可
AEC-Q200
得捷:
FIXED IND 1UH 2.2A 45 MOHM SMD
欧时:
### SRN4012 系列半磁性屏蔽式功率电感器SRN4012 系列具有半屏蔽结构和微型尺寸 薄型:1.2 mm 电感范围:0.47 至 22 μH 额定电流:最大 3.2 A 应用:直流/直流转换器、笔记本电脑、数码摄像机、HDD、手机 电视和 LCD 显示屏 ### Bourns 非标准表面安装电感器(扼流圈)
贸泽:
固定电感器 1uH 20% SMD 4012
艾睿:
Make any circuit look clean and compact using this power SRN4012-1R0M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 45m Ohm. It has an inductance of 1u H. This product is 4.3 mm long, 1.2 mm tall and 4.3 mm deep. Its test frequency is 100K Hz. It has a tolerance of 20%. This device is made with wirewound technology.
Verical:
Inductor Power Semi-Shielded Wirewound 1uH 20% 100KHz Ferrite 2.2A 0.045Ohm DCR 1515 T/R
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRN4012-1R0M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SRN4012T-1R0M 伯恩斯 | 类似代替 | SRN4012-1R0M和SRN4012T-1R0M的区别 |
