具有三态输出的增强型产品八路缓冲器/驱动器 20-SOIC -55 to 125
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出接口数 8
通道数 8
传送延迟时间 8.50 ns
输出电流驱动 50.0 µA
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20

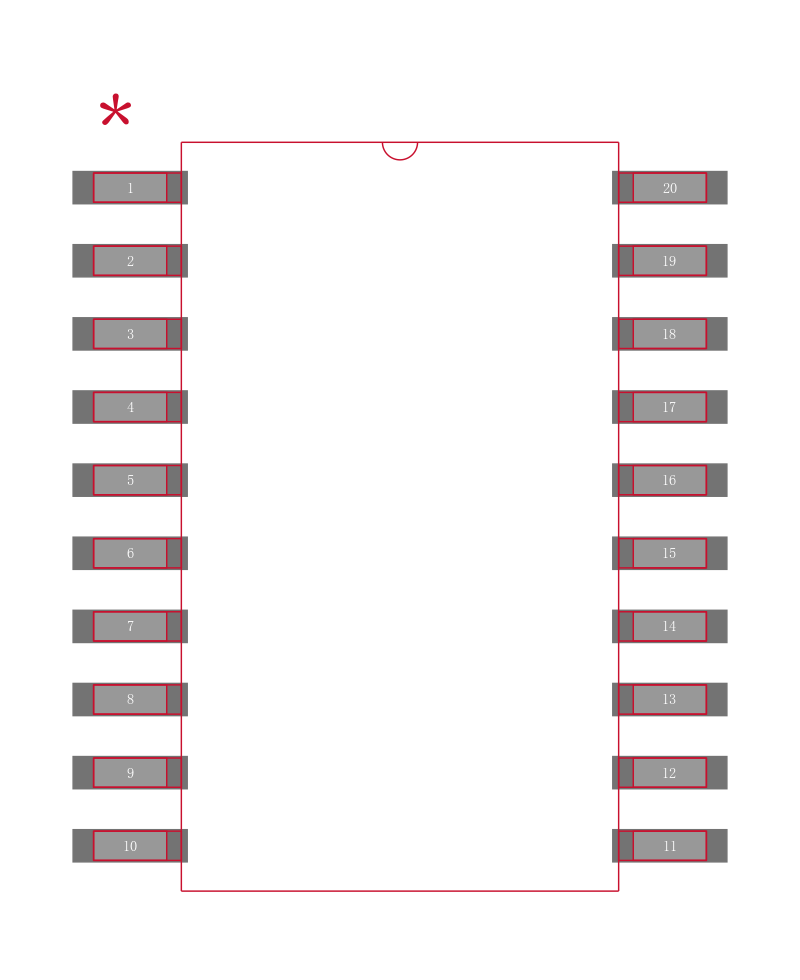

封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV244AMDWREP TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV244ADBR 德州仪器 | 类似代替 | SN74LV244AMDWREP和SN74LV244ADBR的区别 |
SN74LV244ADW 德州仪器 | 类似代替 | SN74LV244AMDWREP和SN74LV244ADW的区别 |
SN74LV244ADWR 德州仪器 | 类似代替 | SN74LV244AMDWREP和SN74LV244ADWR的区别 |
