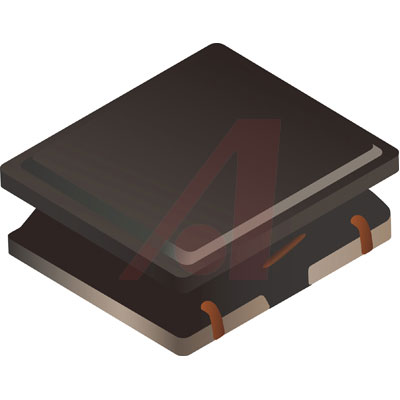

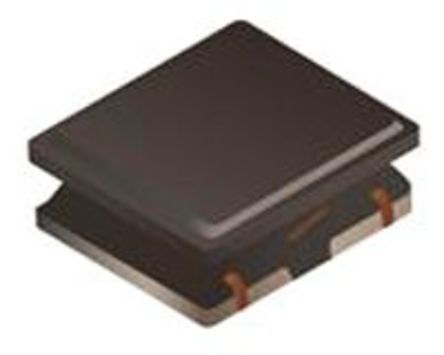

SRN2510-R24M

BOURNS  SRN2510-R24M  表面贴装功率电感器, SRN2510系列, 240 nH, ± 20%, 半屏蔽, 0.042 ohm, 3.1 A

SRN2510 系列半磁性屏蔽式功率器

Bourns SRN2510 系列提供各种尺寸，具有半屏蔽结构和微型尺寸。

**特点和优势：**

薄型：1 mm

电感范围：0.24 μH 至 2.2 μH

额定电流：最大 3.1 A

应用：直流-直流转换器、笔记本电脑、数码摄像机、HDD、手机

电视和 LCD 显示器

欧时:
Bourns SRN2510 系列 屏蔽 铁氧体芯材 240 nH 绕线贴片电感器 SRN2510-R24M, ±20%容差, 3.1A Idc

立创商城:
240nH ±20% 3.1A 42mΩ

得捷:
FIXED IND 240NH 3.1A 42 MOHM SMD

e络盟:
BOURNS  SRN2510-R24M  表面贴装功率电感器, SRN2510系列, 240 nH, ± 20%, 半屏蔽, 0.042 ohm, 3.1 A

艾睿:
This power SRN2510-R24M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 210M Hz. This product is 2.7 mm long, 1.02 mm tall and 2.35 mm deep. It has a tolerance of 20%. This device is made with wirewound technology. It has an inductance of 240n H. This SMD inductor has a maximum DC current of 3.1 A with a maximum resistance of 42m Ohm.

Allied Electronics:
SMD Semi-Shielded Power Inductor; .24uH; 3.1A; 20% 2510

Verical:
Inductor Power Semi-Shielded Wirewound 0.24uH 20% 1MHz 8Q-Factor Ferrite 3.1A 0.042Ohm DCR 1008 T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 240nH 20% 1MHz 8Q-Factor Ferrite 3.1A 42mOhm DCR 1008 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 240nH 20% 1MHz 8Q-Factor Ferrite 3.1A 42mOhm DCR 1008 T/R
