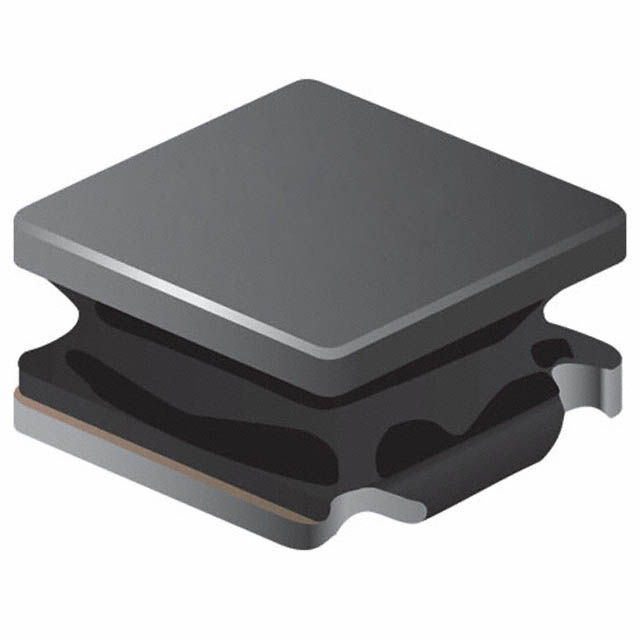

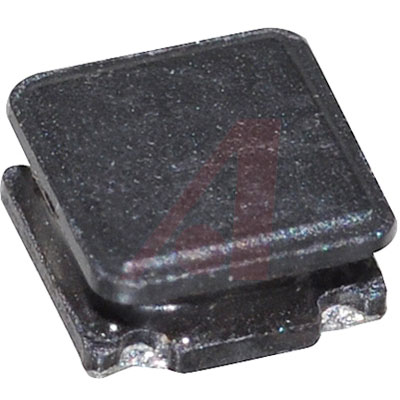

SRN3015-1R5Y

BOURNS  SRN3015-1R5Y.  电感, 1.5uH, 2.1A, ±30%, 130MHZ

SRN3015 系列半磁性屏蔽线绕扼流圈

Bourns SRN3015 系列微型 SMD 半屏蔽功率器具有 1 至 47uH 的电感范围和高达 2.2A 的额定电流，工作温度为 -40°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。

### 应用

汽车系统：驾驶员辅助系统、信息、照明、娱乐

直流 - 直流转换器

电源

电视

数字视频

### 认可

AEC-Q200

得捷:
FIXED IND 1.5UH 2.1A 66 MOHM SMD

欧时:
Bourns SRN3015 系列 屏蔽 铁氧体芯材 1.5 μH 绕线贴片电感器 SRN3015-1R5Y, ±30%容差, 2.1A Idc

立创商城:
1.5uH ±30% 2.1A 66mΩ

e络盟:
# BOURNS  SRN3015-1R5Y.  电感, 1.5uH, 2.1A, ±30%, 130MHZ

艾睿:
This power SRN3015-1R5Y surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 3.1 mm long, 1.5 mm tall and 3.1 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 130M Hz. It has an inductance of 1.5u H. This SMD inductor has a maximum DC current of 2.1 A with a maximum resistance of 66m Ohm. This device utilizes wirewound technology.

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 1.5 uH; Tol 30%; Cur-Rtg 2.1 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 1.5uH 30% 1MHz Ferrite 2.1A 1212 T/R

Chip1Stop:
Inductor Power Semi-Shielded Wirewound 1.5uH 30% 1MHz 10Q-Factor Ferrite 2.1A 66mOhm DCR 1212 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 1.5uH 30% 1MHz 16Q-Factor Ferrite 2.1A 0.066Ohm DCR 1212 T/R

Newark:
# BOURNS  SRN3015-1R5Y  Surface Mount Power Inductor, SRN3015 Series, 1.5 µH, 2.1 A, 2 A, Shielded, 0.066 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 1.5uH 30% 1MHz 10Q-Factor Ferrite 2.1A 66mOhm DCR 1212 T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 1.5uH 30% 1MHz 10Q-Factor Ferrite 2.1A 66mOhm DCR 1212 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 1.5uH 30% 1MHz 10Q-Factor Ferrite 2.1A 66mOhm DCR 1212 T/R
