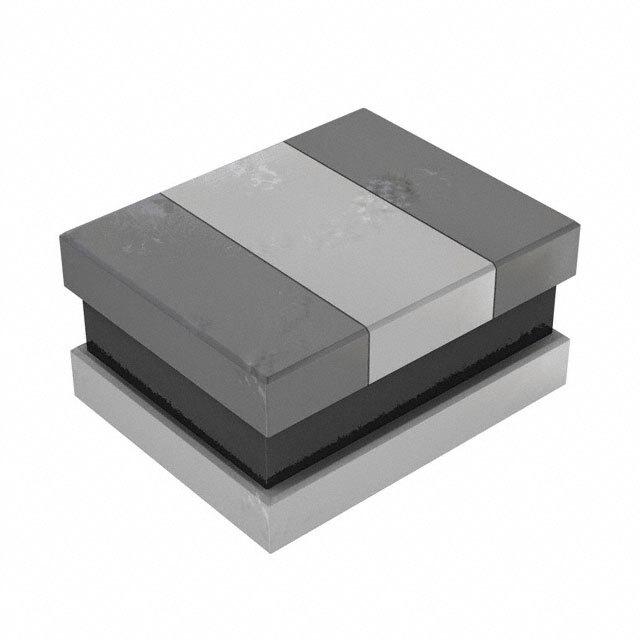

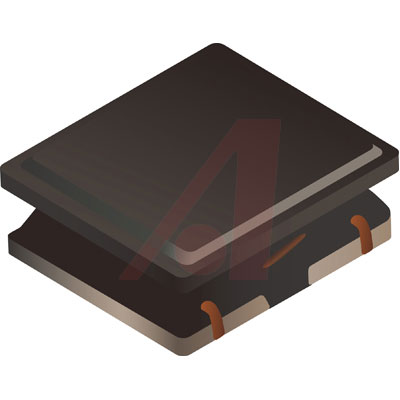

BOURNS SRN2510-R47M 表面贴装功率电感器, SRN2510系列, 470 nH, ± 20%, 半屏蔽, 0.042 ohm, 3.1 A
SRN2510 系列半磁性屏蔽式功率器
Bourns SRN2510 系列提供各种尺寸,具有半屏蔽结构和微型尺寸。
**特点和优势:**
薄型:1 mm
电感范围:0.24 μH 至 2.2 μH
额定电流:最大 3.1 A
应用:直流-直流转换器、笔记本电脑、数码摄像机、HDD、手机
电视和 LCD 显示器
欧时:
Bourns SRN2510 系列 屏蔽 铁氧体芯材 470 nH 绕线贴片电感器 SRN2510-R47M, ±20%容差, 3.1A Idc
立创商城:
470nH ±20% 3.1A 42mΩ
得捷:
FIXED IND 470NH 3.1A 42 MOHM SMD
e络盟:
功率电感SMD, 470 nH, 3.1 A, 半屏蔽, 3.2 A, SRN2510系列, 2.5mm x 2mm x 1.02mm
艾睿:
This power SRN2510-R47M surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with wirewound technology. It has an inductance of 470n H. This product is 2.7 mm long, 1.02 mm tall and 2.35 mm deep. It has a tolerance of 20%. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 200M Hz. This SMD inductor has a maximum DC current of 3.1 A with a maximum resistance of 42m Ohm.
Allied Electronics:
SMD Semi-Shielded Power Inductor; .47uH; 3.1A; 20% 2510
Verical:
Inductor Power Semi-Shielded Wirewound 0.47uH 20% 1MHz 8Q-Factor Ferrite 3.1A 0.042Ohm DCR 1008 T/R
Newark:
# BOURNS SRN2510-R47M Surface Mount Power Inductor, SRN2510 Series, 470 nH, 3.1 A, 3.2 A, Semishielded, 0.042 ohm
Online Components:
Inductor Power Semi-Shielded Wirewound 470nH 20% 1MHz 8Q-Factor Ferrite 3.1A 42mOhm DCR 1008 T/R
Electro Sonic:
Inductor Power Semi-Shielded Wirewound 470nH 20% 1MHz 8Q-Factor Ferrite 3.1A 42mOhm DCR 1008 T/R
额定电流 3.1 A
容差 ±20 %
电感 470 nH
自谐频率 200 MHz
Q值 8
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤42 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.042 Ω
安装方式 Surface Mount
封装 1008
长度 2.5 mm
高度 1.02 mm
封装 1008
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 电源管理, 工业, 成像, 便携式器材, 视频和目视, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
