六路同相驱动器 14-SO 0 to 70
description
These devices contain six independent noninverting drivers. They perform the Boolean function Y = A.
The SN54ALS1034 and SN54AS1034A are characterized for operation over the full military temperature range of −55°C to 125°C. The SN74ALS1034 and SN74AS1034A are characterized for operation from 0°C to 70°C.
• ′AS1034A Offer High Capacitive-Drive Capability
• Noninverting Drivers
• Package Options Include Plastic
Small-Outline D Packages, Ceramic Chip
Carriers FK, and Standard Plastic N and Ceramic J 300-mil DIPs
电源电压DC 4.50V ~ 5.50V
输出接口数 6
通道数 6
位数 6
传送延迟时间 8.00 ns
电压波节 5.00 V
逻辑门个数 6
输出电流驱动 -625 µA
输入数 6
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

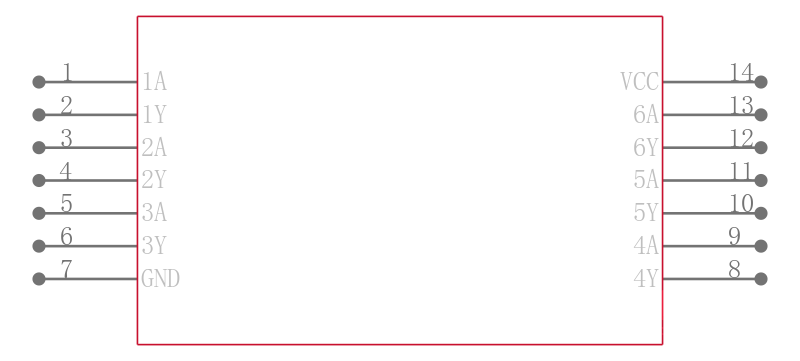

引脚数 14

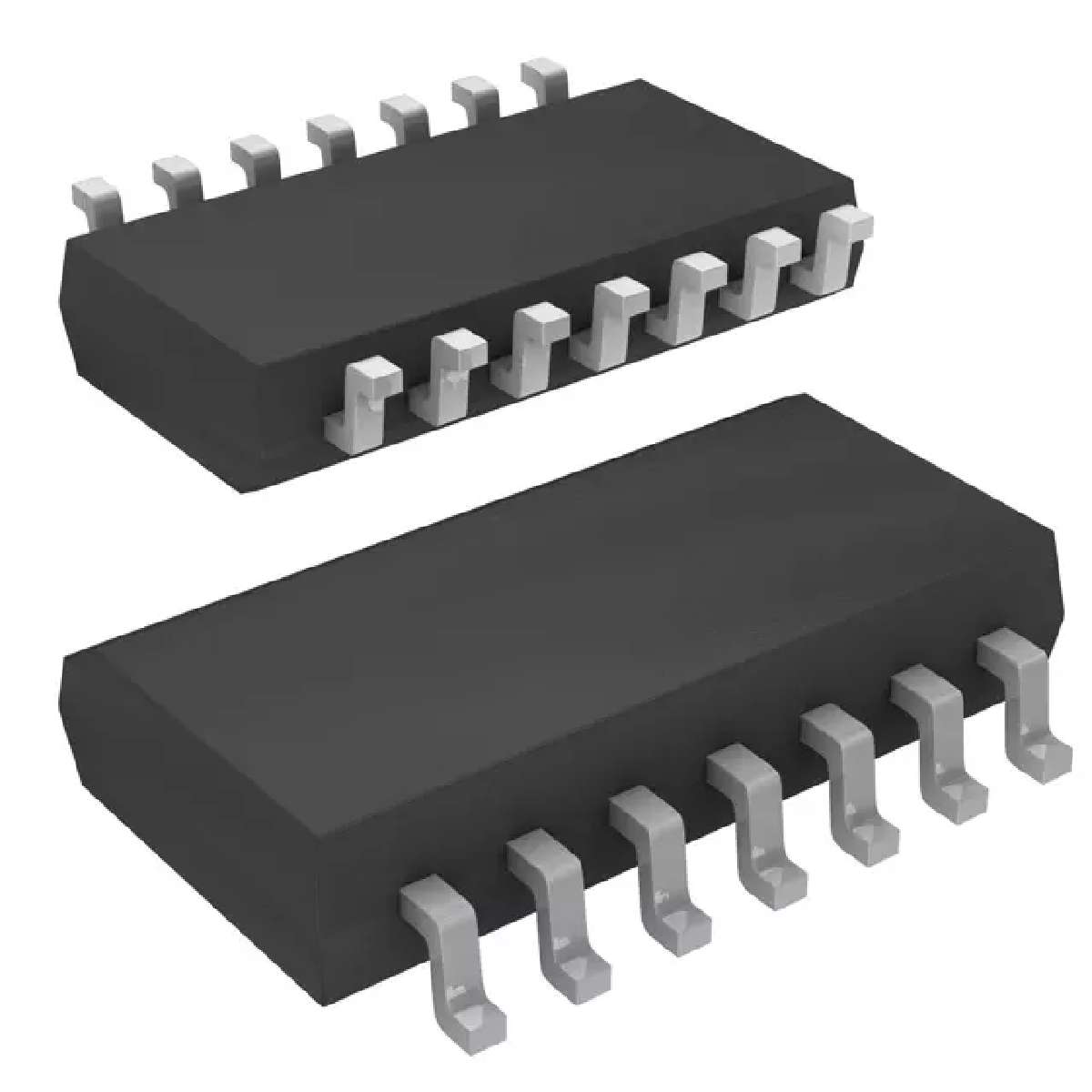

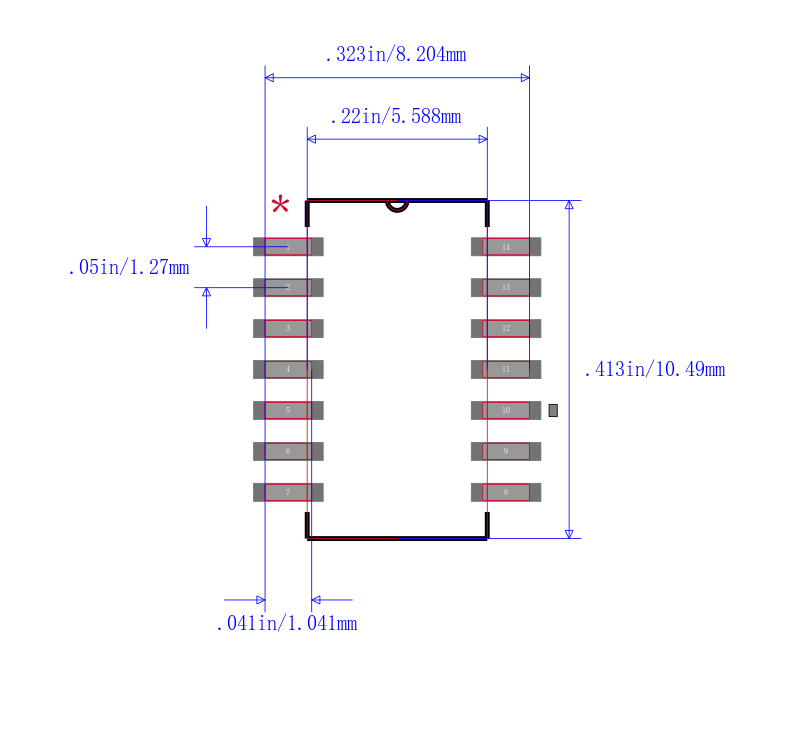

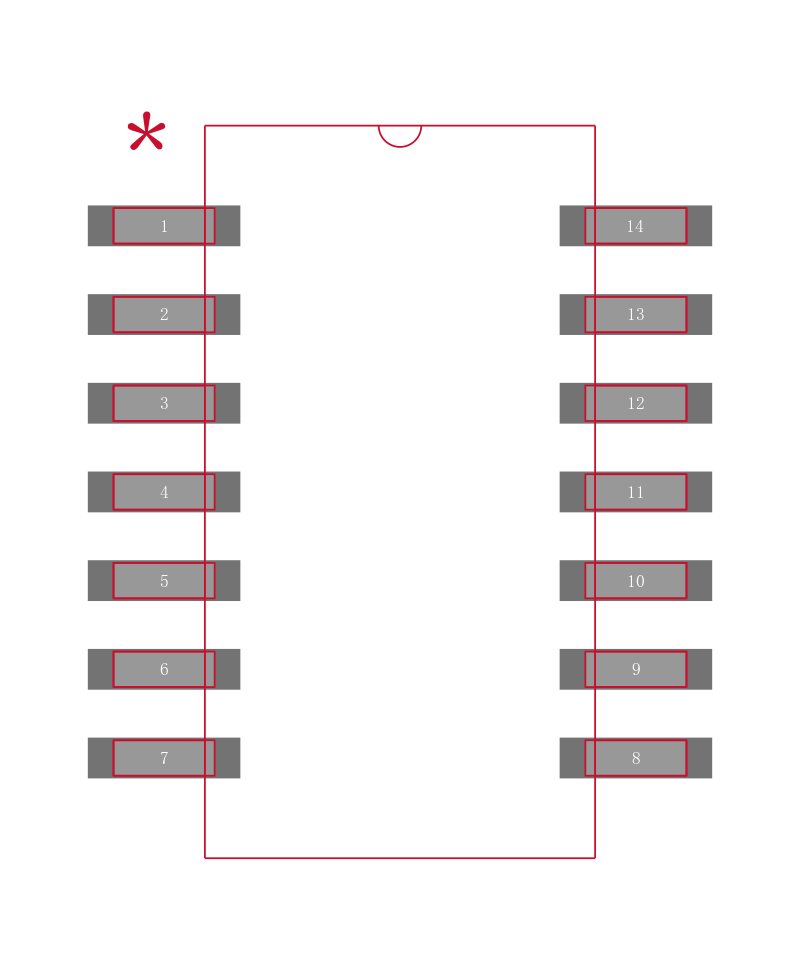

封装 SOP-14
封装 SOP-14
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALS1034NSR TI 德州仪器 | 当前型号 | 当前型号 |
DM74ALS1034M 飞兆/仙童 | 功能相似 | SN74ALS1034NSR和DM74ALS1034M的区别 |
