SRN3015-3R3M

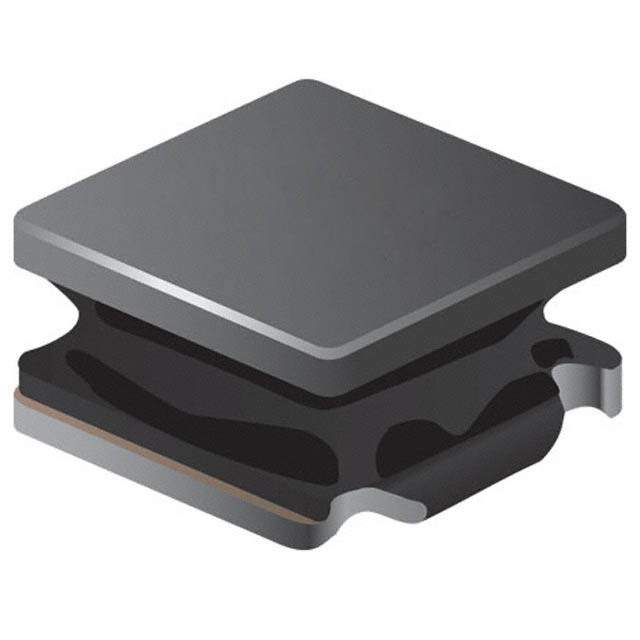

SRN3015 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN3015 Series Miniature SMD Semi-shielded Power Inductors. Component height of 1.5mm Inductance range from 1 to 100μH Rated current of up to 2.35A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

SRN3015 系列半磁性屏蔽线绕扼流圈

Bourns SRN3015 系列微型 SMD 半屏蔽功率器具有 1 至 47uH 的电感范围和高达 2.2A 的额定电流，工作温度为 -40°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。

### 应用

汽车系统：驾驶员辅助系统、信息、照明、娱乐

直流 - 直流转换器

电源

电视

数字视频

### 认可

AEC-Q200

得捷:
FIXED IND 3.3UH 1.6A 112MOHM SMD

立创商城:
3.3uH ±20% 1.6A 75Ω

欧时:
Bourns SRN3015 系列 屏蔽 铁氧体芯材 3.3 μH 绕线贴片电感器 SRN3015-3R3M, ±20%容差, 1.6A Idc

贸泽:
固定电感器 3.3uH 20% SMD 3015

e络盟:
电感, 屏蔽, 3.3UH, 1.4A, SMD

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRN3015-3R3M surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 3.1 mm long, 1.5 mm tall and 3.1 mm deep. It has an inductance of 3.3u H. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.6 A with a maximum resistance of 112m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 75M Hz. This device is made with wirewound technology.

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 3.3 uH; Tol 20%; Cur-Rtg 1.6 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 3.3uH 20% 1MHz Ferrite 1.6A 1212 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 1MHz 14Q-Factor Ferrite 1.6A 0.112Ohm DCR 1212 T/R

Newark:
# BOURNS  SRN3015-3R3M  Surface Mount Power Inductor, SRN3015 Series, 3.3 µH, 1.6 A, 1.4 A, Shielded, 0.112 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 1MHz 10Q-Factor Ferrite 1.6A 112mOhm DCR 1212 T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 1MHz 10Q-Factor Ferrite 1.6A 112mOhm DCR 1212 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 1MHz 10Q-Factor Ferrite 1.6A 112mOhm DCR 1212 T/R
