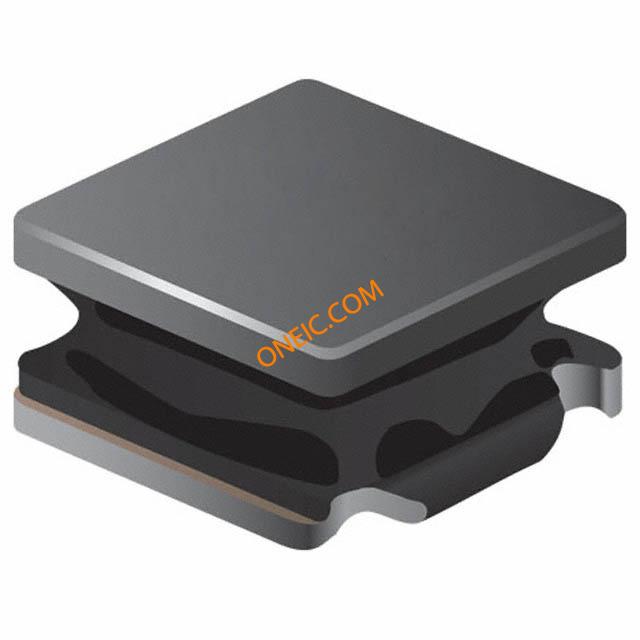

SRN3015-4R7M

BOURNS  SRN3015-4R7M.  电感, 4.7uH, 1.4A, ±20%, 65MHZ

SRN3015 系列半磁性屏蔽线绕扼流圈

Bourns SRN3015 系列微型 SMD 半屏蔽功率器具有 1 至 47uH 的电感范围和高达 2.2A 的额定电流，工作温度为 -40°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。

### 应用

汽车系统：驾驶员辅助系统、信息、照明、娱乐

直流 - 直流转换器

电源

电视

数字视频

### 认可

AEC-Q200

得捷:
FIXED IND 4.7UH 1.4A 136MOHM SMD

欧时:
### SRN3015 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN3015 Series Miniature SMD Semi-shielded Power Inductors. Component height of 1.5mm Inductance range from 1 to 100μH Rated current of up to 2.35A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
4.7uH ±20% 1.4A 65Ω

e络盟:
电感, 4.7uH, 1.4A, ±20%, 65MHZ

艾睿:
This power SRN3015-4R7M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 65M Hz. This SMD inductor has a maximum DC current of 1.4 A with a maximum resistance of 136m Ohm. This product is 3.1 mm long, 1.5 mm tall and 3.1 mm deep. It has a tolerance of 20%. It has an inductance of 4.7u H. This device utilizes wirewound technology.

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 4.7 uH; Tol 20%; Cur-Rtg 1.4 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 4.7uH 20% 1MHz Ferrite 1.4A 1212 T/R

Chip1Stop:
Ind Power Semi-Shielded Wirewound 4.7uH 20% 1MHz Ferrite 1.4A 1212 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 4.7uH 20% 1MHz 14Q-Factor Ferrite 1.4A 0.136Ohm DCR 1212 T/R

Newark:
# BOURNS  SRN3015-4R7M  Surface Mount Power Inductor, SRN3015 Series, 4.7 µH, 1.4 A, 1.2 A, Shielded, 0.136 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 4.7uH 20% 1MHz 10Q-Factor Ferrite 1.4A 136mOhm DCR 1212 T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 4.7uH 20% 1MHz 10Q-Factor Ferrite 1.4A 136mOhm DCR 1212 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 4.7uH 20% 1MHz 10Q-Factor Ferrite 1.4A 136mOhm DCR 1212 T/R
