20位缓冲器/驱动器,具有三态输出 20-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
Buffer, Non-Inverting 2 Element 10 Bit per Element 3-State Output 56-SSOP
得捷:
IC BUF NON-INVERT 5.5V 56SSOP
立创商城:
SN74ABT162827ADLR
德州仪器TI:
20-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
艾睿:
By driving the input to the transmission line this SN74ABT162827ADLR buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 20 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Buffer/Line Driver 20-CH Non-Inverting 3-ST BiCMOS 56-Pin SSOP T/R
Chip1Stop:
Buffer/Line Driver 20-CH Non-Inverting 3-ST BiCMOS 56-Pin SSOP T/R
Verical:
Buffer/Line Driver 20-CH Non-Inverting 3-ST BiCMOS 56-Pin SSOP T/R
电源电压DC 4.50V ~ 5.50V
输出接口数 20
通道数 20
位数 20
传送延迟时间 4.70 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
输入数 20
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

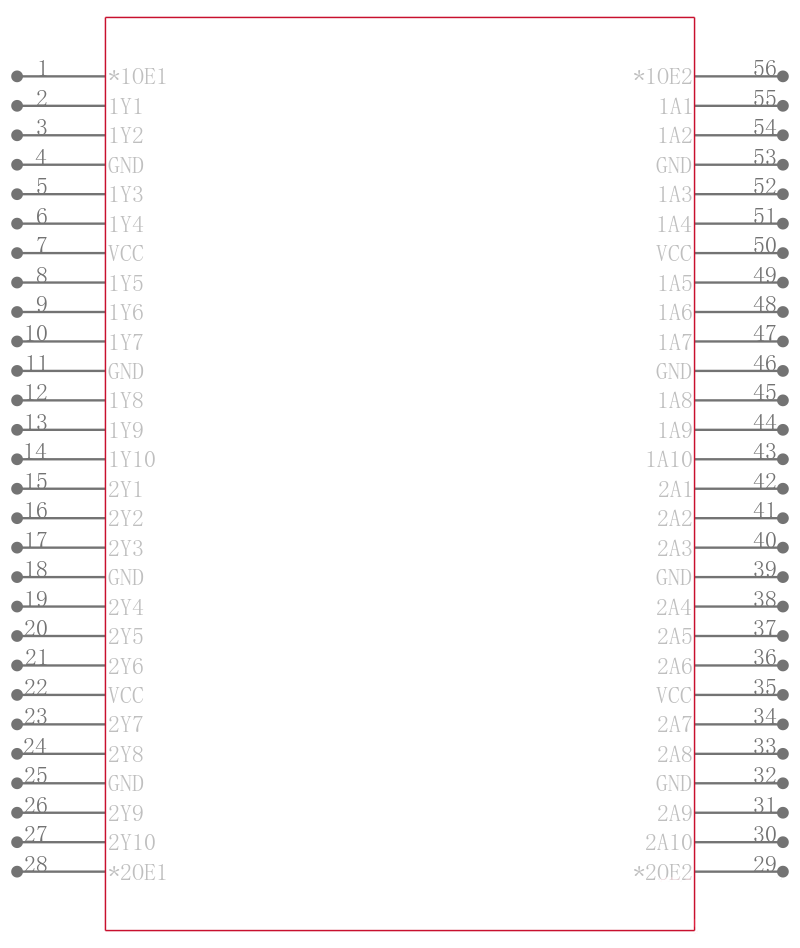

引脚数 56

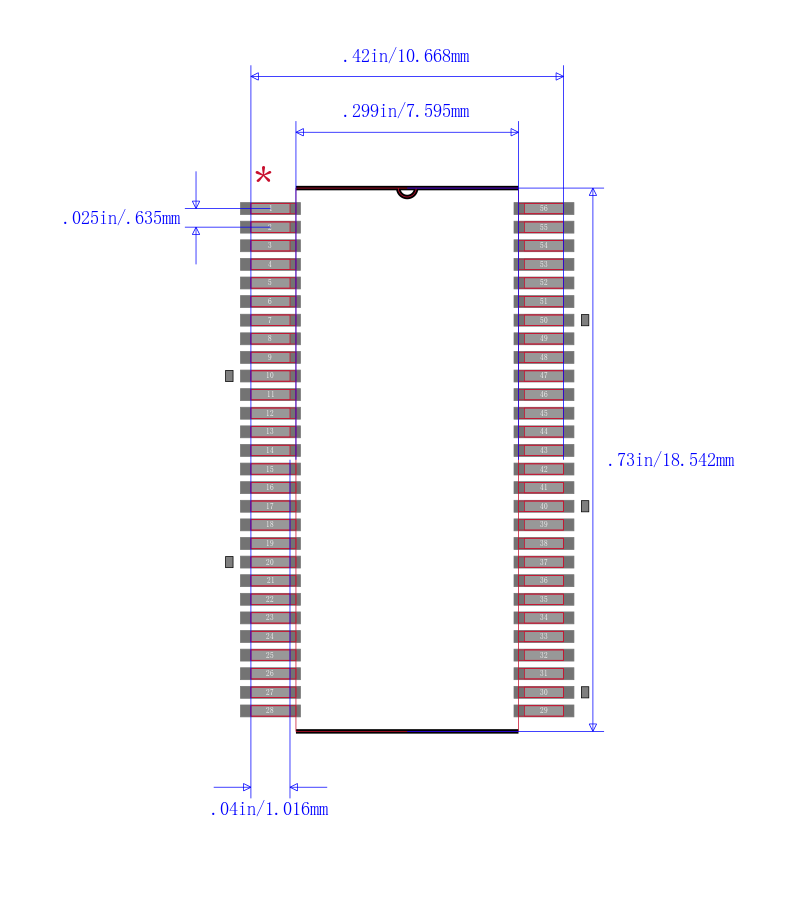

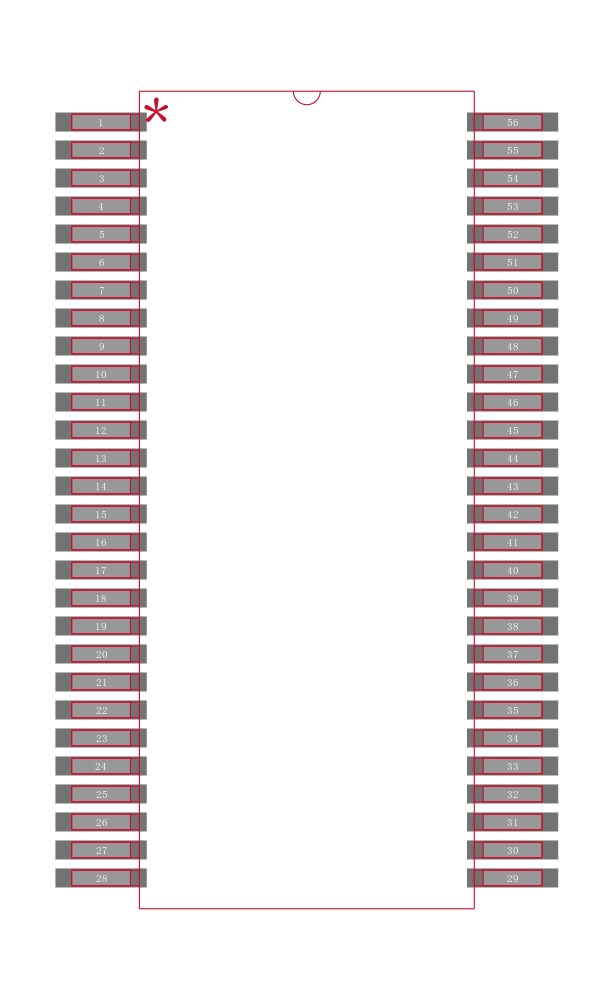

封装 SSOP-56
封装 SSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT162827ADLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT162827ADL 德州仪器 | 完全替代 | SN74ABT162827ADLR和SN74ABT162827ADL的区别 |
74ABT162827ADLRG4 德州仪器 | 完全替代 | SN74ABT162827ADLR和74ABT162827ADLRG4的区别 |
SN74ABT162827ADLG4 德州仪器 | 完全替代 | SN74ABT162827ADLR和SN74ABT162827ADLG4的区别 |
