具有三态输出的 32 位缓冲器/驱动器 96-LFBGA -40 to 85
This 32-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74LVCH32244A is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
The device can be used as eight 4-bit buffers, four 8-bit buffers, two 16-bit buffers, or one 32-bit buffer. It provides true outputs and symmetrical active-low output-enable OE\ inputs.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
电源电压DC 2.00V ~ 3.60V
输出接口数 32
通道数 32
位数 32
传送延迟时间 4.40 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 32
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount

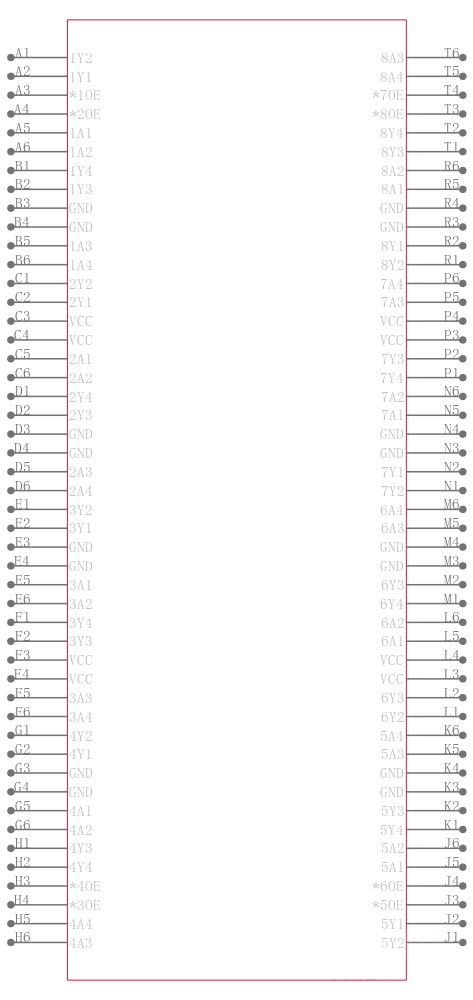

引脚数 96

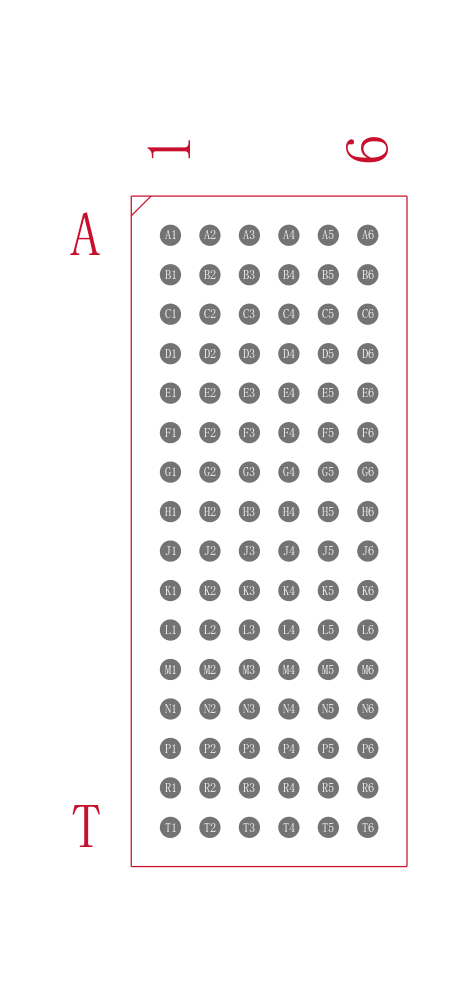

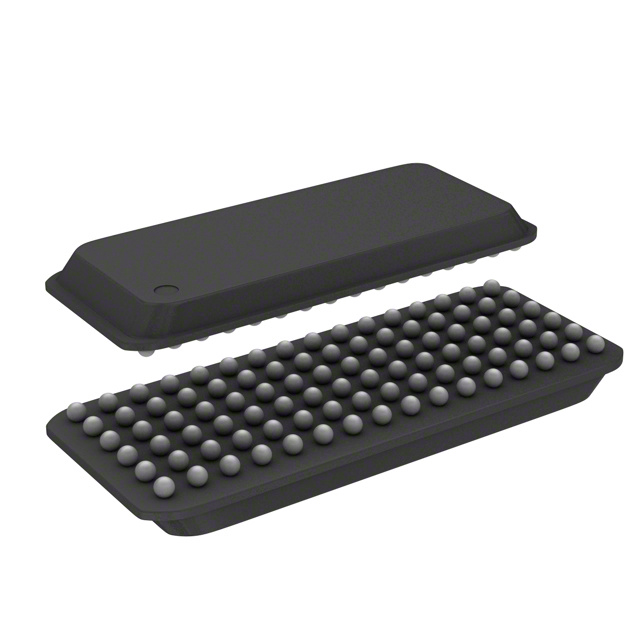

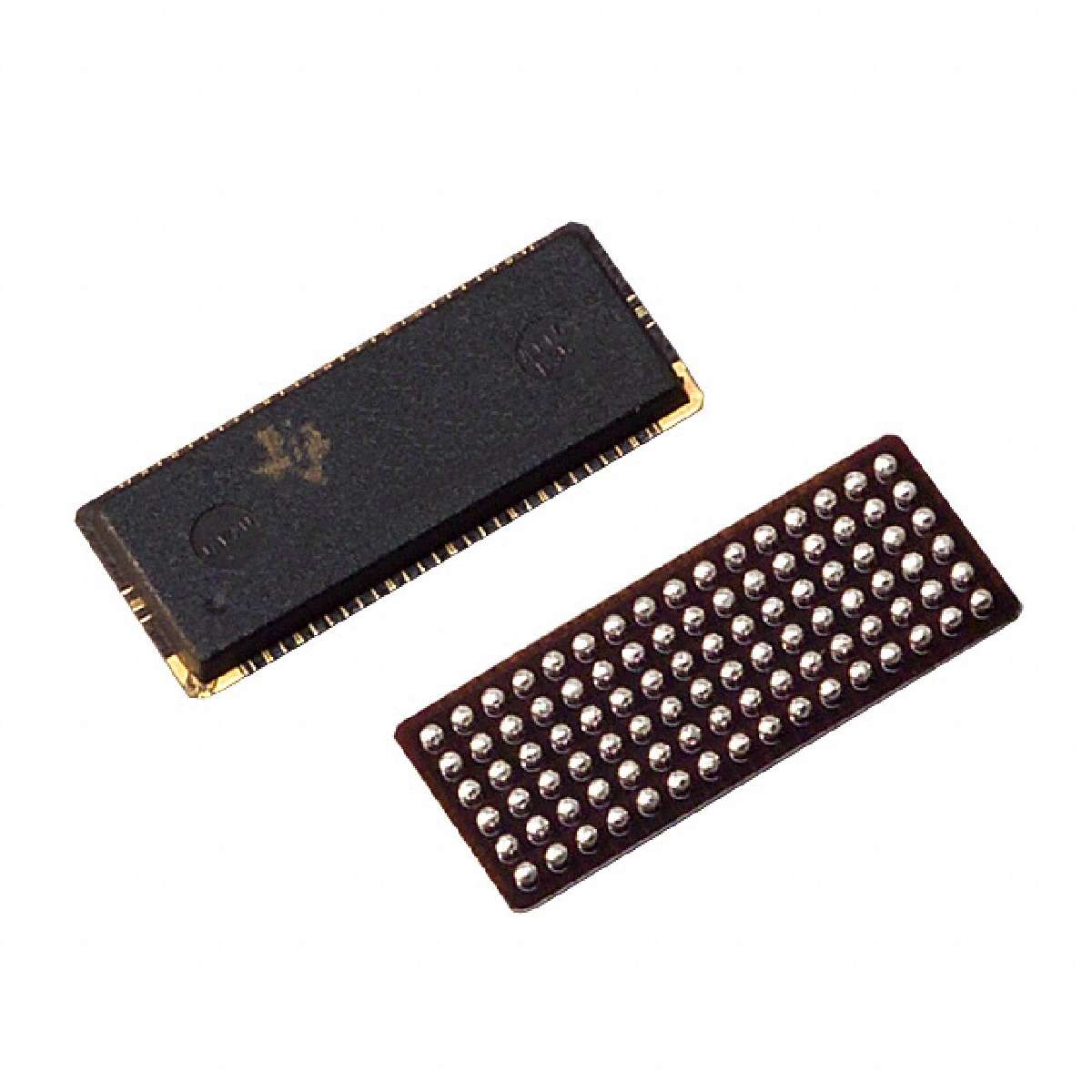

封装 BGA-96

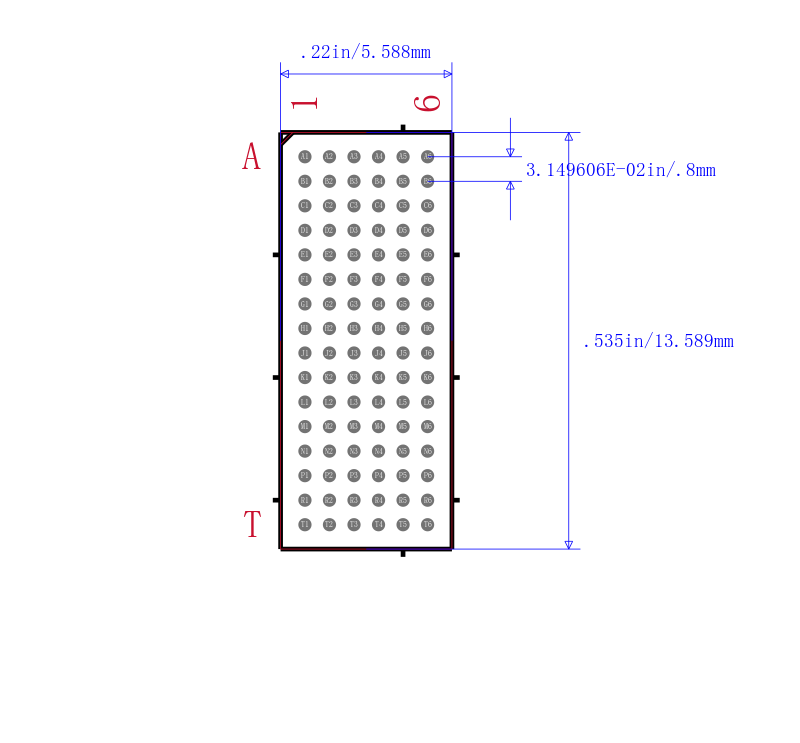

长度 13.5 mm
宽度 5.5 mm
高度 0.85 mm
封装 BGA-96
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVCH32244AZKER TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC32244ZKER 德州仪器 | 类似代替 | SN74LVCH32244AZKER和SN74LVC32244ZKER的区别 |
SN74LVCH32244AGKER 德州仪器 | 类似代替 | SN74LVCH32244AZKER和SN74LVCH32244AGKER的区别 |
SN74LVCZ32244AZKER 德州仪器 | 类似代替 | SN74LVCH32244AZKER和SN74LVCZ32244AZKER的区别 |
