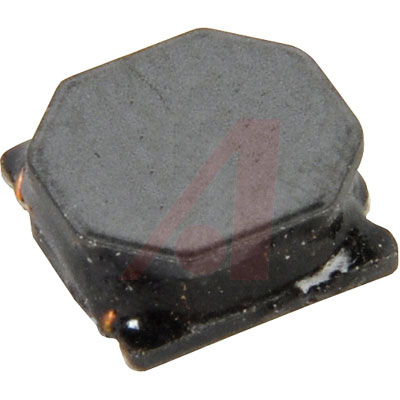

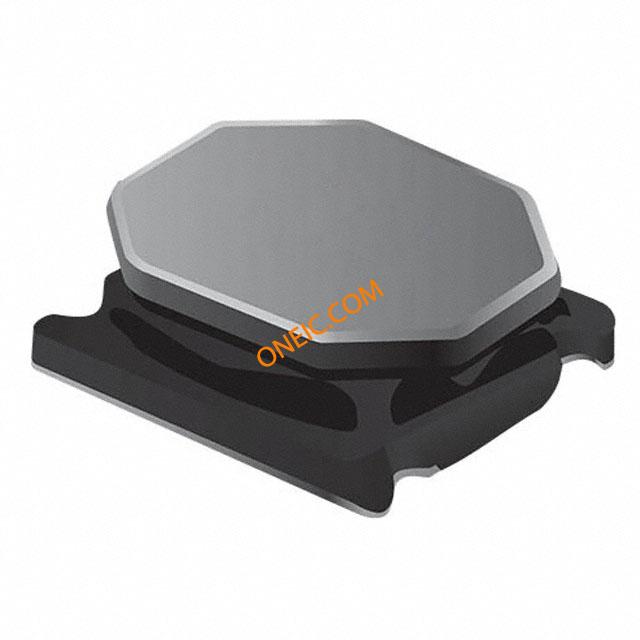

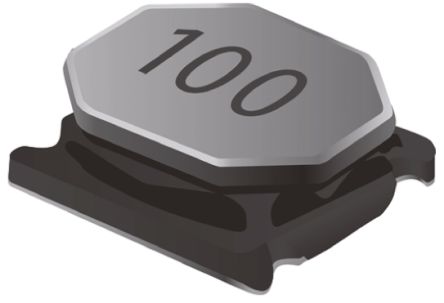

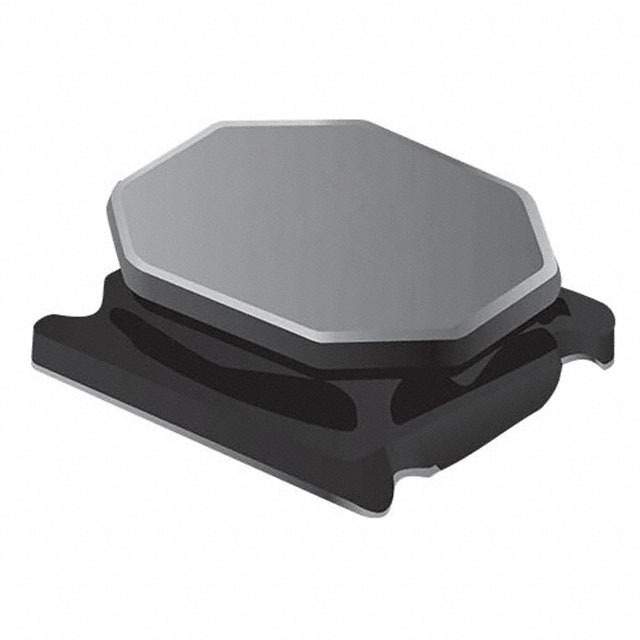

SRN5020-3R3M

BOURNS  SRN5020-3R3M.  电感, 半屏蔽, 3.3UH, 2.4A, 20%, SMD

SRN5020 系列半磁性屏蔽线绕扼流圈

SRN5020 系列微型贴片式半屏蔽功率器。

元件高度为 2.0mm

电感范围：1 至 33μH

额定电流高达 3.6A

应用包括：直流/直流转换器；笔记本电脑；数字摄像机；电视、LCD 显示屏

立创商城:
3.3uH ±20% 2.4A 58mΩ

得捷:
FIXED IND 3.3UH 2.4A 58 MOHM SMD

欧时:
Bourns SRN5020 系列 屏蔽 铁氧体芯材 3.3 μH 绕线贴片电感器 SRN5020-3R3M, ±20%容差, 2.4A 有效值 Idc

e络盟:
电感, 半屏蔽, 3.3UH, 2.4A, 20%, SMD

艾睿:
Make any circuit look clean and compact using this power SRN5020-3R3M surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -25 °C to 120 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 40MTyp Hz. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. This device utilizes wirewound technology. It has an inductance of 3.3u H. This SMD inductor has a maximum DC current of 2.4 A with a maximum resistance of 58m Ohm.

Allied Electronics:
Inductor; Semi-Shielded; Ind 3.3 uH; Tol 20%; Cur-Rtg 2.4 A; SMT; 2020

安富利:
Ind Power Semi-Shielded Wirewound 3.3uH 20% 100KHz Ferrite 2.4A 2020 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz 11Q-Factor Ferrite 2.4A 0.058Ohm DCR 2020 T/R

Newark:
# BOURNS  SRN5020-3R3M  Surface Mount Power Inductor, SRN5020 Series, 3.3 µH, 2.4 A, 2.4 A, Semishielded, 0.058 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz 11Q-Factor Ferrite 2.4A 58mOhm DCR 2020 T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz 11Q-Factor Ferrite 2.4A 58mOhm DCR 2020 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz 11Q-Factor Ferrite 2.4A 58mOhm DCR 2020 T/R
