SDR0302-100ML

BOURNS  SDR0302-100ML  功率电感, 10uH 0.8A 20% 34MHZ

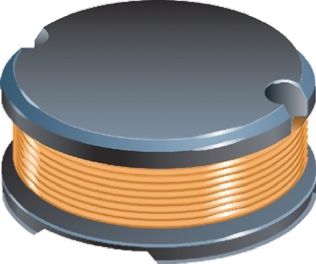

SDR0302 系列线绕扼流圈

Bourns SDR0302 系列贴片式功率器为薄型，仅 2.5mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

得捷:
FIXED IND 10UH 800MA 250MOHM SMD

欧时:
Bourns SDR0302 系列 铁氧体芯材 10 μH 绕线贴片电感器 SDR0302-100ML, ±20%容差, 900mA Idc Q:18

立创商城:
10uH ±20% 800mA 250mΩ

贸泽:
固定电感器 10uH 20% SMD 0302

e络盟:

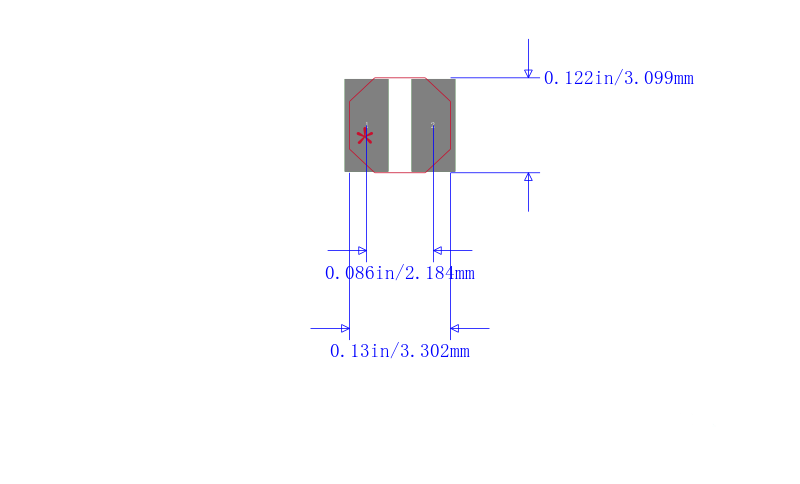

功率电感SMD, 10 µH, 800 mA, 非屏蔽, 900 mA, SDR0302 Series, 3mm x 2.8mm x 2.5mm

艾睿:
Save valuable space on a PCB with this power SDR0302-100ML surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 250m Ohm. It has a tolerance of 20%. It has an inductance of 10u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 34M Hz. This product is 3.3 mm long, 2.8 mm tall and 3.1 mm deep.

Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 10uH; 20%; 0.8A

安富利:
Ind Power Wirewound 10uH 20% 1KHz 18Q-Factor Ferrite 800mA T/R

Chip1Stop:
Inductor Power Wirewound 10uH 20% 1KHz 18Q-Factor Ferrite 800mA 250mOhm DCR Automotive T/R

Verical:
Inductor Power Wirewound 10uH 20% 100KHz 18Q-Factor Ferrite 0.8A 0.25Ohm DCR Automotive T/R

Newark:
# BOURNS  SDR0302-100ML  Surface Mount Power Inductor, SDR0302 Series, 10 µH, 800 mA, 900 mA, Unshielded, 0.25 ohm

MASTER:
Inductor Power Wirewound 10uH 20% 100KHz 18Q-Factor Ferrite 800mA 250mOhm DCR Automotive T/R

Online Components:
Inductor Power Wirewound 10uH 20% 100KHz 18Q-Factor Ferrite 800mA 250mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 10uH 20% 100KHz 18Q-Factor Ferrite 800mA 250mOhm DCR Automotive T/R
